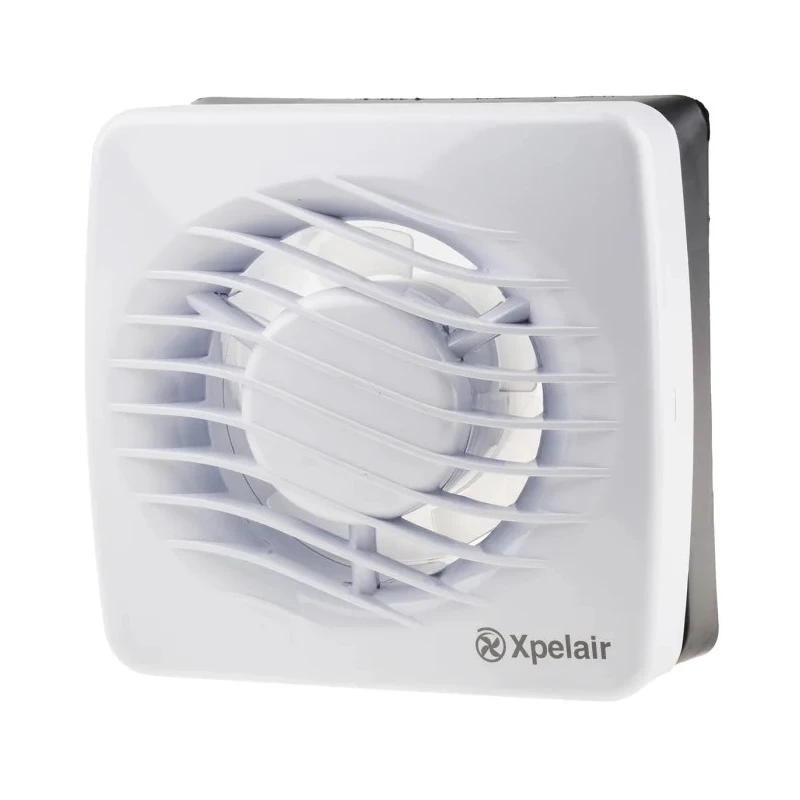

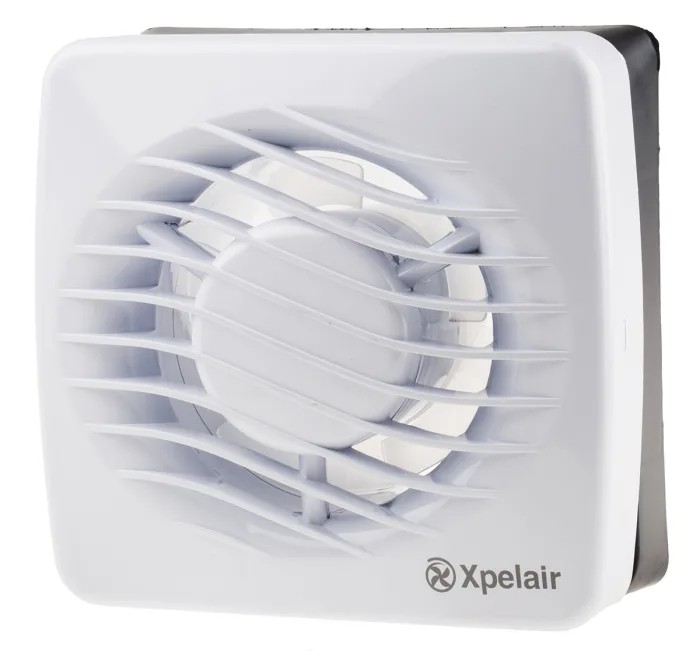

Xpelair DX Rectangular Wall Extractor Fan 230V AC 12W 76 m³/h Airflow 35 dBA Noise Level Duct Size 100 mm 90839AW
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Power Consumption | 12W |
| Brand | Xpelair |
| Colour | White |
| Air Flow | 76m³/h |
| Model | 90839AW |
| IP Rating | IPX5 |
| Noise Level | 35dBA |
| Mount Type | Wall |
| Fan Type | Extractor |
| Series | DX |
| Configuration | Rectangular |
| Installation Depth | 43mm |
| Supply Voltage | 230V ac |
| Standards/Approvals | CE |
| ANSI/ESD S20.20 | 2014 |
| BS EN 61340-5-1 | 2007 |
| Face Height | 155mm |
| Face Width | 165mm |
| Duct Size | 100 mm |
Key Features
- Operates at 230V AC with a power consumption of 12W.
- Rectangular configuration with a duct size diameter of 100 mm for efficient ventilation.
- Features a wall-mount installation design suitable for kitchens and utility areas.
- Incorporates lubricated-for-life motors with thermal cut-out protection for long-lasting reliability.
- Equipped with an air-operated back draft shutter and universal mounting kit for versatile mounting options.
- Durable white finish with IPX5 rating for protection against water ingress.
- Compact installation depth of 43 mm with face dimensions of 155 mm height and 165 mm width.
- CE approved and compliant with ANSI/ESD S20.20 and BS EN 61340-5-1 standards.
Product Description
Xpelair 90839AW DX Rectangular Wall Extractor Fan is designed for effective air extraction in residential and commercial applications, operating at 230V AC with a power consumption of 12W. It provides a consistent airflow rate of 76 m³/h while maintaining a low noise level of 35 dBA, ensuring comfortable ambient conditions in kitchens, bathrooms, and utility rooms.
This extractor fan features a rectangular configuration with a duct size diameter of 100 mm, optimized for wall mounting. The fan assembly includes a lubricated-for-life motor equipped with thermal cut-out protection, enhancing durability and safety during extended operation.
The unit includes a universal mounting kit comprising a wall tube, two gaskets, an outer grille, and a skirt moulding designed specifically for window mounting in single glazing up to 6 mm thickness. An air-operated back draft shutter reduces reverse airflow when the fan is not operational.
The white finish and compact installation depth of 43 mm, along with the face height of 155 mm and width of 165 mm, allow for a clean, unobtrusive installation profile. The product has achieved IPX5 rating, providing resistance to water splashes, making it suitable for humid environments.
Compliant with CE directives and tested to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards, this fan meets rigorous safety and performance guidelines. Operates with a 230V AC power supply and low 12W power consumption.
Provides steady 76 m³/h airflow for effective ventilation. Rectangular, wall-mounted design with a 100 mm duct diameter. Includes thermal cut-out protected motor lubricated for life. Universal mounting kit for wall, ceiling, or window mounting compatibility.
Air-operated back draft shutter minimizes unwanted air reversal. Compact dimensions and IPX5 water ingress protection rating. Certified to CE, ANSI/ESD, and BS EN standards.
This fan is ideal for industrial, commercial, and residential HVAC applications requiring efficient air extraction with low noise levels. Explore the full range of Xpelair Extractor Fans and related HVAC components on EnvMart for optimized environmental control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a consistent airflow rate of 76 m³/h, making it effective for ventilation in various spaces.
The extractor fan has a face height of 155 mm and a face width of 165 mm, with a compact installation depth of 43 mm.
It operates with a power consumption of 12W, ensuring energy efficiency during use.
The noise level is rated at 35 dBA, allowing for quiet operation in residential and commercial environments.
This unit requires a duct size diameter of 100 mm for proper installation and airflow management.
It features a wall-mount installation design, suitable for kitchens and utility areas, and includes a universal mounting kit.
It incorporates a lubricated-for-life motor with thermal cut-out protection to enhance safety and reliability during operation.
This model has an IPX5 rating, providing protection against water ingress, making it suitable for humid environments.
It is CE approved and compliant with ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards, ensuring safety and performance.
The extractor fan features a rectangular configuration, optimized for wall mounting applications.
Yes, it is equipped with an air-operated back draft shutter to minimize reverse airflow when the fan is not operational.
The fan is manufactured in the United Kingdom, ensuring adherence to local standards and regulations.
