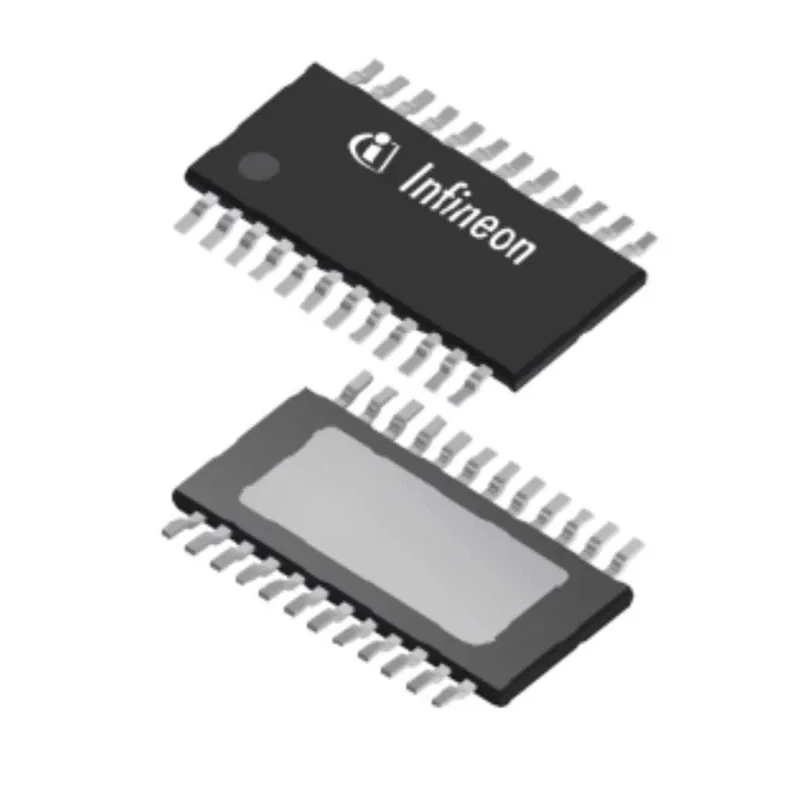

Infineon High Side Power Control Switch 24-Pin TSDSO, 28V, 3.3mA Operating Current BTS700121ESPXUMA1

Infineon BTS700121ESPXUMA1 High Side Power Control Switch is a sophisticated semiconductor device designed for controlling high current loads safely and efficiently. The device uses a high side topology ensuring that it switches the positive voltage supply, ideal for many automotive and industrial control circuits.

Equipped with a 24-pin TSDSO package, the switch offers a minimal On resistance of 1.4mΩ, which reduces heat dissipation and increases system efficiency. An operating current of only 3.3mA helps in lowering power consumption during operation. The maximum supply voltage rating ensures compatibility within 28V systems, common across automotive and industrial environments.

The device integrates embedded protection features including overload protection, short circuit shutdown, and thermal shutdown, improving overall system reliability and longevity. It facilitates capacitive load switching mode with a maximum on-state resistance of 2.47mΩ, making it suitable for a wide range of applications involving resistive, inductive, and capacitive loads.

Certified to meet AEC and RoHS standards, this power switch is designed to comply with modern environmental and quality standards. However, it does not carry a specific automotive standard certification. This product is ideal for use in automotive electronics, industrial power controls, battery management systems, and other embedded power management applications.

Features a low switch On resistance of 1.4mΩ for minimal power loss. Designed with a high side topology suitable for controlling resistive, inductive, and capacitive loads. Supports maximum supply voltage of 28V with an operating current of 3.3mA.

Incorporates embedded protection and diagnostic functions for reliable operation. Packaged in a compact 24-pin TSDSO suitable for PCB integration. Capacitive load switching mode with maximum on-state resistance of 2.47mΩ.

Compliant with AEC and RoHS standards ensuring quality and environmental safety. Automotive industry grade designed, though without specific automotive standards certification.

This Infineon power switch is an excellent choice for designers and engineers working in the field of electronics, offering an effective combination of performance, protection, and compactness. Browse more power management ICs on EnvMart for comprehensive solutions tailored to your power switching needs.
