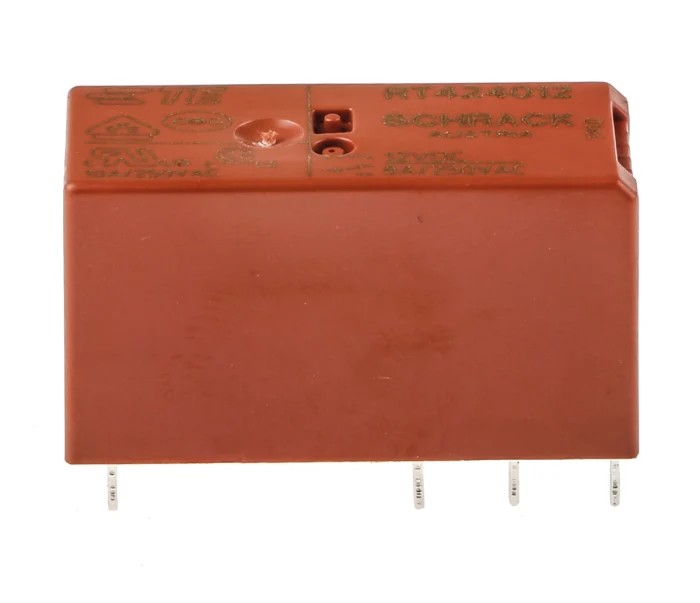

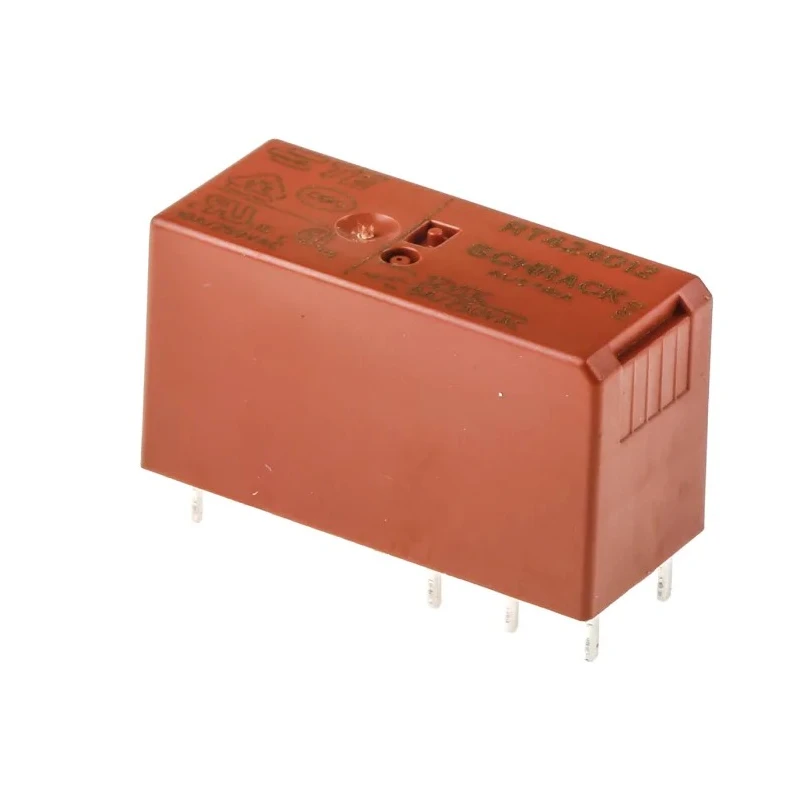

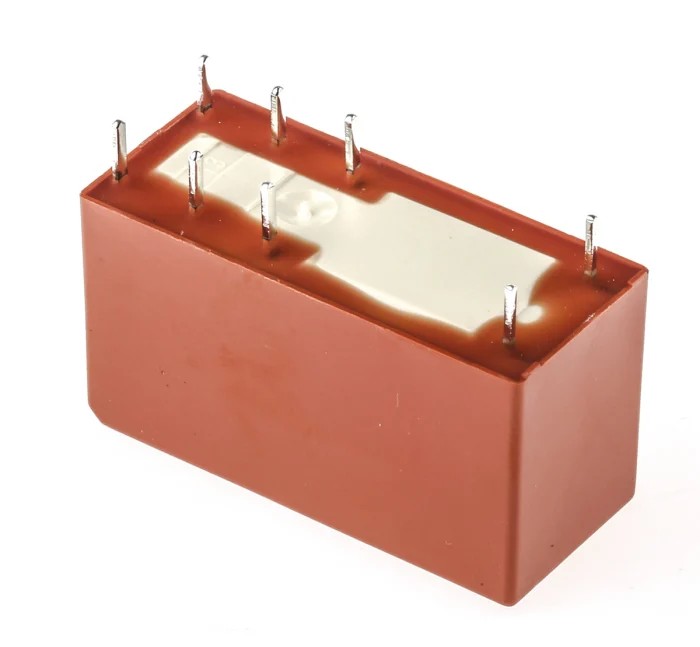

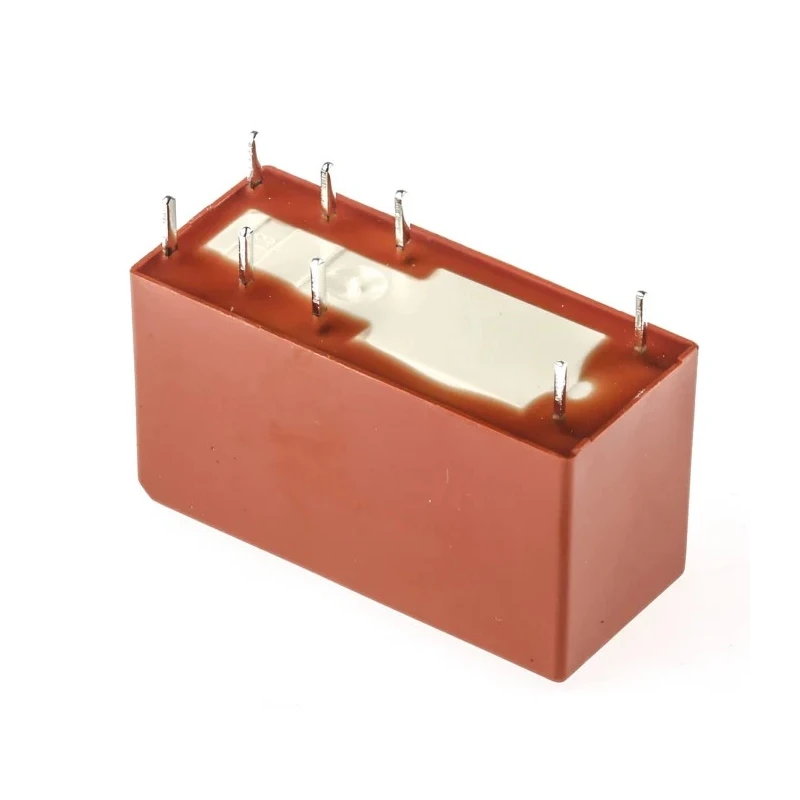

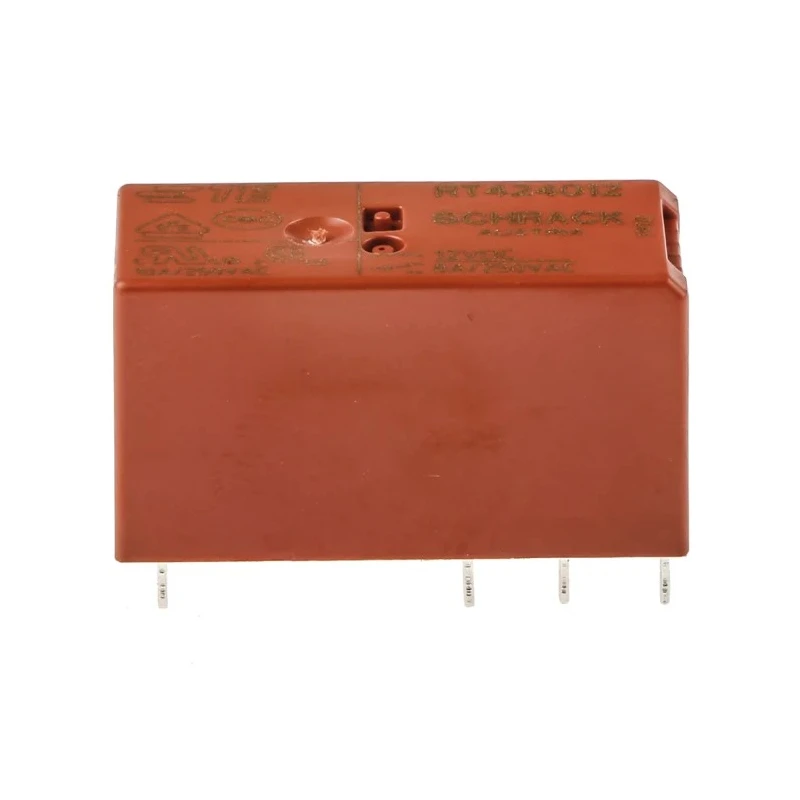

TE Connectivity PCB Power Relay 12V DC Coil 8A Switching Current DPDT RT424012
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | RT424012 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Nickel Alloy |
| Series | RT2 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | Solder |
| Standards/Approvals | RoHS, VDE, IEC 60335-1 |
| Coil Resistance | 360Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 250mW |
Key Features
- Non-latching type suitable for general power relay applications.
- Coil resistance is 360 ohms for efficient operation.
- Contact material made of silver nickel alloy ensures durability.
- Operating temperature range from -40°C to 85°C for harsh environments.
- Solder terminal type compatible with standard PCB mounting.
- Switching AC voltage rating up to 400V AC.
- Compliant with RoHS, VDE, IEC 60335-1 standards.
- Coil power consumption is only 250 mW for energy efficiency.
Product Description
TE Connectivity RT424012 PCB Power Relay features a DPDT contact configuration with a 12V DC coil voltage, designed for reliable switching in electrical and automation systems. This non-latching relay from the RT2 series offers an 8A switching current capacity, ideal for controlling various industrial and commercial loads.
The relay coil has a resistance of 360 ohms and consumes 250mW power, ensuring efficient operation while minimizing energy use. Made with a silver nickel alloy contact material, the relay guarantees long-lasting electrical contact and resistance to wear.
The operating temperature range from -40°C to 85°C supports use in demanding environments, while solder terminal type allows straightforward PCB mounting with 5mm pin spacing. Dimensions of 29mm length, 12.7mm width, and 15.7mm height facilitate integration onto compact circuit boards.
The relay meets multiple international standards including RoHS compliance, VDE, and IEC 60335-1 certifications, underscoring its quality and safety for industrial applications. Typical applications include boiler control, timers, garage door automation, POS automation systems, and interface modules requiring reliable power relay switching.
Non-latching type suitable for general power relay applications. Coil resistance is 360 ohms for efficient operation. Contact material made of silver nickel alloy ensures durability. Operating temperature range from -40°C to 85°C for harsh environments.
Compact dimensions: length 29mm, width 12.7mm, height 15.7mm. Solder terminal type compatible with standard PCB mounting. Switching AC voltage rating up to 400V AC. Compliant with RoHS, VDE, IEC 60335-1 standards. Coil power consumption is only 250 mW for energy efficiency.
Designed and manufactured in Austria. Explore more products in the Power Relays category on EnvMart for quality components suitable for industrial, laboratory, and electrical control systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TE Connectivity RT424012 relay has a switching current capacity of 8A.
This model operates with a coil voltage of 12V DC.
The relay features a DPDT (Double Pole Double Throw) contact configuration.
The coil resistance of the RT424012 is 360 ohms.
The relay can switch AC voltages up to 400V AC.
The operating temperature range is from -40°C to 85°C.
This model supports PCB mounting with solder terminals.
The dimensions are 29mm in length, 12.7mm in width, and 15.7mm in height.
The contact material is made of silver nickel alloy, ensuring durability.
The coil power consumption is only 250mW, promoting energy efficiency.
The relay is compliant with RoHS, VDE, and IEC 60335-1 standards.
This relay is designed and manufactured in Austria.
