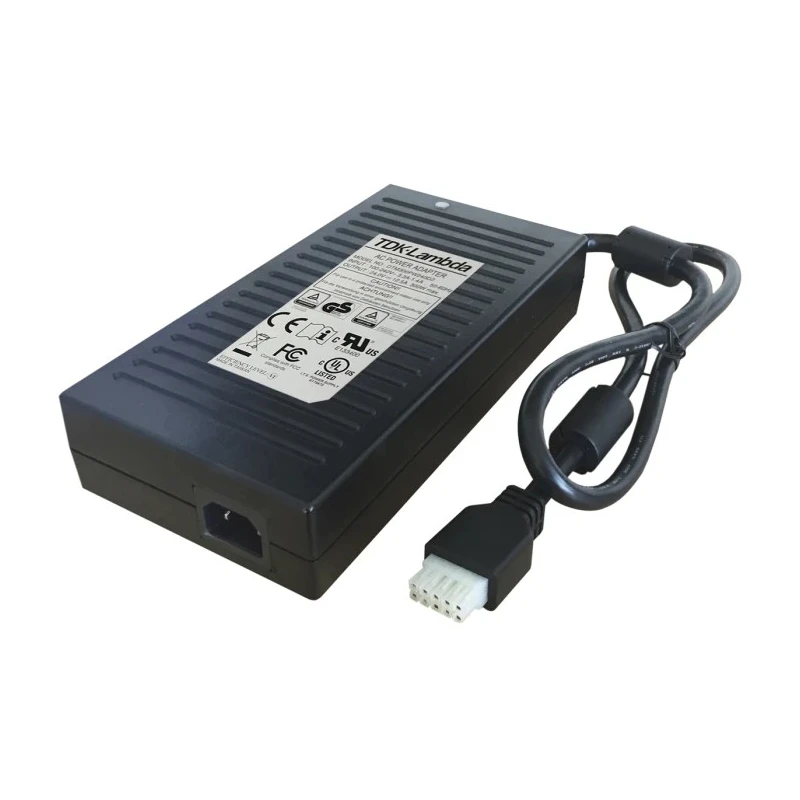

TDK-Lambda AC/DC Power Adapter 10 Pin DC Jack 300W 19V DC Output 15.79A DTM-300PW-190-D1

Free Delivery in India | Lowest Global Shipping Charges

TDK-Lambda AC/DC Power Adapter 10 Pin DC Jack 300W 19V DC Output 15.79A DTM-300PW-190-D1

Name: TDK-Lambda AC/DC Power Adapter 10 Pin DC Jack 300W 19V DC Output 15.79A DTM-300PW-190-D1
Brand: TDK-Lambda
SKU: 203231



Category AC/DC Adapter Brand TDK-Lambda Condition New

Specifications

Country of Origin	India
Brand	TDK-Lambda
Power	300W
Efficiency	88%
Length	222mm
Model	DTM-300PW-190-D1
Depth	45mm
Cable Length	800mm
Width	112mm
Series	DTM300-D
Maximum Operating Temperature	60°C
Sub Type	Power Adapter
Load Regulation	±5 %
Minimum Operating Temperature	-30°C
Plug Type	10 Pin
Number of outputs	1
Maximum Input Voltage	264V ac
Output Voltage	19V dc
Minimum Input Voltage	90V ac
Output Connector Type	DC Jack
Input Connector Type	IEC 320-C14
Adapter Current	15.79A
Energy Efficiency Level	VI

Key Features

Medical and ITE approved power adapter for reliability.
Supports input voltage from 90V to 264V AC.
Features 10 pin DC Jack output connector with 800mm cable length.
Convection cooled with rugged vent-free enclosure design.
Operating temperature range from -30°C to 60°C.
High efficiency of 88% meeting DoE Level VI standards.
Includes over-voltage and over-current protection mechanisms.
Compliance with CE, UL 60601-1, IEC 60601-1 and EN 60601-1 standards.

Product Description

TDK-Lambda DTM-300PW-190-D1 is a high-performance AC/DC Power Adapter delivering 300W power with 19V DC output at 15.79A, designed for demanding medical and industrial equipment needs.

This adapter supports universal input voltage ranging from 90V to 264V AC and operates efficiently within a temperature range of -30°C to 60°C, ensuring reliable performance in harsh environments.

It features a 10 pin DC Jack output connector along with an 800mm cable for flexible connectivity. The rugged, vent-free enclosure allows convection cooling without noise or additional fans, suited for medical and testing applications.

Certified to meet stringent approvals such as CE, UL 60601-1, IEC 60601-1, and EN 60601-1, this power adapter supports both Class I and Class II safety requirements, offering high reliability and safety features including over-voltage and over-current protection.

With an efficiency rating of 88% and compliance to DoE Level VI energy efficiency standards, it ensures energy-saving operation. The power supply also features stable load regulation within ±5%, making it suitable for sensitive electronic equipment.

Medical and ITE approved for critical application use. Universal input voltage acceptance from 90V to 264V AC. Convection cooled rugged enclosure for silent operation. Single 19V DC output at 15.79A current capacity. Over-voltage and over-current protection for enhanced safety.

Compact dimensions of 222mm length, 112mm width, and 45mm depth. Load regulation of ±5% ensuring stable voltage output. Compliance to international safety and medical standards. Efficient operation with 88% average efficiency to meet DoE Level VI.

This power adapter is ideal for use in industrial manufacturing, medical instrumentation, test and measurement devices, communication industry equipment, and broadcasting applications requiring reliable and efficient DC power sources.
