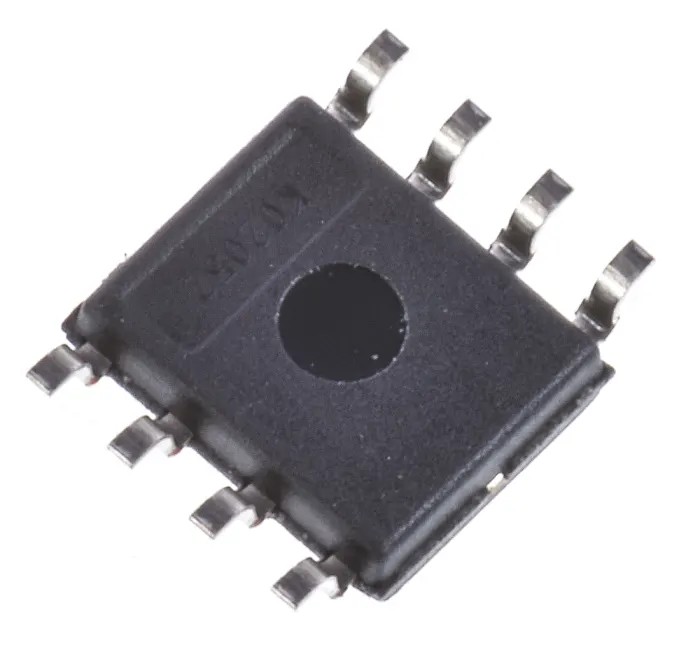

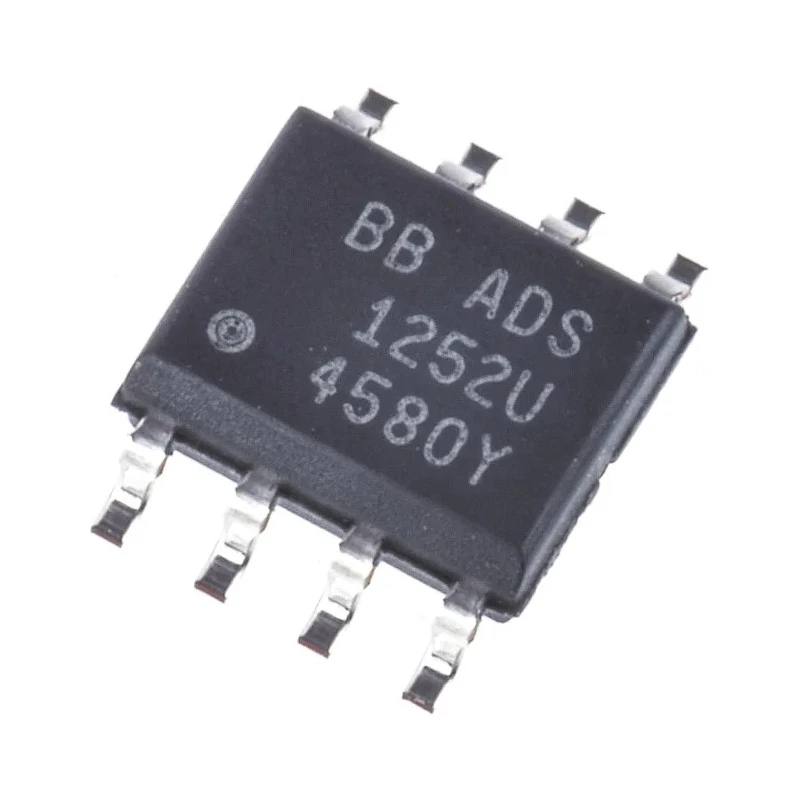

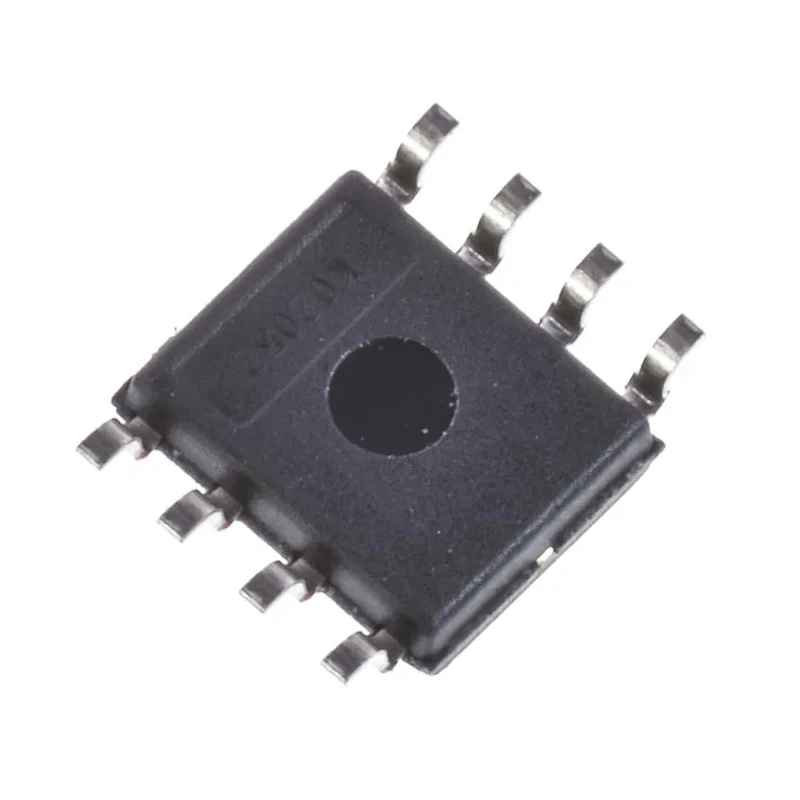

Texas Instruments 24-Bit Delta Sigma ADC 41 ksps, 8-Pin SOIC ADS1252U
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 24 bit |
| Brand | Texas Instruments |
| Height | 1.44mm |
| Length | 5.01mm |
| Model | ADS1252U |
| Mount Type | Surface |
| Sampling rate | 41ksps |
| Series | ADS1252 |
| Input Type | Voltage |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Interface Type | SPI |
| Architecture | Delta Sigma |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.25V |
| Minimum Supply Voltage | 5V |
| Number of ADCs | 1 |
Key Features
- Features a single ADC architecture based on Delta Sigma technology.
- Operates with a supply voltage range of 5V to 5.25V for stable performance.
- Supports SPI interface for efficient digital communication.
- Designed for surface mounting with a compact 5.01mm length and 1.44mm height.
- Operates reliably in temperature ranges from -40°C to 85°C for industrial applications.
- Pin count of 8 ensures compatibility with standard SOIC footprint.
- No automotive standard compliance, suitable for general industrial electronics use.
- Package type SOIC ensures ease of integration into circuit boards.
Product Description
Texas Instruments ADS1252U is a precision Analogue to Digital Converter that utilizes Delta Sigma architecture to provide 24-bit resolution with a sampling rate of up to 41 ksps. Packaged in a compact 8-pin SOIC, it is designed for surface mounting, measuring 5.01mm in length and 1.44mm in height, making it suitable for space-constrained electronic systems.
This ADC operates with a supply voltage range between 5V and 5.25V, enabling stable and accurate voltage input conversion. Its SPI interface allows seamless communication with microcontrollers and digital processing units, facilitating rapid data acquisition and processing.
Certified to operate reliably within the temperature range of -40°C to 85°C, it is appropriate for a wide range of industrial, laboratory, and electronic equipment applications where high-resolution signal conversion is critical. The single ADC design using Delta Sigma architecture affords precision and noise reduction in measurement tasks.
The ADS1252U does not hold specific automotive certifications, positioning it primarily for general precision sensing and measurement tasks in commercial and industrial environments rather than automotive-specific applications.
24-bit resolution enables high-precision measurements. Delta Sigma architecture enhances dynamic range and accuracy. Sampling rate of 41 ksps suitable for moderate-speed data acquisition. Compact 8-Pin SOIC package ideal for PCB integration.
Wide operating temperature range supports diverse industrial uses. Low power operation at a supply voltage of 5V to 5.25V. SPI interface for effective communication with digital systems.
Utilize Texas Instruments ADS1252U ADCs for precision analog signal conversion in industrial control systems, laboratory instruments, instrumentation, consumer electronics, and embedded systems where reliable, high-resolution data acquisition is essential. This product is a reliable choice for engineers and designers demanding accuracy with compact footprint benefits.
Explore EnvMart's catalog for a comprehensive range of Semiconductor and ADC components to complement your design and production needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The ADS1252U features a resolution of 24 bits, allowing for high-precision measurements.
This model has a maximum sampling rate of 41 ksps, suitable for moderate-speed data acquisition tasks.
It operates with a supply voltage range of 5V to 5.25V, ensuring stable performance during operation.
The ADC utilizes an SPI interface for efficient communication with microcontrollers and digital processing units.
The ADS1252U operates reliably within a temperature range of -40°C to 85°C, making it suitable for various industrial applications.
This model measures 5.01mm in length and 1.44mm in height, designed for surface mounting in compact spaces.
The ADS1252U includes a single ADC, which is based on Delta Sigma architecture.
It is designed for surface mounting, making it easy to integrate into circuit boards.
This ADC utilizes Delta Sigma architecture, which enhances dynamic range and accuracy in measurements.
No, the ADS1252U does not hold specific automotive certifications and is intended for general industrial electronics use.
The ADS1252U is packaged in an 8-pin SOIC, facilitating easy integration into electronic systems.
It supports voltage input type for analog signal conversion.
