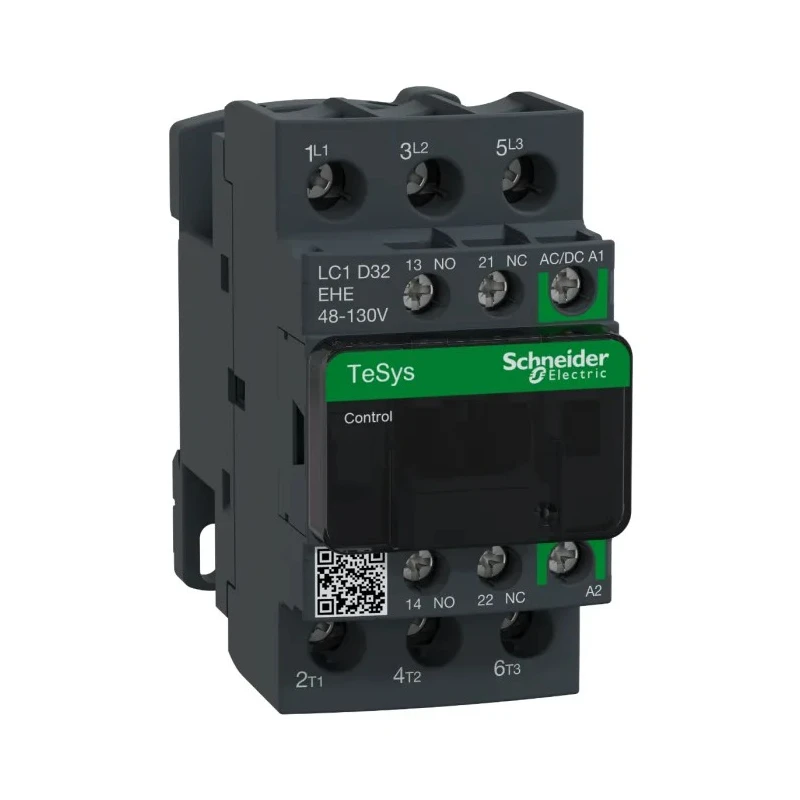

Schneider Electric TeSyS D Contactor, 110V AC/DC Coil, 3-Pole, 32 A, 15 kW Power Rating, 130V Control Voltage LC1D32EHE
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 45mm |
| Model | LC1D32EHE |
| Depth | 85mm |
| Width | 92mm |
| Mount Type | DIN Rail |
| Series | TeSys D |
| Power Rating | 15kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | CCC, CSA, EAC, IEC, RoHS, UL |
| Contact Voltage | 690V ac |
| Coil Voltage | 110V ac/dc |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 32A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 32A |
| Control Circuit Voltage Uc | 130V |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3PST |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Equipped with a 110V AC/DC coil for flexible control voltage operation.
- Rated contact current of 32 A with 3 NO normal state configuration contacts.
- Power rating of 15 kW suitable for heavy-duty industrial use.
- Compact dimensions with 85mm depth, 92mm width, and 45mm length for DIN rail mounting.
- Includes 2 auxiliary contacts with 1 NO and 1 NC configuration for additional switching needs.
- Designed for motor control and resistive load applications with robust screw terminal connections.
- Operates within temperature range from -25°C to 60°C ensuring reliability in diverse environments.
- Complies with international standards including CCC, CSA, EAC, IEC, RoHS, and UL for quality assurance.
Product Description
Schneider Electric's LC1D32EHE is a high-performance TeSyS D contactor suited for both AC and DC coil control applications at 110V. This 3-pole contactor supports a contact current of 32 amps and delivers a 15 kW power rating, making it ideal for motor control and resistive load scenarios in industrial, HVAC, manufacturing, and automation environments.
The device operates reliably within a wide temperature range from -25°C up to 60°C, ensuring robust performance under challenging conditions. It features screw connections that are IP20 finger-safe with both North American and international terminal markings, allowing safe and convenient installation on DIN rails or panels.
Designed with 3 normally open contacts (3 NO) and equipped with 2 auxiliary contacts (1 NO and 1 NC), the contactor offers enhanced switching capabilities for complex control circuits. Its compact form factor with dimensions of 85mm depth, 92mm width, and 45mm length optimizes space utilization in control panels.
This contactor complies with numerous international certifications including CCC, CSA, EAC, IEC, RoHS, and UL, assuring quality and safety standards are met. Schneider Electric’s TeSyS D series emphasizes sustainability with products designed for disassembly and efficiency.
Equipped with a 110V AC/DC coil for flexible control voltage operation. Rated contact current of 32 A with 3 NO normal state configuration contacts. Power rating of 15 kW suitable for heavy-duty industrial use. Compact dimensions with 85mm depth, 92mm width, and 45mm length for DIN rail mounting.
Includes 2 auxiliary contacts with 1 NO and 1 NC configuration for additional switching needs. Designed for motor control and resistive load applications with robust screw terminal connections. Operates within temperature range from -25°C to 60°C ensuring reliability in diverse environments.
Complies with international standards including CCC, CSA, EAC, IEC, RoHS, and UL for quality assurance.
Typical industrial applications include motor starters for conveyors, lifts, compressors, pumps, mixers, and air conditioning units where reliable switching and durability are critical. Its utilization categories AC-1 and AC-3 cover resistive loads and squirrel cage motor controls respectively.
For expanded functions, optional accessories such as auxiliary contact blocks, time delay blocks, surge suppressors, and interface modules are available to tailor the contactor to specific control system requirements.
Explore the Schneider Electric automation and control gear range at EnvMart for more products and technical solutions.
Explore more products in our Contactors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a power rating of 15 kW, making it suitable for heavy-duty industrial applications.
The contactor supports a rated contact current of 32 A.
It has compact dimensions of 85 mm in depth, 92 mm in width, and 45 mm in length, designed for DIN rail mounting.
The LC1D32EHE is equipped with a coil voltage of 110V AC/DC, allowing flexible control voltage operation.
It operates reliably within a temperature range from -25°C to 60°C.
This model features a 3-pole configuration, with 3 normally open contacts.
It utilizes screw connections that are IP20 finger-safe with both North American and international terminal markings.
The contactor includes 2 auxiliary contacts configured as 1 normally open (NO) and 1 normally closed (NC).
It is designed for motor control and resistive load applications, commonly used in industrial environments such as HVAC and manufacturing.
The contactor complies with several international standards including CCC, CSA, EAC, IEC, RoHS, and UL.
The normal state configuration of this contactor is 3 normally open (NO) contacts.
The operational current rating for the LC1D32EHE is 32 A, suitable for various industrial applications.
