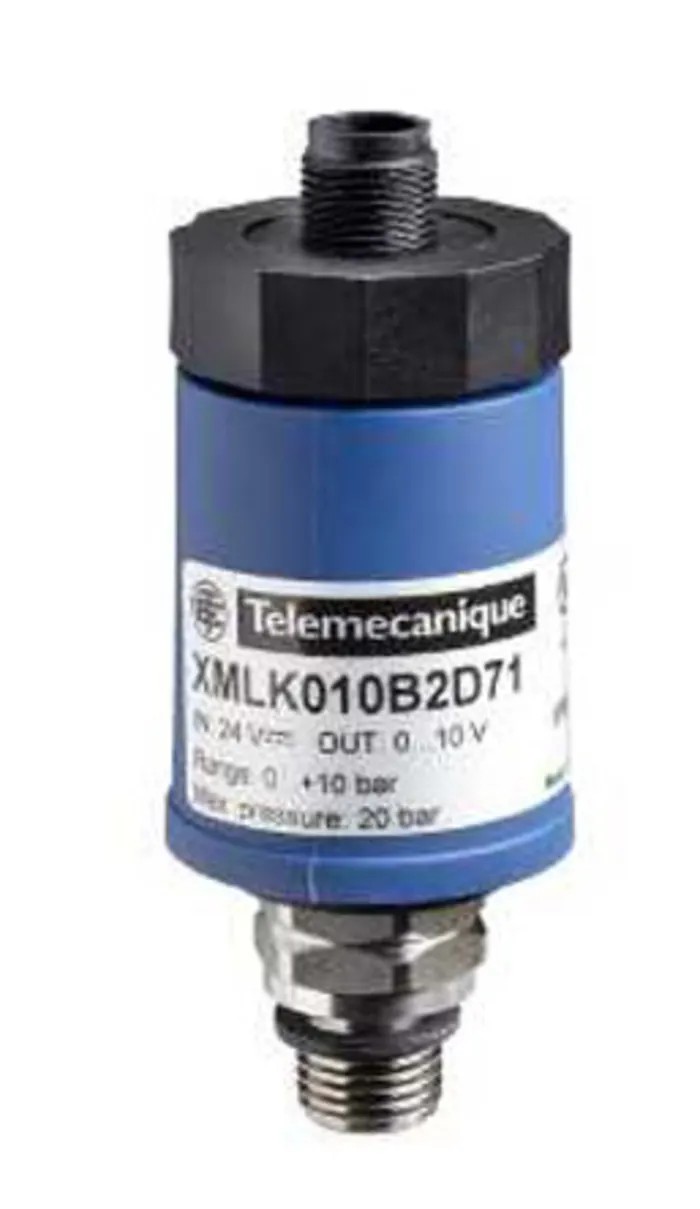

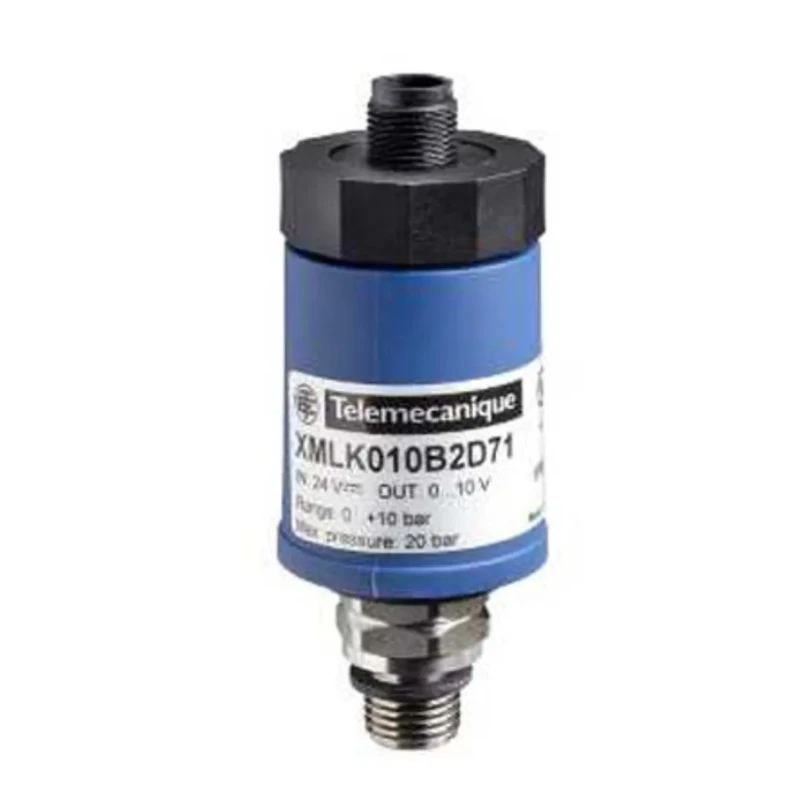

Telemecanique Sensors XMLK Series Pressure Switch Stainless Steel Housing 0 bar to 10 bar 24V Analogue Output XMLK010B2D21
Specifications
| Country of Origin | Switzerland |
|---|---|
| Accuracy | ±0.3 % |
| Brand | Telemecanique Sensors |
| Response time | 2ms |
| Model | XMLK010B2D21 |
| IP Rating | IP65, IP67 |
| Mount Type | Screw |
| Housing Material | Stainless Steel |
| Output type | Analogue |
| Series | XMLK |
| Maximum Operating Temperature | 80°C |
| Analogue Output | 4 → 20 mA |
| Standards/Approvals | CSA, LROS, BV, CE, CCC, UL, EAC, EN |
| Maximum Pressure Measurement | 10bar |
| Minimum Pressure Measurement | 0bar |
| Maximum Supply Voltage | 24V |
| Media Measured | Air, Fresh Water |
Key Features
- Designed for analogue output signal from 4 to 20 mA.
- Equipped with a ceramic pressure measuring cell for reliable sensing.
- Supports maximum supply voltage of 24V for stable operation.
- Rated IP65 and IP67 for protection against dust and water.
- Operates effectively at temperatures up to 80°C.
- Fast response time of 2 milliseconds ensuring timely readings.
- Suitable for measuring air and fresh water media.
- Mount type is screw for secure installation.
Product Description
Telemecanique Sensors XMLK010B2D21 is a high precision pressure switch designed for industrial and automation applications requiring accurate pressure measurement from 0 bar to 10 bar. The device features a robust stainless steel housing and incorporates a ceramic pressure measuring cell that detects pressure changes by deformation affecting a Wheatstone bridge, yielding precise analogue signals.
This pressure switch outputs a 4 to 20 mA analogue signal, compatible with a wide range of control and monitoring systems. Powered by a maximum supply voltage of 24V, it guarantees stable and reliable performance within various electrical environments.
The XMLK Pressure Switch is designed for durability and protection with an IP65 and IP67 rating, making it resistant to dust ingress and water immersion. It operates efficiently in ambient temperatures up to 80°C, suitable for many industrial settings.
Installation is facilitated via a screw mount type, ensuring secure fitting in machinery or control panels. The response time of just 2 milliseconds ensures rapid detection and response to pressure changes, critical for process control and safety systems.
This device measures pressures in media such as air and fresh water, suitable for HVAC, manufacturing, water treatment, and laboratory industrial applications. It meets several international standards and approvals including CSA, LROS, BV, CE, CCC, UL, and EAC, confirming its quality and compliance for industrial deployment.
Analogue output signal between 4 to 20 mA for precise control. Robust stainless steel housing providing long-term durability. IP65 and IP67 rated for dust and water protection. Fast 2 ms response time enabling immediate pressure monitoring.
Suitable for air and fresh water media measurement. Multiple international safety and performance standards certified. Operates in temperature conditions up to 80 degrees Celsius. Manufactured with Swiss precision and quality assurance.
Designed for use in industrial, laboratory, HVAC, manufacturing, and water treatment applications. Explore the comprehensive Telemecanique Sensors product range on EnvMart for more industrial instrumentation solutions tailored for your precision control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model measures pressure from 0 bar to 10 bar.
It provides a 4 to 20 mA analogue output signal.
The maximum supply voltage is 24V.
The housing is made of stainless steel, ensuring durability.
It has a fast response time of 2 milliseconds.
The device is rated IP65 and IP67 for protection against dust and water.
It operates effectively at temperatures up to 80°C.
It is suitable for measuring air and fresh water media.
The mounting type is screw, allowing for secure installation.
It offers an accuracy of ±0.3%.
It meets several standards including CSA, LROS, BV, CE, CCC, UL, and EAC.
This pressure switch is designed for industrial, laboratory, HVAC, manufacturing, and water treatment applications.
