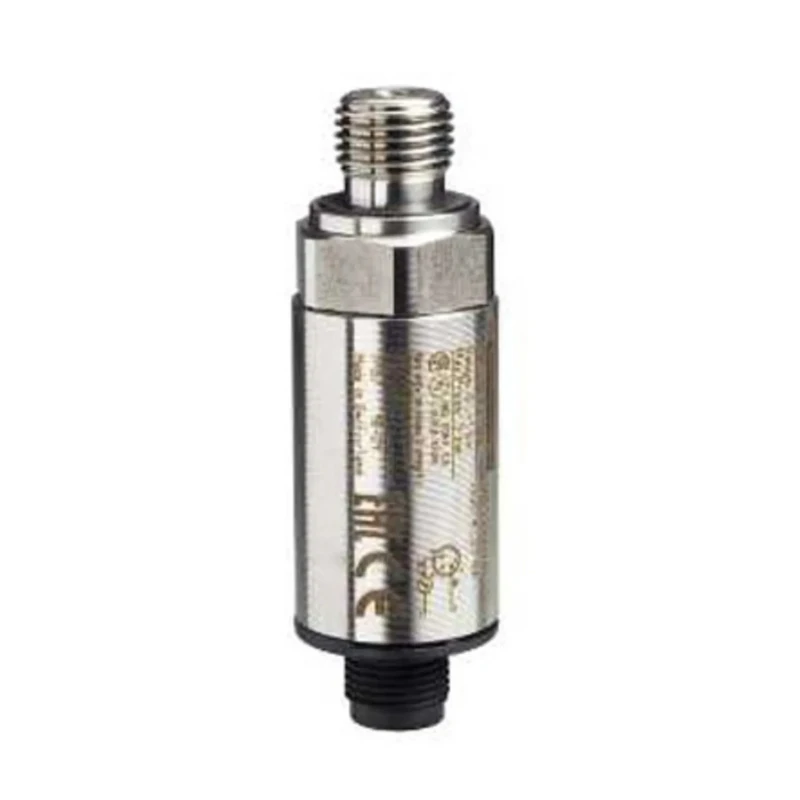

Telemecanique Sensors XMLG Series Pressure Switch 0 bar to 10 bar 24V Analogue Output IP67 IP66 XMLG010D71
Specifications
| Country of Origin | Switzerland |
|---|---|
| Accuracy | ±0.1 % |
| Brand | Telemecanique Sensors |
| Response time | 2ms |
| Temperature range | - 15 to +85 °C |
| Model | XMLG010D71 |
| IP Rating | IP67, IP66 |
| Mount Type | Screw |
| Housing Material | Ceramic, Aluminium Oxide, Stainless Steel |
| Output type | Analogue |
| Series | XMLG |
| Maximum Operating Temperature | 85°C |
| Enclosure Rating | IP66 |
| Analogue Output | 0 → 10 V |
| Standards/Approvals | CE, EN, CSA, UL, CCC, EAC, LROS, BV |
| Maximum Pressure Measurement | 10bar |
| Minimum Pressure Measurement | 0bar |
| Maximum Supply Voltage | 24V |
| Media Measured | Air, Corrosive Fluid, Fresh Water, Hydraulic Oil, Sea Water |
Key Features
- Features an accurate ceramic pressure measuring cell with ±0.1% accuracy.
- Provides a 0 to 10 V analogue output for precise pressure monitoring.
- Maximum operating temperature is 85°C ensuring reliability under harsh conditions.
- Equipped with IP67 and IP66 enclosure ratings for superior dust and water resistance.
- Mounts via screw type for secure and easy installation.
- Measures a wide range of media including air, corrosive fluids, fresh water, hydraulic oil, and sea water.
- Response time of 2 milliseconds enables fast detection and control.
- Complies with multiple international standards including CE, EN, CSA, UL, CCC, EAC, LROS, and BV.
Product Description
Telemecanique Sensors XMLG010D71 Series Pressure Switch is an advanced device designed for reliable pressure measurement ranging from 0 bar to 10 bar with a supply voltage of 24V. The sensor integrates a ceramic, aluminium oxide, and stainless steel housing for durability and corrosion resistance, ideal for industrial, automation, and control applications.
This pressure switch employs a sophisticated ceramic pressure measuring cell where deformation due to pressure alters the resistance of a Wheatstone bridge printed on the ceramic material. The integrated electronics process these changes to provide precise analogue output signals.
Featuring an adjustable differential with a single CO snap-acting contact, this device supports a temperature operating range from -15 to +85 °C, suitable for a variety of environments. Its IP67 and IP66 ratings ensure effective protection against dust and water ingress, supporting long-term performance in demanding settings.
Applications include industrial automation, HVAC systems, laboratory instrumentation, water treatment, and hydraulic equipment monitoring. The unit is mounted via screws for easy installation and maintenance.
Features an accurate ceramic pressure measuring cell with ±0.1% accuracy. Analogue output signal in the range of 0 to 10 V for compatibility with control systems. Robust housing materials: ceramic, aluminium oxide, and stainless steel for durability.
IP67 and IP66 rated enclosure providing dust-tight and water protection. Rapid response time of 2 ms to pressure changes ensuring timely alerts. Compatible with air, corrosive fluids, fresh water, hydraulic oil, and sea water.
Conforms to CE, EN, CSA, UL, CCC, EAC, LROS, and BV international standards.
The Telemecanique Sensors XMLG Series is engineered for precision and reliability in critical industrial applications, providing dependable pressure monitoring solutions. Discover more products and solutions in the Pressure Switch category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Telemecanique Sensors XMLG010D71 pressure switch measures pressure from 0 bar to 10 bar.
It provides an analogue output in the range of 0 to 10 V, suitable for integration with control systems.
The accuracy of this pressure switch is ±0.1%.
The maximum operating temperature is 85°C, allowing it to function in harsh conditions.
The housing is made of ceramic, aluminium oxide, and stainless steel, providing durability and corrosion resistance.
It has IP67 and IP66 ratings, ensuring protection against dust and water ingress.
The response time is 2 milliseconds, enabling quick detection of pressure changes.
It is mounted via screws, allowing for secure and easy installation.
It can measure air, corrosive fluids, fresh water, hydraulic oil, and sea water.
The temperature operating range is from -15 to +85 °C, making it suitable for various environments.
It complies with several international standards including CE, EN, CSA, UL, CCC, EAC, LROS, and BV.
The maximum supply voltage for this model is 24V.
