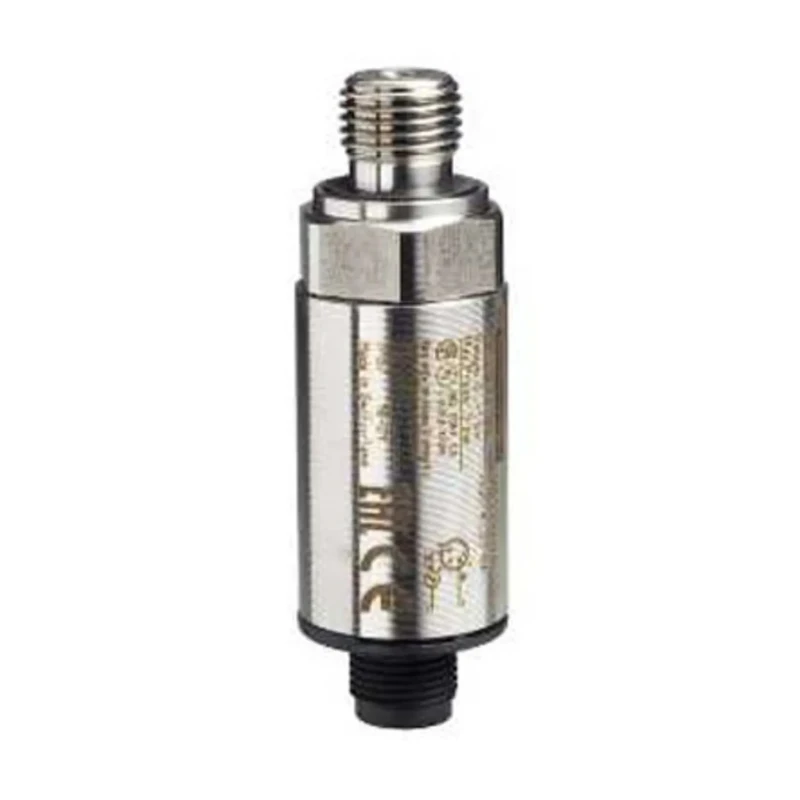

Telemecanique Sensors XMLG Series Pressure Switch 0 bar to 6 bar, 24V, Analogue Output, IP67/IP66 XMLG006D21
Specifications
| Country of Origin | Switzerland |
|---|---|
| Accuracy | ±0.1 % |
| Brand | Telemecanique Sensors |
| Response time | 2ms |
| Temperature range | - 15 to +85 °C |
| Model | XMLG006D21 |
| IP Rating | IP67, IP66 |
| Mount Type | Screw |
| Housing Material | Stainless Steel, Ceramic, Aluminium Oxide |
| Output type | Analogue |
| Series | XMLG |
| Maximum Operating Temperature | 85°C |
| Enclosure Rating | IP66 |
| Analogue Output | 4 → 20 mA |
| Standards/Approvals | BV, EN, CSA, EAC, LROS, CCC, UL, CE |
| Maximum Pressure Measurement | 6bar |
| Minimum Pressure Measurement | 0bar |
| Maximum Supply Voltage | 24V |
| Media Measured | Air, Corrosive Fluid, Fresh Water, Hydraulic Oil, Sea Water |
Key Features
- Features an analogue output of 4 to 20 mA for precise remote monitoring.
- Constructed with a robust stainless steel, ceramic, and aluminium oxide housing for durability.
- Equipped with a screw mount type ensuring secure installation.
- Operating temperature ranges from -15 °C to +85 °C, suitable for varied environments.
- IP67 and IP66 rated enclosure for excellent protection against dust and water ingress.
- Measures various media including air, corrosive fluids, fresh water, hydraulic oil, and sea water.
- Fast response time of 2 milliseconds supports dynamic pressure changes.
- Complies with multiple international standards including BV, EN, CSA, EAC, LROS, CCC, UL, and CE.
Product Description
Telemecanique Sensors XMLG006D21 Pressure Switch from the XMLG Series offers reliable and precise pressure measurement capabilities with a range from 0 bar to 6 bar and an accuracy of ±0.1%.
This pressure switch integrates a ceramic pressure measuring cell that interacts with Wheatstone bridge resistors to convert pressure deformation into a stable electronic signal, enabling fine analog outputs from 4 to 20 mA.
The housing is crafted from stainless steel, ceramic, and aluminium oxide materials, ensuring excellent durability and corrosion resistance, suitable for demanding industrial applications.
Designed for screw mounting, it is easy to install in various industrial, laboratory, and automation settings. The device supports media such as air, corrosive fluids, fresh water, hydraulic oil, and seawater, enhancing its versatility.
Operating within a temperature range of -15 °C to +85 °C and protected by IP67/IP66 ratings, this pressure switch ensures reliable performance in harsh environments including manufacturing plants, water treatment facilities, and hydraulic systems.
With a rapid response time of 2 milliseconds, it is suitable for applications needing quick pressure detection and control feedback. The product meets several international certifications and standards such as BV, EN, CSA, EAC, LROS, CCC, UL, and CE, underscoring its safety and quality compliance.
Features an analogue output of 4 to 20 mA for precise remote monitoring. Robust stainless steel, ceramic, and aluminium oxide housing for durability. Screw mount for secure and flexible installation. Wide temperature operating range from -15 °C to +85 °C.
High protection with IP67 and IP66 enclosure ratings. Measures diverse media including air, corrosive fluids, freshwater, hydraulic oil, and seawater. Fast response time of 2 ms for dynamic applications. Conforms to multiple international certifications including BV, EN, CSA, EAC, LROS, CCC, UL, CE.
Manufactured in Switzerland, ensuring high-quality standards.
This Pressure Switch is ideal for demanding industrial automation, manufacturing, HVAC systems, water treatment plants, and laboratory instrumentation where precise pressure measurement and durability are critical.
Explore more high-quality sensors and switches available at EnvMart for your industrial and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The XMLG006D21 pressure switch measures pressure from 0 bar to 6 bar.
It has an accuracy of ±0.1%.
This unit can measure air, corrosive fluids, fresh water, hydraulic oil, and seawater.
It features an analogue output of 4 to 20 mA.
The operating temperature range is from -15 °C to +85 °C.
The response time is 2 milliseconds, making it suitable for dynamic pressure applications.
It has IP67 and IP66 ratings for protection against dust and water ingress.
It is designed for screw mounting, ensuring secure installation.
The housing is constructed from stainless steel, ceramic, and aluminium oxide, providing durability and corrosion resistance.
It requires a maximum supply voltage of 24V.
It complies with several standards including BV, EN, CSA, EAC, LROS, CCC, UL, and CE.
This pressure switch is manufactured in Switzerland.
