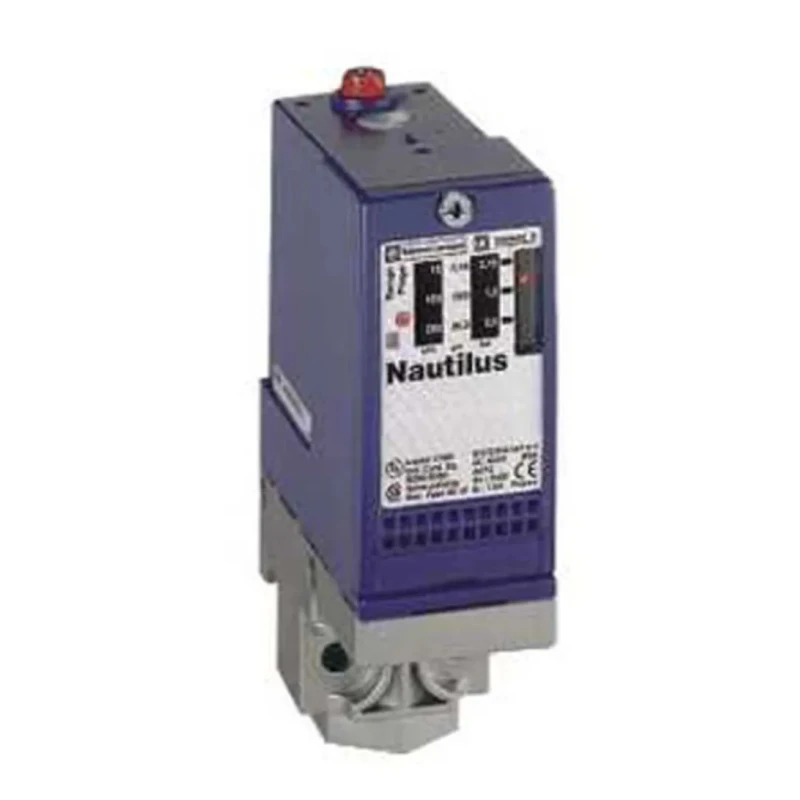

Telemecanique Sensors XMLA Series Pressure Switch 0 bar to 10 bar 240V AC Zinc Alloy Panel Mount IP65/IP66 XMLA010A2S13
Specifications
| Country of Origin | Morocco |
|---|---|
| Accuracy | 2 % |
| Brand | Telemecanique Sensors |
| Temperature range | - 25 to +70 °C |
| Model | XMLA010A2S13 |
| IP Rating | IP65, IP66 |
| Mount Type | Panel Mount |
| Housing Material | Zinc Alloy |
| Series | XMLA |
| Maximum Operating Temperature | 158°C |
| Enclosure Rating | IP65 with plug-in connector, IP66 with terminal connections |
| Standards/Approvals | LROS, CCC, BV, EN, EAC, CSA, UL, CE |
| Maximum Pressure Measurement | 10bar |
| Minimum Pressure Measurement | 0bar |
| Maximum Supply Voltage | 240V ac |
| Media Measured | Air, Fresh Water, Hydraulic Oil, Sea Water |
| Operating rate | up to 120 operations / min. for diaphragm and 60 / min. for piston |
| Media connection | 1/4" NPT |
| Conduit connection | 1/2" NPT |
Key Features
- Designed for panel mounting with zinc alloy housing for robust protection.
- Operates at maximum supply voltage of 240V AC.
- Meets multiple international standards including LROS, CCC, BV, EN, EAC, CSA, UL, and CE.
- IP65 and IP66 rated for dust and water resistance, suitable for harsh environments.
- Measures pressures for media such as air, fresh water, hydraulic oil, and sea water.
- Temperature operating range from -25°C to +70°C, with maximum operating temperature up to 158°C.
- Includes one normally open and one normally closed snap acting contacts.
- Equipped with 1/4" NPT media connection and 1/2" NPT conduit connection.
Product Description
Telemecanique Sensors XMLA010A2S13 pressure switch is a high-quality industrial control device designed for monitoring pressure in hydraulic, pneumatic, and fluid systems. Featuring a zinc alloy housing, it withstands harsh operating conditions and ensures longevity in demanding applications.
This pressure switch covers a pressure measurement range from 0 bar to 10 bar, with an accuracy of 2%, making it suitable for precise pressure control in automation and control circuits. It is compatible with various media including air, fresh water, hydraulic oil, and sea water, providing versatility for multiple industrial sectors such as manufacturing, water treatment, and HVAC.
The device supports a maximum supply voltage of 240V AC and operates reliably within a temperature range of -25°C to +70°C, withstanding maximum temperatures up to 158°C. It is designed for panel mounting, featuring one normally open (NO) and one normally closed (NC) snap acting contact for flexible switching configurations.
Enclosure ratings IP65 (with plug-in connector) and IP66 (with terminal connections) ensure excellent dust and water ingress protection for operation in tough environments. The pressure switch is equipped with a 1/4" NPT media connection and a 1/2" NPT conduit connection for easy integration into existing systems.
The operating rate supports up to 120 operations per minute for diaphragm switches and 60 per minute for piston types, ensuring durability and performance under frequent cycling. The external pressure setting window allows convenient adjustment of switching thresholds, enhancing usability.
This product is manufactured in Morocco and complies with internationally recognized standards including LROS, CCC, BV, EN, EAC, CSA, UL, and CE, assuring quality and safety standards adherence in industrial applications.
Designed for controlling pressure of hydraulic oils, fresh water, sea water, air, steam, and corrosive or viscous fluids. Fixed differential pressure switch for single threshold detection. Robust zinc alloy housing and panel mount design.
High IP ingress protection ratings. Compatible with multiple media types. Wide operating temperature range and high maximum temperature tolerance. Multiple international certifications for reliable industrial use. Supports frequent operation cycles for demanding applications.
Easy installation enabled by standard NPT fittings. Explore additional pressure sensor and switch solutions available in the Electronics & Electricals > Sensors > Pressure Switch category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It measures pressures from 0 bar to 10 bar, making it suitable for various applications in industrial settings.
This model operates at a maximum supply voltage of 240V AC.
It is compatible with air, fresh water, hydraulic oil, and sea water, providing versatility for different applications.
The accuracy of the XMLA010A2S13 pressure switch is 2%.
The pressure switch has an IP65 rating with a plug-in connector and an IP66 rating with terminal connections, ensuring protection against dust and water ingress.
It operates within a temperature range of -25°C to +70°C, with a maximum operating temperature of 158°C.
It is designed for panel mounting, allowing for easy installation in various settings.
The operating rate supports up to 120 operations per minute for diaphragm switches and 60 per minute for piston types.
This unit is equipped with a 1/4" NPT media connection and a 1/2" NPT conduit connection for easy integration into existing systems.
It complies with multiple international standards including LROS, CCC, BV, EN, EAC, CSA, UL, and CE, ensuring quality and safety in industrial applications.
It includes one normally open (NO) and one normally closed (NC) snap acting contact for flexible switching configurations.
The XMLA010A2S13 is manufactured in Morocco.
