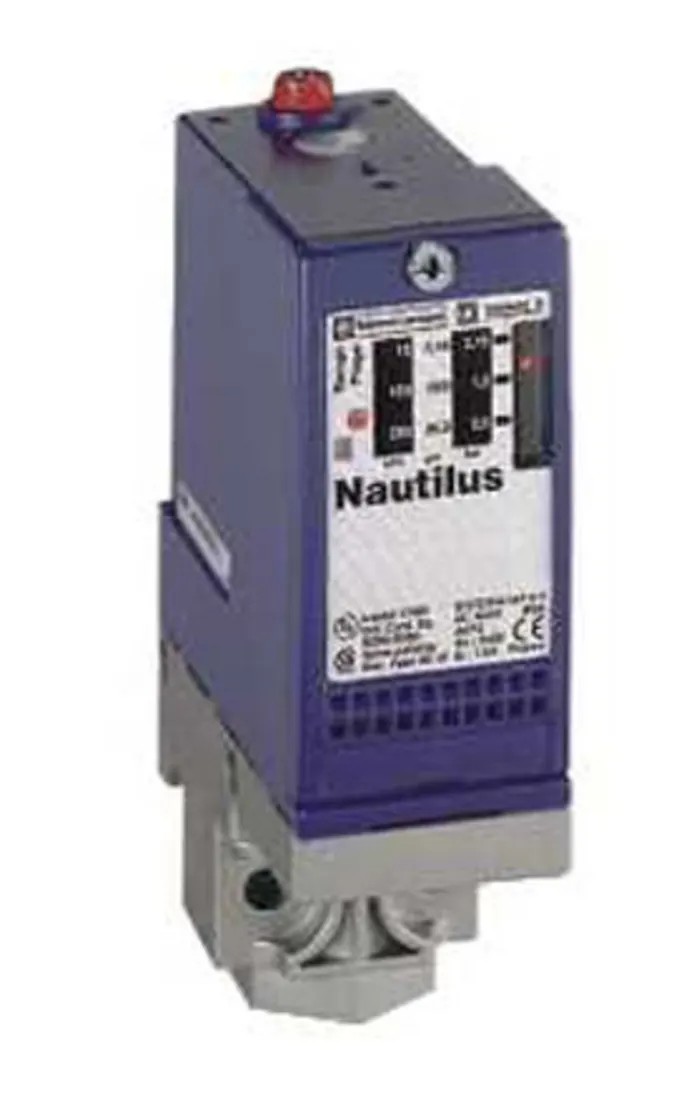

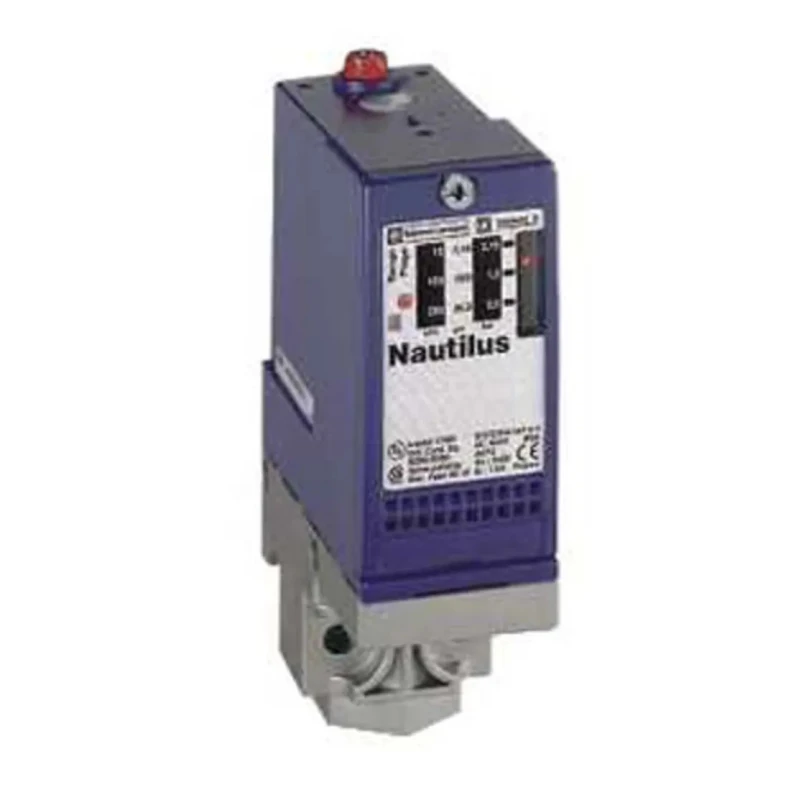

Telemecanique Sensors XMLA Series Pressure Switch 0 bar to 70 bar Panel Mount Zinc Alloy Housing IP65 IP66 IP XMLA070E2S11

Telemecanique Sensors XMLA070E2S11 Pressure Switch is engineered for precise control and monitoring of pressure in a wide range of industrial applications including hydraulic systems, water treatment, HVAC, and automation controls. It operates reliably within a pressure range of 0 bar to 70 bar, making it suitable for fresh water, sea water, hydraulic oils, air, steam, and corrosive or viscous fluids.

The pressure switch features a robust zinc alloy housing with panel mount installation, providing enhanced durability and easy integration into existing control panels. It possesses an IP65 enclosure rating with a plug-in connector and IP66 rating with terminal connections, which ensures protection against dust and water ingress in demanding environments.

With a maximum operating temperature of 158°C and an operating temperature range of -25°C to +70°C, this device is versatile enough for various industrial and laboratory environments. It includes 1 Normally Open (NO) and 1 Normally Closed (NC) snap acting contacts, capable of managing up to 120 operations per minute for diaphragm types and 60 per minute for piston types.

The switch accepts media connections sized at 1/4" NPT and conduit connections at 1/2" NPT, compatible with standard piping configurations. This product complies with multiple standards and approvals including EAC, BV, CCC, LROS, CE, EN, UL, and CSA, underscoring its quality and safety.

Designed for precise pressure detection, it offers 2% accuracy and supports a maximum supply voltage of 240V AC, meeting industrial power and safety requirements. The product is manufactured in Morocco and is provided in new condition, suitable for industrial, construction, manufacturing, and HVAC applications.

Constructed with durable zinc alloy housing for long-lasting use. IP65 and IP66 rated protection against dust and water ingress. Panel mount type for stable and secure installation. Accurate pressure monitoring between 0 and 70 bar with 2% accuracy.

Suitable for use with fresh water, sea water, hydraulic oils, air, steam, and corrosive fluids. Features 1 NO and 1 NC snap acting contacts for reliable switching. Operating temperature range from -25°C to +70°C supports diverse environments.

Maximum supply voltage of 240V AC for industrial compatibility. Supports up to 120 operations per minute (diaphragm) and 60 per minute (piston). Media connection 1/4" NPT and conduit connection 1/2" NPT for standard piping.
