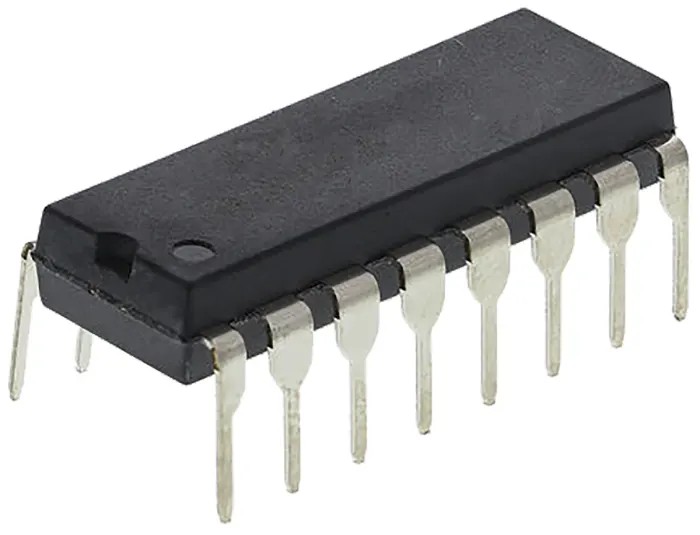

Texas Instruments MOSFET Gate Driver 1.5A 16-Pin 40V PDIP UC3706N

Texas Instruments UC3706N MOSFET Gate Driver is a high-performance power management IC designed for efficient MOSFET and IGBT device driving in industrial and power electronics applications. It features a dual-output driver with a hefty 1.5 ampere output current capability, suitable for demanding switching operations requiring precise gate control.

The device comes in a 16-pin PDIP (Plastic Dual In-line Package) sized at 19.3 mm in length, 6.35 mm in width, and 4.57 mm in height, optimized for through-hole mounting designs with stable mechanical integration in PCB assemblies.

Electrical characteristics include a maximum supply voltage of 40 volts, with fast switching times comprising an 80 ns fall time and a 110 ns rise time, allowing high-speed switching of power transistors with minimal losses. The driver operates reliably across an industrial temperature range from 0°C to 70°C, making it suited for diverse environments in power management roles.

This MOSFET Gate Driver IC supports two outputs, providing capability for driving multiple transistors efficiently and is commonly used in switching power supplies, motor control, and general power conversion circuits. It does not carry automotive standard certifications but is widely adopted in commercial-grade electronic manufacturing.

The Texas Instruments UC3706N product is engineered to enable robust, reliable, and efficient gate drive performance, serving critical industrial, laboratory, manufacturing, and power electronics functions. It integrates seamlessly into control units demanding precise MOSFET/IGBT driving performance.

Provides high 1.5 A output current for driving MOSFETs effectively. Features dual driver outputs to support complex switching circuits. Operates within 0°C to 70°C temperature range ensuring reliability. Compact 16-pin PDIP package measuring 19.3mm length, 6.35mm width, and 4.57mm height.

Supports a maximum supply voltage of 40V with 80ns fall time and 110ns rise time. Designed for through-hole mounting suitable for various industrial and power electronic circuits. Explore the Texas Instruments range of power management ICs and MOSFET Gate Drivers at EnvMart for efficient and reliable performance solutions.
