Pepperl + Fuchs S1SL Series 1-Channel Signal Conditioner Current Input Current Output 2.2-30 V dc Supply S1SL-1AI-1C

Free Delivery in India | Lowest Global Shipping Charges

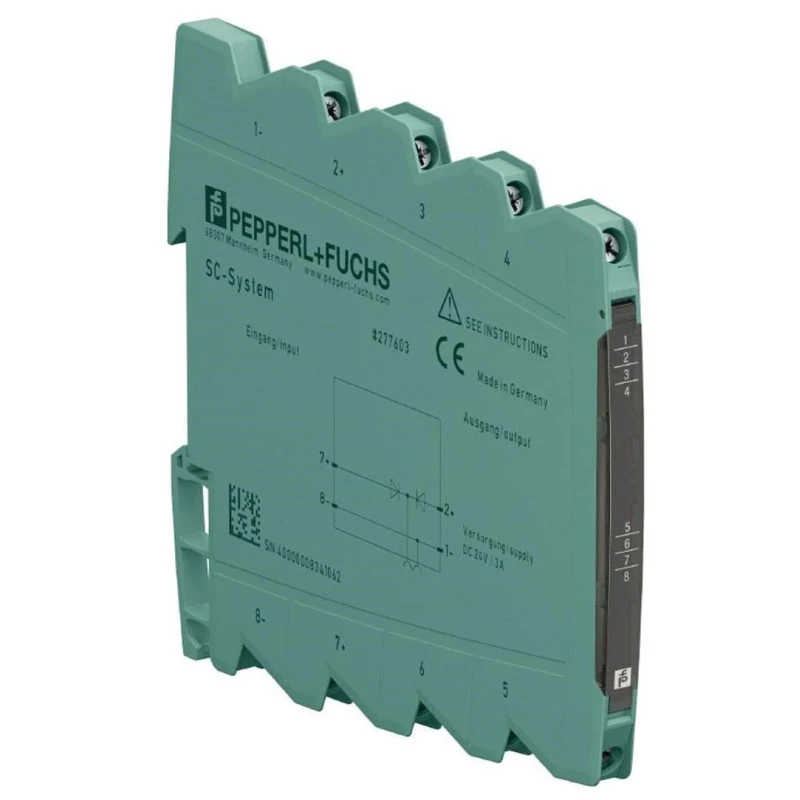

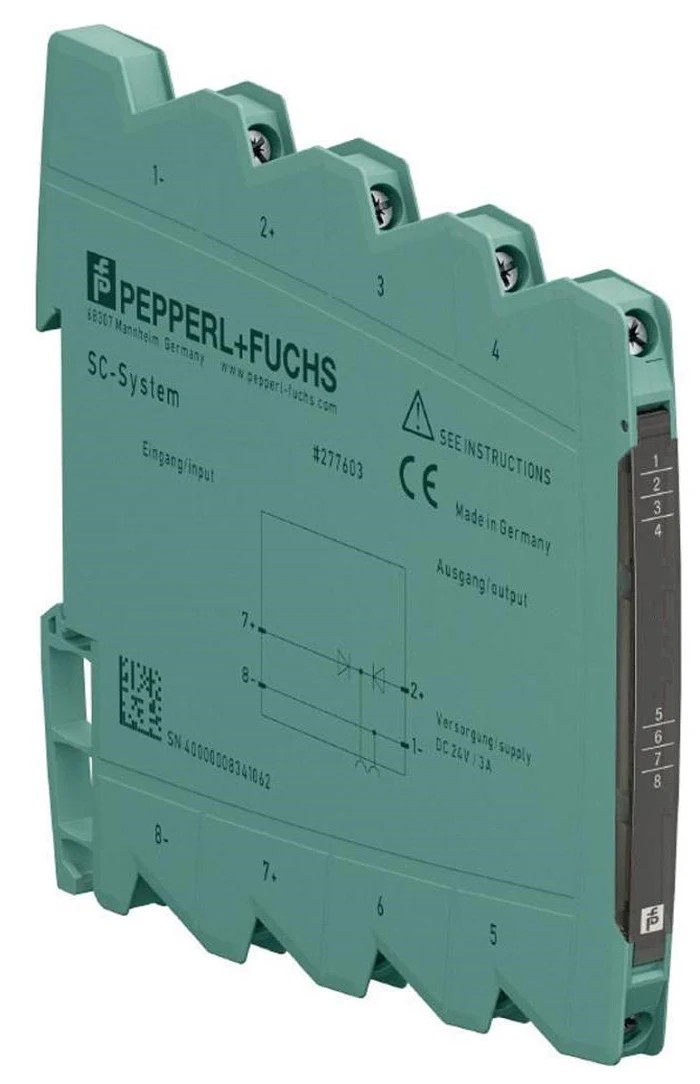

Pepperl + Fuchs S1SL Series 1-Channel Signal Conditioner Current Input Current Output 2.2-30 V dc Supply S1SL-1AI-1C

Name: Pepperl + Fuchs S1SL Series 1-Channel Signal Conditioner Current Input Current Output 2.2-30 V dc Supply S1SL-1AI-1C
Brand: Pepperl + Fuchs
SKU: 202358
Price: 193.58 USD
Availability: InStock



Category Signal Conditioners Brand Pepperl + Fuchs Condition New

Specifications

Country of Origin	Germany
Brand	Pepperl + Fuchs
Model	S1SL-1AI-1C
IP Rating	IP20
Mount Type	DIN Rail
Series	S1SL
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-25°C
Terminal type	Screw
Number Of Channels	1
Output Range	0 → 20 mA, 4 → 20 mA
Supply Voltage	2.2, 30V dc
Hazardous Area Certification	DEMKO 16 ATEX 1750X
Input Signal Type	Current
Signal Conditioner Type	1-Channel Signal Conditioner

Key Features

Supports current input ranges 0 to 20 mA, 4 to 20 mA, and 50 mA.
Provides output current ranges 0 to 20 mA and 4 to 20 mA.
Features galvanic isolation with 300 V operating voltage and 3 kV test voltage.
Compact DIN rail mounting with 6 mm width and 97 mm height.
Wide operating temperature range from -25°C to 70°C.
Equipped with screw terminals and IP20 rating.
Certified to multiple standards including DEMKO 16 ATEX and IECEx.

Product Description

Pepperl + Fuchs S1SL-1AI-1C is a 1-Channel Signal Conditioner designed for precise current signal conversion and isolation in industrial automation applications. It features current input and output capability with input ranges of 0 to 20 mA, 4 to 20 mA, and 50 mA and output ranges of 0 to 20 mA and 4 to 20 mA. Powered by a supply voltage range from 2.2 to 30 V dc, it offers reliable and stable performance complying with DEMKO 16 ATEX hazardous area certification.

The compact DIN rail mount package of 6 mm width and 97 mm height allows for efficient panel installation. Operating within a temperature range from -25°C to 70°C, it is built to withstand harsh industrial environments. The unit includes screw terminals and an IP20 rating for basic protection against solid objects.

Engineered for general-purpose applications, the device provides high-quality galvanic isolation with an operating voltage of 300 V and a test voltage of 3 kV, ensuring signal integrity and safety. Compliance with international standards such as EN 60079-0:2012+A11:2013, EN 61326-1:2013, EN 60079-15:2010, EN 61010-1:2010, UL Approval E106378, IEC 60529:2001, and IECEx Approval IECEx UL 16.0116X underscores its industrial reliability and certification for hazardous environments.

Supports current input ranges 0 to 20 mA, 4 to 20 mA, and 50 mA. Delivers output currents of 0 to 20 mA and 4 to 20 mA. Compact 6 mm width, 97 mm height DIN rail mount. Wide temperature range from -25°C to 70°C for diverse industrial settings.

Galvanic isolation with 300 V operating and 3 kV test voltage. Screw terminal connection and IP20 rating ensure safe wiring. Certified to multiple standards including DEMKO 16 ATEX and IECEx.

This signal conditioner is ideal for industrial process automation, electrical signal isolation, and hazardous area applications. It ensures reliable signal conditioning for enhanced system safety and performance. Explore more industrial Signal Conditioners at EnvMart for tailored automation solutions.
