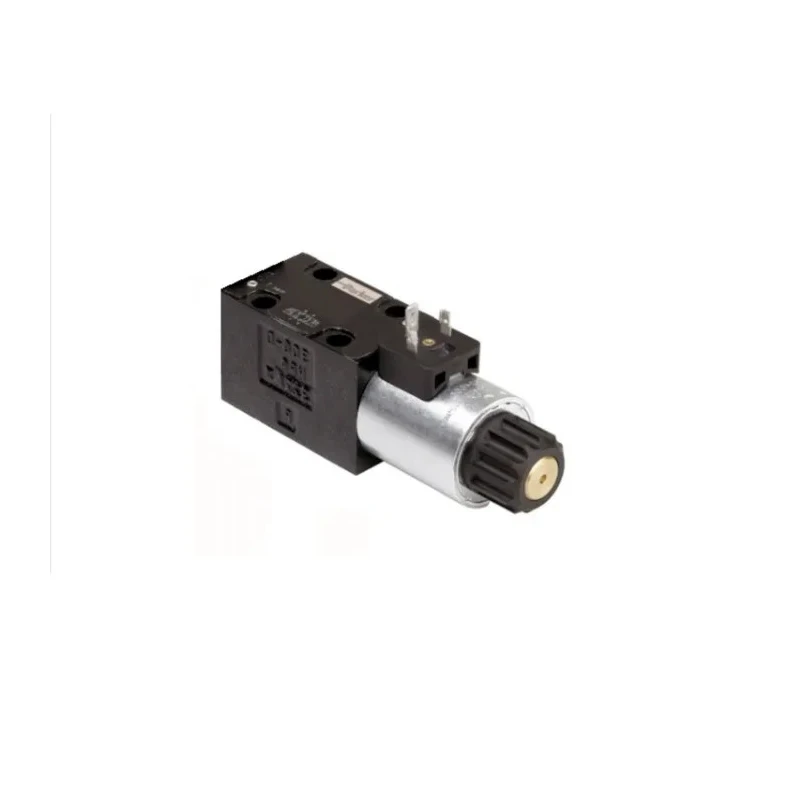

Parker Hydraulic Directional Control Valve DIN, 3 Positions, 4 Ports, 24V DC, Wet Pin Solenoid, D3W020BNJW

Parker D3W020BNJW directional control valve is a high-quality hydraulic valve designed for controlling the direction of hydraulic fluid in industrial applications. It features a DIN mounting pattern, three positions and four ports, operated by a 24V DC wet pin solenoid actuator.

This valve utilizes nitrile butadiene rubber seals ensuring resistance to wear and hydraulic fluid compatibility. It supports a maximum flow rate of 150 liters per minute and can withstand operating pressures up to 350 bar. The valve operates reliably within a temperature range of -25°C to 70°C, making it suitable for a variety of industrial and manufacturing environments.

Conforming to international standards such as ISO 4401 and CETOP RP 121-H, the valve guarantees performance and interchangeability across global hydraulic systems. It offers manual override capabilities and allows mounting in any position, although horizontal mounting is recommended for optimal performance.

Designed to minimize energy use, the valve features a low-pressure drop and supports high switching frequencies up to 10,000 cycles per hour. The wet pin solenoid is threaded in tube style and accommodates wiring up to 50 meters with recommended 3x1.5mm² cable. The valve’s construction complies with EN 175301-803 solenoid connection standards (plug not included).

Three position and four port valve configuration for controlled hydraulic flow. Wet pin solenoid actuation powered by 24V DC supply. Nitrile butadiene rubber seals suited for hydraulic fluid DIN 51524. Maximum flow rate of 150 L/min and maximum operating pressure of 350 bar.

Operating temperature range from -25°C to 70°C for durable performance. Compliance with multiple standards: ISO 4401, DIN 24340, CETOP RP 121-H, EN 175301-803, NFPA D05. Mountable in any position, with recommended horizontal mounting.

Manual solenoid override and low energy, low pressure drop design. Suitable for industrial hydraulic applications requiring reliable directional control.

This Parker D3W020BNJW directional control valve is ideal for use in industrial, manufacturing, construction, and heavy machinery hydraulic systems where precise control of fluid direction and flow is critical. It ensures dependable performance, energy efficiency, and compliance with international quality standards.
