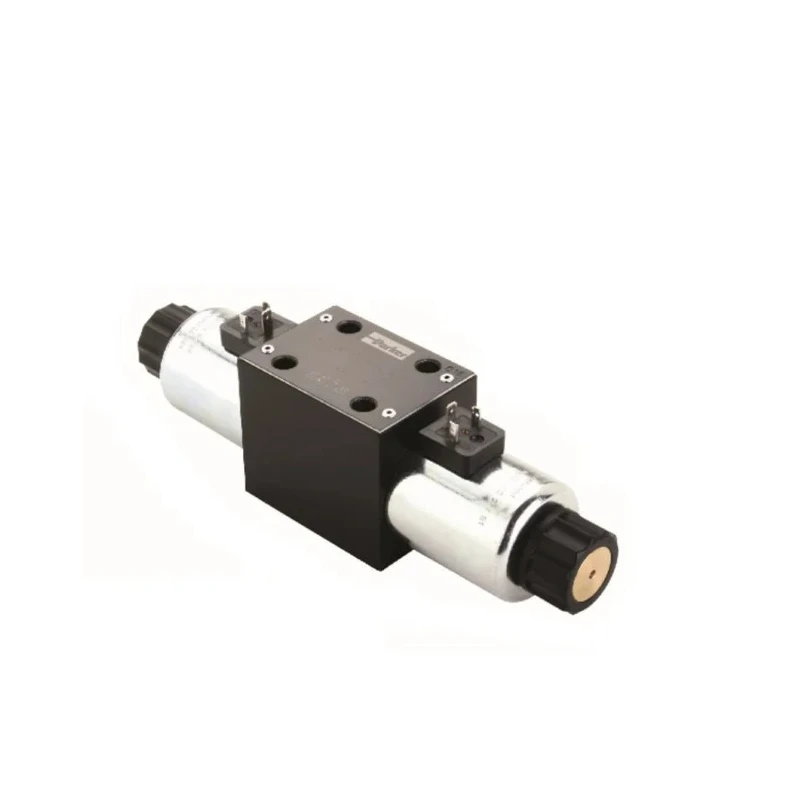

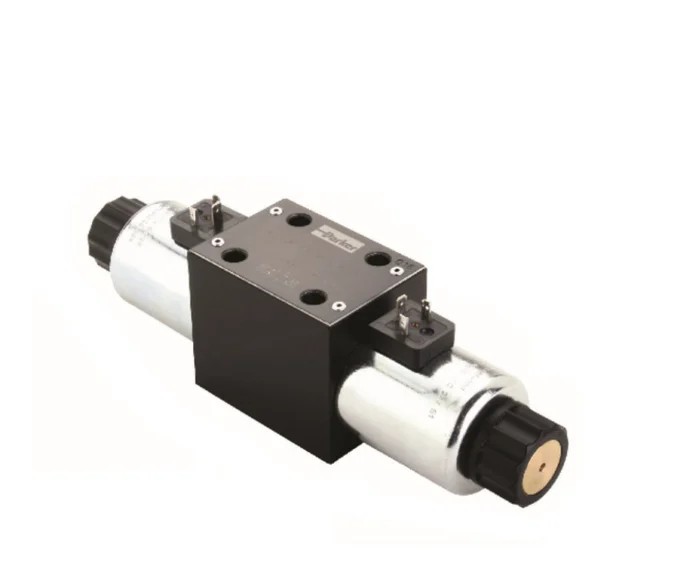

Parker Hydraulic Directional Control Valve CETOP 3 Position 4 Ports Double Solenoid 24V DC 350bar D1VW008CNJW
Specifications
| Country of Origin | India |
|---|---|
| Brand | Parker |
| Model | D1VW008CNJW |
| Series | D1VW |
| Number Of Ports | 4 |
| Maximum Operating Temperature | 60°C |
| Number of Positions | 3 |
| Minimum Operating Temperature | -25°C |
| Actuation Type | Solenoid |
| Supply Voltage | 24V dc |
| Spool Type | Type C |
| Mount Pattern | CETOP |
| Solenoid Type | Double |
| Valve Maximum Operating Pressure | 350bar |
Key Features
- Operates with a double solenoid actuation at 24V DC voltage.
- Maximum operating pressure is rated at 350 bar ensuring high durability.
- Spool Type C design supports versatile flow control.
- Suitable for temperatures between -25°C to 60°C for varied environments.
- Provides manual solenoid override and is mountable in any position with horizontal preferred.
- Offers a maximum switching frequency of 15000 operations per hour.
- Features low-pressure drop design with flow rates up to 80 ml/min for energy-efficient operation.
- Compatible with hydraulic oils conforming to DIN 51524 standards.
Product Description
The Parker D1VW008CNJW is a precision hydraulic directional control valve engineered for demanding industrial fluid power applications requiring CETOP 3 mounting pattern compliance.
This valve features a 3-position, 4-port configuration with a Type C spool, allowing effective control of hydraulic circuits.
Powered by a double solenoid with a 24V DC supply voltage, it is designed to withstand maximum operating pressures up to 350 bar and operates reliably within temperatures ranging from -25°C to 60°C.
Its construction provides excellent fluid flow characteristics with low-pressure drop and energy consumption, supporting flow rates up to 80 ml/min. The valve also offers manual solenoid override capability and can be mounted in any position, though horizontal mounting is preferred for optimal performance.
The solenoid connection complies with EN 175301-803 standards, and while the plug is not included, the valve supports wiring up to 50 meters with 3x1.5mm² cable recommended for setup.
This robust valve is especially suitable for use with hydraulic oils adhering to DIN 51524 specifications, making it ideal for a wide range of general industrial hydraulic fluid power applications.
Double solenoid actuation with 24V DC power supply. Maximum operating pressure of 350 bar for heavy-duty usage. 3-position, 4-port CETOP 3 mounting configuration with Type C spool. Operating temperature range from -25°C to 60°C.
Low energy consumption with flow rates up to 80 ml/min. Manual solenoid override for operational flexibility. Recommended wiring specification: 3x1.5mm² cable, max length 50m. Wet pin armature solenoid design threaded into tube for reliability.
Compatible with hydraulic oils conforming to DIN 51524 standards. Suitable for industrial, manufacturing, and fluid power system applications. Explore more hydraulic directional control valves and related components in the Industrial Valves & Valve Fittings category at EnvMart.
Explore more products in our Hydraulic Valves & Manifolds category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this model is rated at 350 bar, making it suitable for heavy-duty applications.
This valve operates with a supply voltage of 24V DC, powered by a double solenoid actuation.
The valve can operate reliably within a temperature range of -25°C to 60°C, accommodating various environmental conditions.
It features a Type C spool design, which supports versatile flow control in hydraulic circuits.
This model has a 4-port configuration, allowing effective management of hydraulic flow.
It supports flow rates of up to 80 ml/min, contributing to energy-efficient operation with low pressure drop.
Yes, it provides a manual solenoid override capability for operational flexibility when needed.
The valve is designed to comply with the CETOP mounting pattern, specifically CETOP 3.
It is compatible with hydraulic oils that conform to DIN 51524 standards, making it suitable for a wide range of applications.
The recommended wiring specification is a 3x1.5mm² cable, with a maximum length of 50 meters for optimal performance.
This hydraulic directional control valve features a 3-position configuration, allowing for versatile control of hydraulic circuits.
The country of origin for this valve is India, indicating where it is manufactured.
