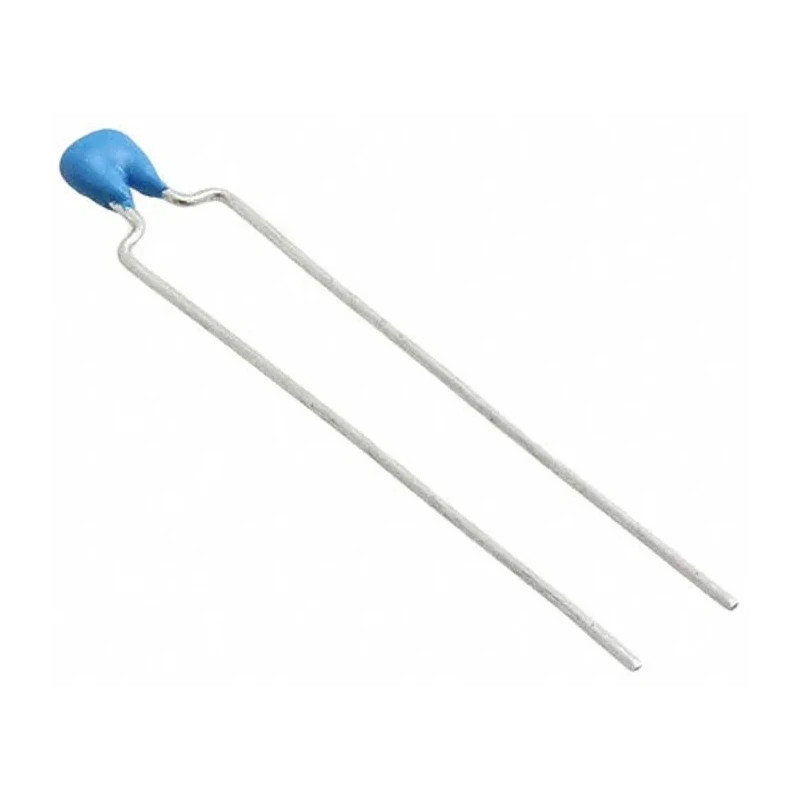

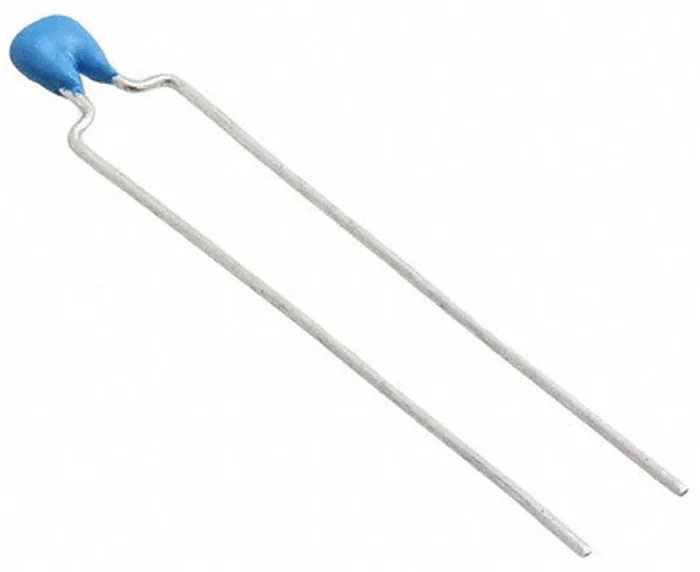

Murata 68 pF Multilayer Ceramic Capacitor, 100V DC, C0G Dielectric, Through Hole Radial, 5 pF Tolerance RDE5C2A680J0M1H03A
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 100V dc |
| Brand | Murata |
| Height | 3.5mm |
| Length | 4mm |
| Model | RDE5C2A680J0M1H03A |
| Packaging | Ammo Pack |
| Width | 2.5mm |
| Mount Type | Through Hole |
| Series | RDE |
| Termination Type | Radial |
| Maximum Operating Temperature | 125°C |
| Tolerance | 5 pF |
| Capacitance | 68pF |
| Minimum Operating Temperature | -55°C |
| Lead Diameter | 0.5mm |
| Dielectric | C0G |
| Suppression Class | Class I |
| Lead Spacing | 5mm |
Key Features
- Compact 4mm length, 3.5mm height, and 2.5mm width dimensions for space-saving PCB layouts.
- Coated with epoxy resin and equipped with tin/copper radial leads for reliable connections.
- Capacitor operates reliably between -55°C and 125°C, supporting various commercial electronics applications.
- Designed for high frequency with low ESR characteristics enhancing performance in demanding circuits.
- Ammo pack packaging ensures protection and ease of handling during assembly.
- Lead spacing at 5mm and lead diameter at 0.5mm suitable for standard through hole PCB mounting.
- Class I suppression class suitable for timing, filtering, and resonant circuit applications.
Product Description
Murata RDE5C2A680J0M1H03A multilayer ceramic capacitor is a precision component designed for commercial and industrial electronic applications requiring stable capacitance and low losses. Featuring 68 pF capacitance with a voltage rating of 100V DC, this capacitor uses a C0G dielectric, known for its excellent temperature stability and low dielectric absorption.
The capacitor measures 4mm in length, 3.5mm in height, and 2.5mm in width, offering a compact form factor suitable for dense circuit boards. It is mounted using a through hole radial lead style with leads spaced 5mm apart, and lead diameter is 0.5mm. The component is epoxy resin coated with tin/copper radial leads to provide durability and solderability during PCB assembly.
Operating temperature ranges from -55°C to 125°C allow usage in a wide array of commercial electronics, white goods, and other consumer devices. With low equivalent series resistance (ESR), it is optimized for high-frequency performance, making it ideal for filtering, tuning, and timing applications.
This capacitor complies with the RoHS directive and meets ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards, providing assurance for quality and environmental safety in manufacturing. Notably, the product is not suitable for automotive-related power train and safety equipment.
Packaging in ammo packs enables safe transport and storage, preventing damage and facilitating ease of use in production lines. Compact 4mm x 3.5mm x 2.5mm dimensions for efficient PCB layout. Through hole radial mount with 5mm lead spacing and 0.5mm lead diameter.
Epoxy resin coated with tin/copper radial leads for robust connections. Stable C0G dielectric ensures low loss and temperature stability. Wide operating temperature range from -55°C to 125°C for versatile applications. Low ESR for enhanced high-frequency performance.
RoHS compliant and meets relevant industry standards. Ammo pack packaging for protection and ease of handling.
Widely used in electronics manufacturing, repair, laboratory projects, and commercial devices, this Murata Multilayer Ceramic Capacitor is a reliable choice for engineers and technicians seeking quality passive components. Explore more capacitors and electronic components in the EnvMart catalog for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance value of this model is 68 pF.
It has a maximum voltage rating of 100V DC.
This capacitor uses a C0G dielectric, which is known for its excellent temperature stability and low dielectric absorption.
The capacitor measures 4mm in length, 3.5mm in height, and 2.5mm in width.
It operates reliably between -55°C and 125°C.
The lead spacing is 5mm, and the lead diameter is 0.5mm, suitable for standard through hole PCB mounting.
It is packaged in ammo packs, which provide protection and ease of handling during assembly.
It is suitable for timing, filtering, and resonant circuit applications in commercial electronics.
The tolerance level is 5 pF.
This model features a radial termination type, designed for through hole mounting.
Yes, it complies with the RoHS directive and meets ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards.
