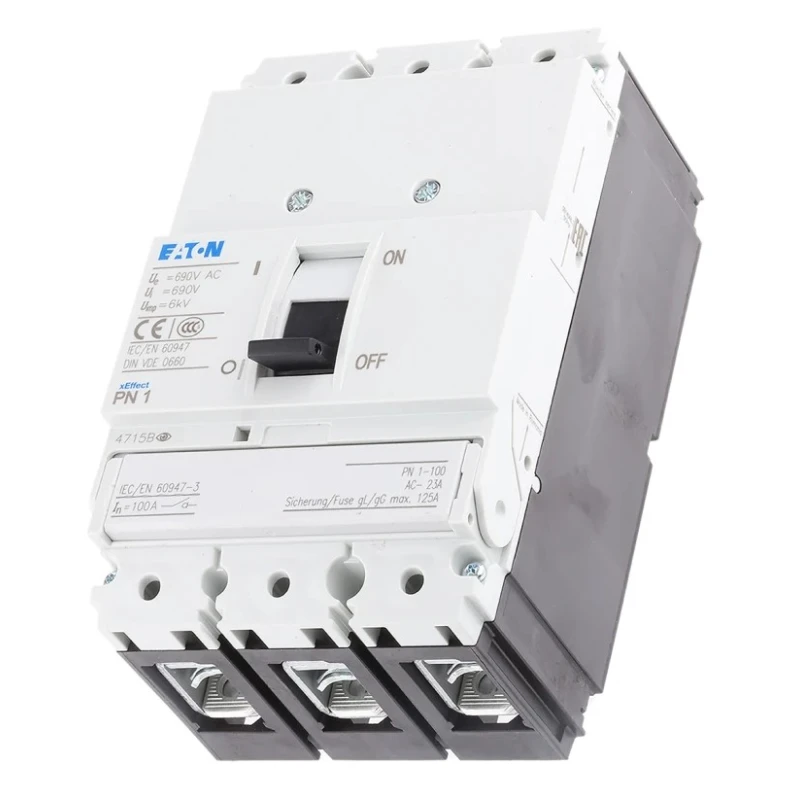

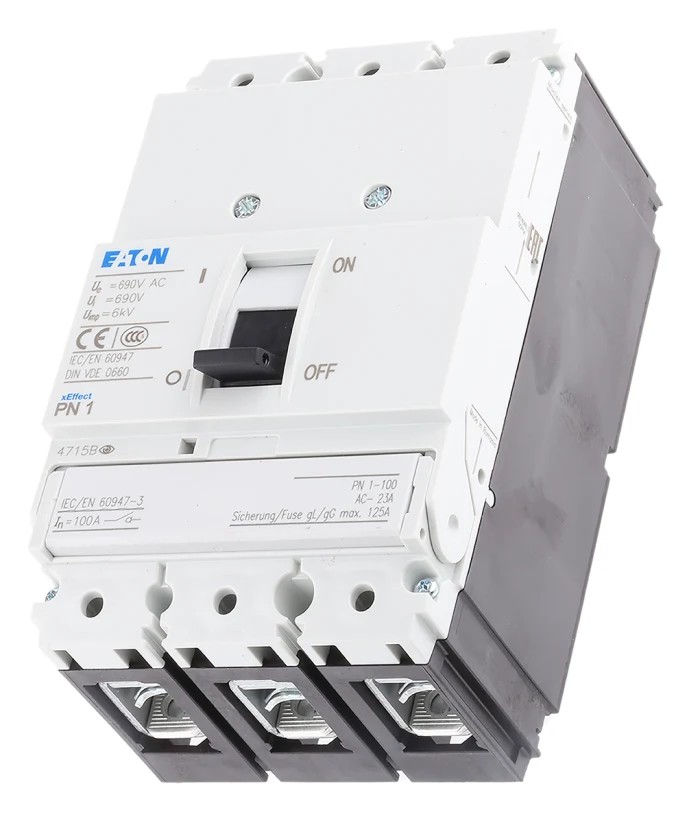

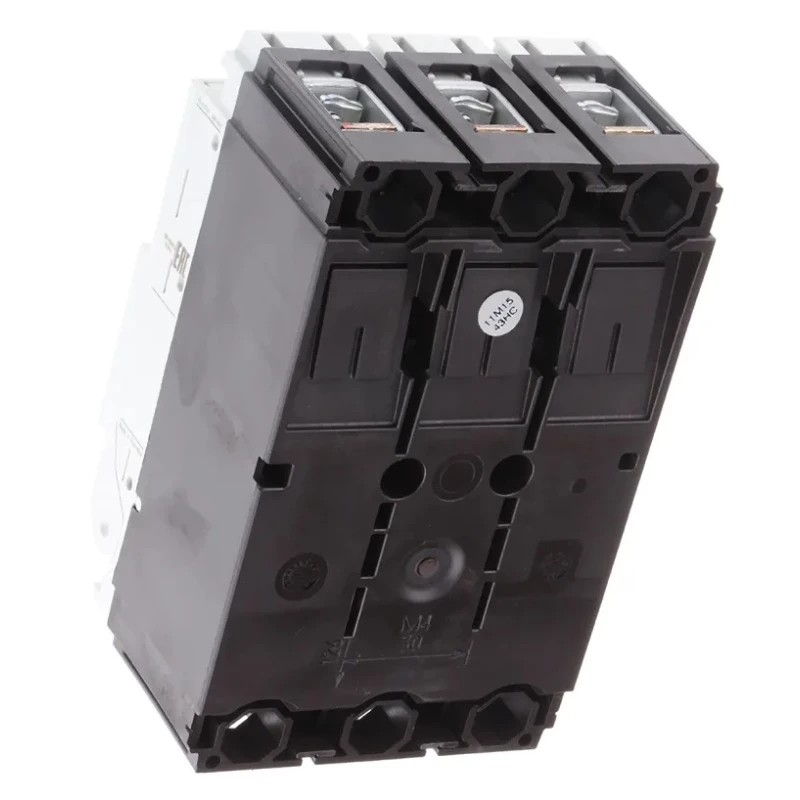

Eaton Molded Case Circuit Breaker 1-Pole 100A 690V AC Thermal Magnetic Lever Reset PN1 Series 259141 PN1-100
Specifications
| Country of Origin | India |
|---|---|
| Brand | Eaton |
| Height | 155.2mm |
| Model | 259141 PN1-100 |
| Depth | 84.5mm |
| Width | 145mm |
| Mount Type | Fixed |
| Current Rating | 100A |
| Series | PN1 |
| Terminal type | Screw |
| Breaking Capacity | 80kA |
| Number of Poles | 1 |
| Standards/Approvals | VDE, IEC, EN |
| Rated AC Voltage | 690V ac |
| Tripping Mechanism | Thermal Magnetic |
| Reset Actuator Type | Lever |
| Cooper Bussmann 1.5A Cartridge Fuse, 6.3 x 32mmBrand | Cooper Bussmann |
| NZM7 3 pole circuit interruptor,100ABrand | Moeller |
Key Features
- Single pole circuit breaker with 100A current rating for reliable protection.
- Breaking capacity of 80kA ensures high fault interrupting capability.
- Fixed mounting type suited for industrial electrical installations.
- Thermal magnetic tripping mechanism provides accurate overload and short circuit protection.
- Lever-type reset actuator allows easy manual switching.
- Rated for a voltage of 690V AC compatible with industrial power systems.
- Screw type terminals ensure secure electrical connections.
- Compact dimensions of 155.2mm height, 145mm width, and 84.5mm depth.
Product Description
Eaton 259141 PN1-100 Molded Case Circuit Breaker is a high-quality 1-pole breaker designed for industrial and commercial electrical protection applications. It features a 100A current rating with a breaking capacity of 80kA, enabling it to handle significant fault currents reliably.
This circuit breaker uses a thermal magnetic tripping mechanism, providing precise protection against overloads and short circuits. Its lever-type reset actuator offers convenient manual operation, while fixed mounting suits permanent installations in electrical panels.
The device operates at a rated AC voltage of 690V and features screw-type terminals that ensure secure and reliable electrical connections. Its compact form factor with dimensions of 155.2mm height, 145mm width, and 84.5mm depth helps in space-efficient panel design.
Eaton's PN1 series breakers conform to VDE, IEC, and EN standards, reflecting their adherence to international safety and quality norms. This breaker also functions effectively as a main switch disconnector for isolating electrical circuits during maintenance or emergency situations.
Single pole breaker for precise circuit control. Thermal magnetic tripping mechanism for dependable protection. Rated to operate at 690V AC with 100A current rating. Breaking capacity of 80kA suitable for demanding industrial loads.
Lever reset actuator for simple manual operation. Compliant with VDE, IEC, and EN standards for quality assurance. Fixed mount type for secure electrical panel installation. Screw terminals provide stable and safe connections.
Compact size optimizes panel space usage. Reliable main switch disconnector capability included.
This Molded Case Circuit Breaker supports diverse industrial, manufacturing, electrical distribution, and automation system applications, ensuring safe and efficient circuit protection. Explore related Eaton circuit breakers on EnvMart for comprehensive electrical protection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 100A, making it suitable for various industrial applications.
The breaking capacity is 80kA, allowing it to handle significant fault currents effectively.
It utilizes a thermal magnetic tripping mechanism for accurate overload and short circuit protection.
The rated AC voltage for this circuit breaker is 690V, making it compatible with industrial power systems.
The dimensions are 155.2mm in height, 145mm in width, and 84.5mm in depth.
This unit is a fixed mount type, designed for secure installation in electrical panels.
It features screw-type terminals, ensuring secure and reliable electrical connections.
This breaker conforms to VDE, IEC, and EN standards, reflecting adherence to international safety and quality norms.
It has a lever-type reset actuator, allowing for easy manual operation.
It supports diverse applications in industrial, manufacturing, electrical distribution, and automation systems.
This model is a single pole circuit breaker, providing precise circuit control.
The country of origin for this product is India.
