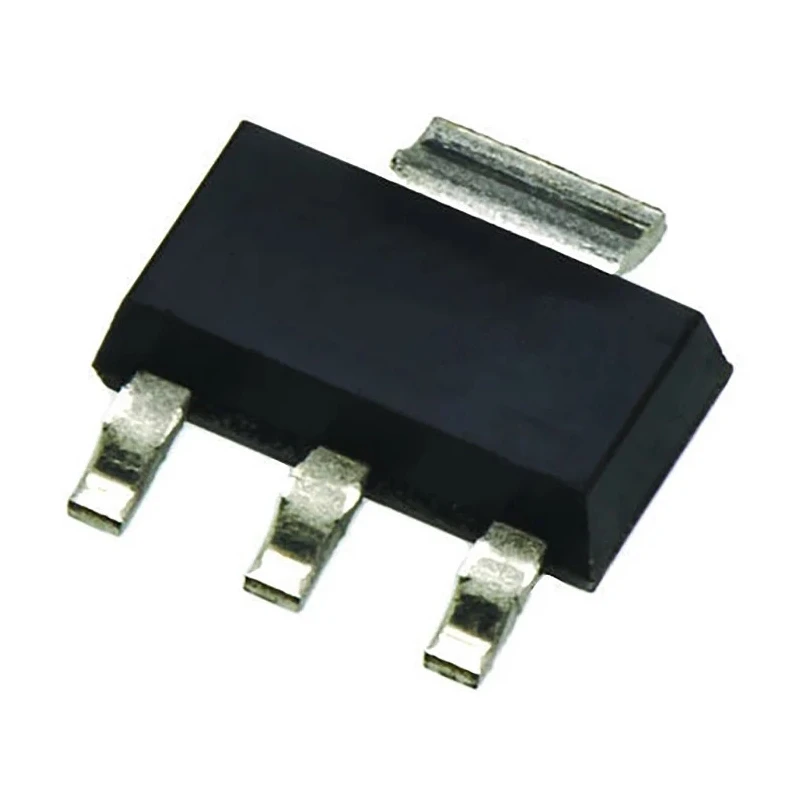

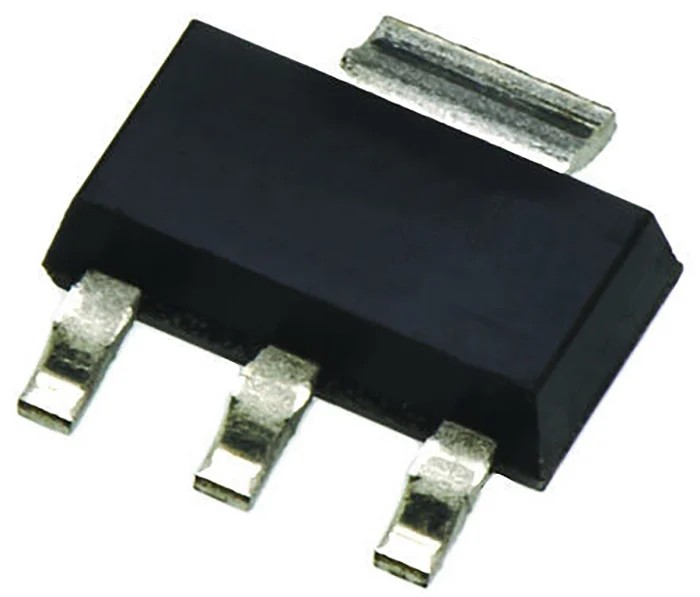

ROHM 5-Channel Low Dropout Voltage Regulator, 200 mA Output Current, 3.3V Fixed Output, SOT-223 4-Pin BD433M2FP3-CE2

Free Delivery in India | Lowest Global Shipping Charges

ROHM 5-Channel Low Dropout Voltage Regulator, 200 mA Output Current, 3.3V Fixed Output, SOT-223 4-Pin BD433M2FP3-CE2

Name: ROHM 5-Channel Low Dropout Voltage Regulator, 200 mA Output Current, 3.3V Fixed Output, SOT-223 4-Pin BD433M2FP3-CE2
Brand: ROHM
SKU: 200414
Price: 1.31 USD
Availability: InStock



Category Voltage Regulator Brand ROHM Condition New

Specifications

Country of Origin	India
Brand	ROHM
Height	1.6mm
Length	6.53mm
Model	BD433M2FP3-CE2
Width	3.43mm
Mount Type	Surface
Output type	Fixed
Series	BD433M2FP
Output Current	200mA
Maximum Operating Temperature	150°C
Package Type	SOT-223
Load Regulation	30 mV
Minimum Operating Temperature	-40°C
Polarity	Positive
Regulator Type	Low Dropout Voltage
Number of outputs	5
Maximum Input Voltage	42V
Output Voltage	3.3V
Quiescent Current	40μA
Line Regulation	30 mV
Standards/Approvals	RoHS
Minimum Input Voltage	3V
Pin Count	4

Key Features

5 output channels provide versatile power regulation options.
Low dropout voltage supports efficient voltage regulation.
Surface mount SOT-223 4-pin package for compact PCB integration.
Low quiescent current of 40μA ensures minimal power loss during operation.
Wide operating temperature range from -40°C to 150°C for robust performance.
Maximum input voltage rating of 42V allowing flexible supply voltage.
Fixed positive output polarity ideal for stable power applications.
RoHS compliant, ensuring environmentally friendly component usage.

Product Description

ROHM BD433M2FP3-CE2 is a 5-Channel Low Dropout (LDO) Voltage Regulator designed to provide stable fixed output voltage of 3.3V with an output current capacity of 200 mA. Featuring a compact SOT-223 4-pin surface mount package, this regulator is suitable for integration into dense electronic assemblies.

The device supports a wide input voltage range from 3V up to 42V and operates reliably over a wide temperature range from -40°C to 150°C. The low dropout characteristic ensures minimal voltage differential between input and output, improving power efficiency and reducing heat dissipation.

This voltage regulator is designed with a low quiescent current of only 40 μA, reducing power consumption during standby and making it ideal for battery-powered or low-power electronic systems. The line regulation and load regulation of 30 mV each ensure consistent voltage under variable load and supply conditions.

The ROHM BD433M2FP3-CE2 features a fixed positive polarity output and does not employ switching regulation, thereby minimizing electrical noise, which is beneficial for sensitive analog or RF circuits.

The product is RoHS compliant, aligning with contemporary environmental regulations for electronic components. 5 output channels provide versatile power regulation options. Low dropout voltage supports efficient voltage regulation.

Surface mount SOT-223 4-pin package for compact PCB integration. Low quiescent current of 40μA ensures minimal power loss during operation. Wide operating temperature range from -40°C to 150°C for robust performance. Maximum input voltage rating of 42V allowing flexible supply voltage.

Fixed positive output polarity ideal for stable power applications. RoHS compliant, ensuring environmentally friendly component usage. Line and load regulation both at 30 mV for stable output under varying conditions.

This voltage regulator is widely used in electronic components, power management ICs, communication devices, industrial equipment, and other applications requiring stable low-voltage supply rails. The compact size and efficiency make it suitable for laboratory, industrial, manufacturing, and commercial electronics design.
