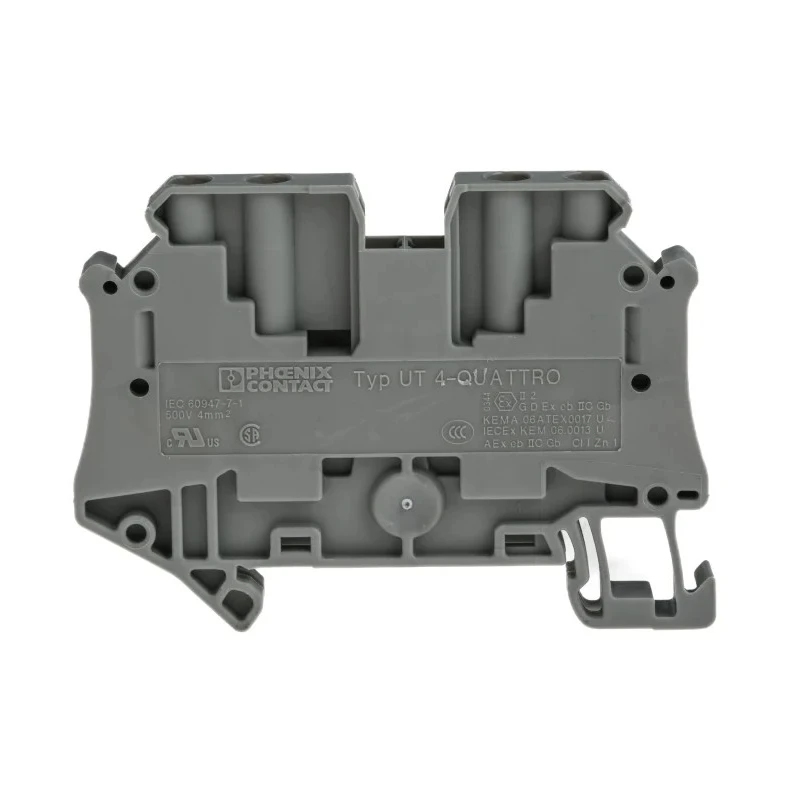

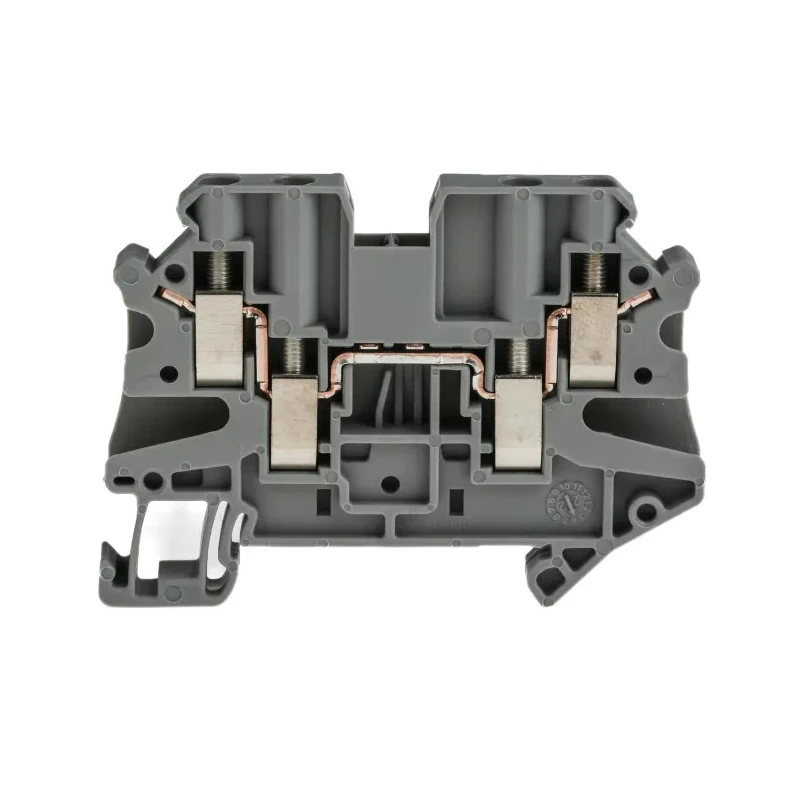

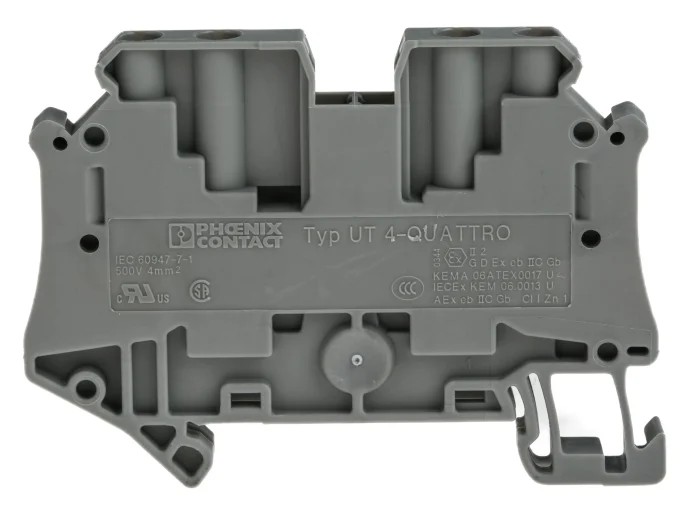

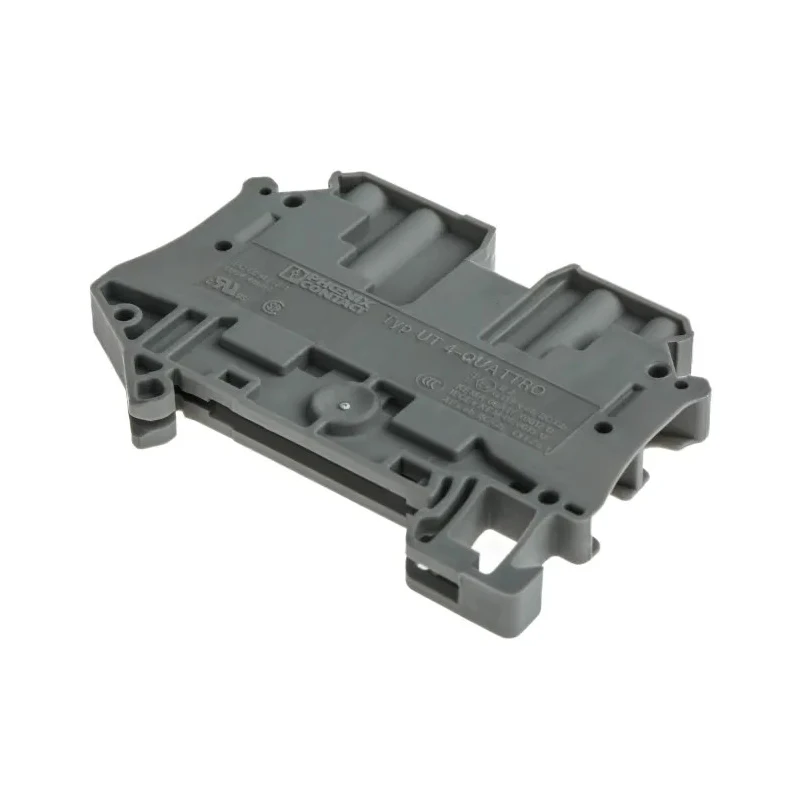

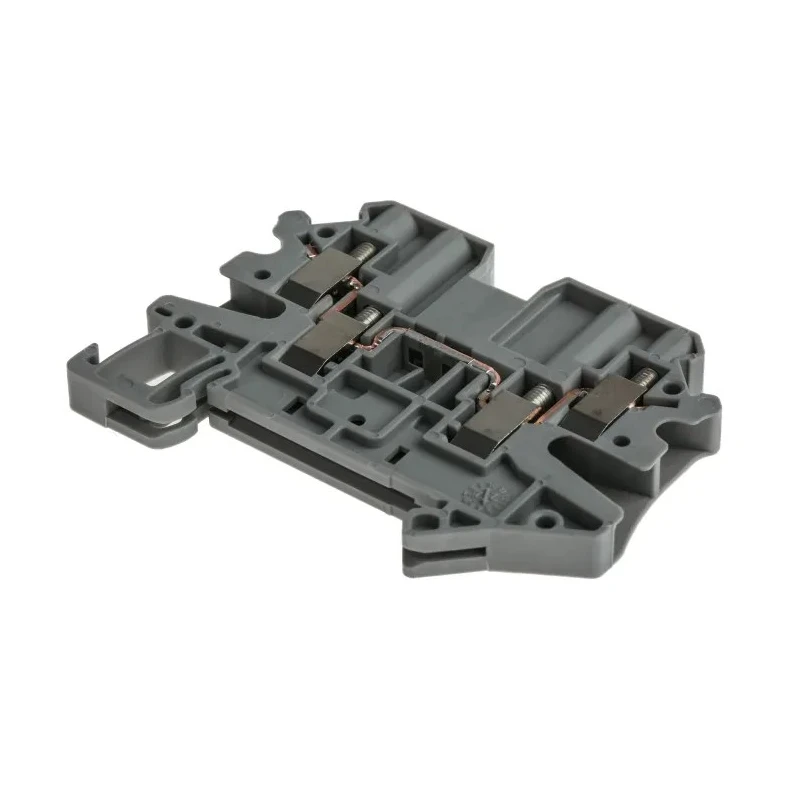

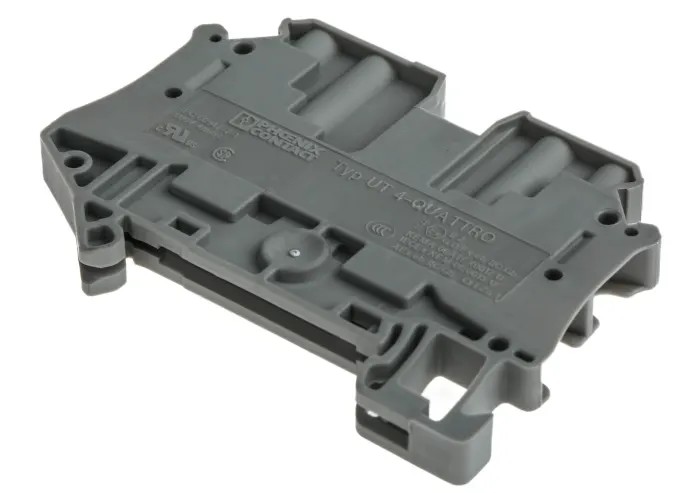

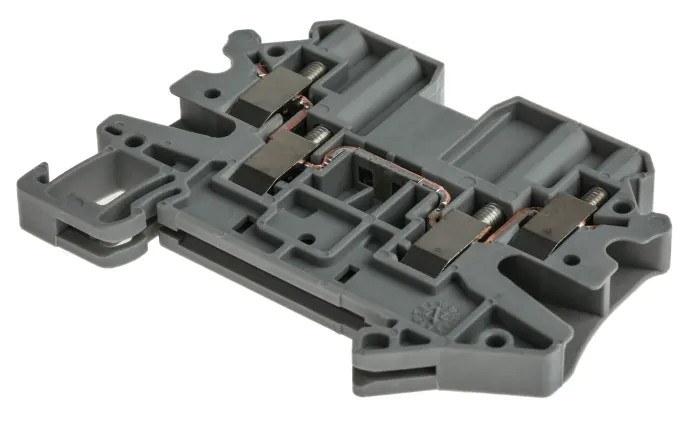

Phoenix Contact UT 4 - QUATTRO Series Grey Feed Through Terminal Block 1-Level Screw Termination 500V 32A ATEX IECEx 3044571

Free Delivery in India | Lowest Global Shipping Charges

Phoenix Contact UT 4 - QUATTRO Series Grey Feed Through Terminal Block 1-Level Screw Termination 500V 32A ATEX IECEx 3044571

Name: Phoenix Contact UT 4 - QUATTRO Series Grey Feed Through Terminal Block 1-Level Screw Termination 500V 32A ATEX IECEx 3044571
Brand: PHOENIX CONTACT
SKU: 200384
Price: 4.06 USD
Availability: InStock



Category Terminal Block Brand PHOENIX CONTACT Condition New

Specifications

Country of Origin	Germany
Voltage	500V
Brand	Phoenix Contact
Colour	Grey
Model	3044571
Series	UT 4 - QUATTRO
Termination Type	Screw
Maximum Operating Temperature	105°C
Number of Levels	1
Sub Type	Feed Through
Minimum Operating Temperature	-60°C
Hazardous Area Certification	ATEX, IECEx
Standards/Approvals	CSA
Minimum Wire Size AWG	26AWG
Maximum Wire Size AWG	10AWG
Cable CSA	0.14, 6mm²
Terminal Block Current	32A

Key Features

Supports wire sizes from 26 AWG to 10 AWG for versatile conductor compatibility.
Features a 1-level grey polyamide housing offering robust insulation and operator protection.
Certified for hazardous environments with ATEX and IECEx approvals.
Designed for durability in temperature range from -60°C to 105°C suitable for harsh conditions.
Meets CSA and UL 94-V0 standards ensuring flame retardancy and compliance.
Ideal for railway applications complying with DIN EN 50155 standard for rolling stock electronics.
Includes large surface marking area for easy identification of connections.
Offers effective over-voltage protection enhancing reliability in industrial settings.

Product Description

Phoenix Contact 3044571 UT 4 - QUATTRO series feed through terminal block is designed for industrial and railway applications requiring secure and flexible electrical connections. The terminal block supports a wide conductor size range from 0.14 mm² (26 AWG) up to 6 mm² (10 AWG), making it suitable for various wire gauges. Its robust screw termination ensures a secure mechanical and electrical connection that protects wire strands from damage, reducing maintenance needs.

This terminal block is rated for 32 A current at 500 V AC/DC, capable of handling industrial power distribution and control system requirements. Its polyamide housing provides high insulation and operator safety while maintaining stability within a broad temperature range (-60°C to 105°C), accommodating harsh environmental conditions.

Certified with ATEX and IECEx hazardous area approvals, this product is suitable for explosive atmosphere environments. It also meets CSA approval and complies with UL 94-V0 flammability standards, offering a self-extinguishing design to prevent fire propagation.

The product is constructed in Germany and conforms to DIN EN 50155, making it compliant for use in railway rolling stock electronic equipment. Its large surface area for connection marking aids clear identification during installation and maintenance.

The UT 4 - QUATTRO series supports four-wire connections with grey and green/yellow screw terminals, rated at 500 V and 39 A for cables up to 4 mm². Terminal covers are available as accessories within the Phoenix Contact CLIPLINE UT range to enhance safety and hygiene.

Supports wire sizes from 26 AWG to 10 AWG. Operates reliably between -60°C and 105°C. ATEX and IECEx rated for hazardous locations. Meets CSA and UL 94-V0 standards. Suitable for railway applications per DIN EN 50155. Constructed with durable grey polyamide housing.

Includes large marking surfaces for connection clarity. Provides over-voltage protection and insulation. Compatible with CLIPLINE UT accessories.

This terminal block is a reliable component for industrial automation, power distribution, railway electrification, and hazardous area systems. Browse the Electronics & Electricals category on EnvMart to discover compatible Terminal Blocks and accessories from trusted brands including Phoenix Contact.
