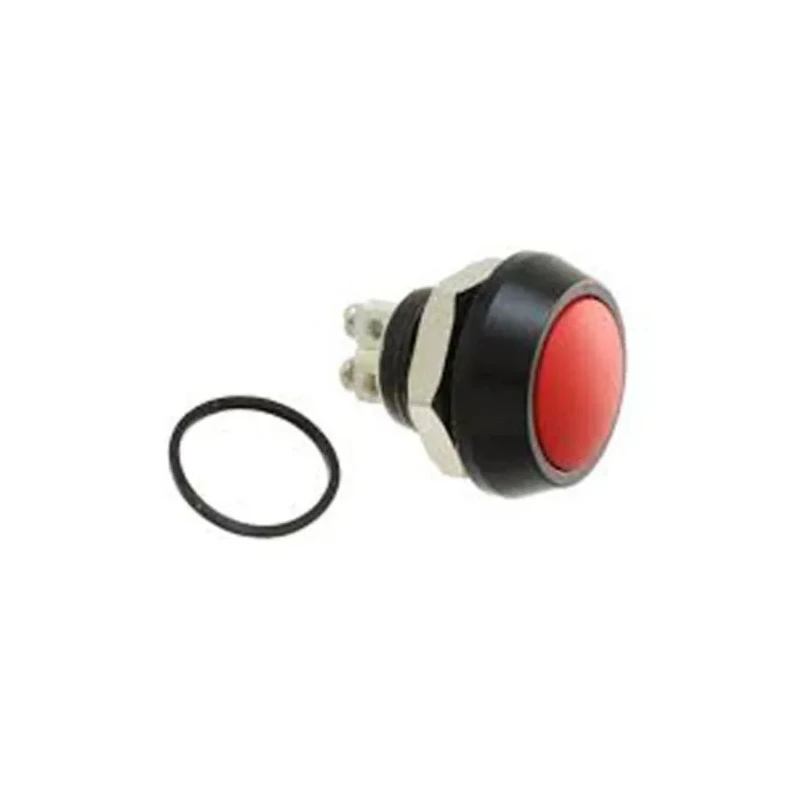

Bulgin Push Button Switch Momentary Panel Mount 12 mm Cutout SPST Amber Blue Green Orange Red Yellow LED IP67 MMP0120/ARDS
Specifications
| Country of Origin | China |
|---|---|
| Brand | Bulgin |
| Model | MMP0120/ARDS |
| IP Rating | IP67 |
| Mount Type | Panel |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | SPST |
| Switch Configuration | Push to Make |
| Minimum Operating Temperature | -25°C |
| Panel Cutout Size | 12 mm |
| Terminal type | Screw |
| Standards/Approvals | RoHS |
| LED Colour | Amber, Blue, Green, Orange, Red, Yellow |
| Switch Operation | Momentary |
| Actuator Colour | Red |
| Contact DC Voltage | 36V dc |
| Actuator Style | Round |
| Switch Contact Current | 2A |
| Contact AC Voltage | 36V ac |
| • Choice of Termination, depending on part code suffix | S - Screw Terminals, P - 2mm x 0.5mm Pin Terminals |
Key Features
- The switch has a round actuator style with a diameter of 12 mm and a raised domed profile.
- It supports both 36V AC and DC contact voltages with a maximum contact current of 2A.
- The panel mounting provides a secure fitting with vandal-resistant qualities.
- The switch operates within a temperature range of -25°C to 55°C.
- Choice of termination types includes screw terminals and pin terminals depending on part code suffix.
- The product is RoHS compliant and made with options for stainless steel, nickel plated brass, or anodized aluminum body materials.
- Designed for industrial and automation applications needing reliable, durable push button switching.
- Offers front panel sealing to IP65 with variants reaching IP67 protection level for enhanced environmental resistance.
Product Description
Bulgin MMP0120/ARDS Push Button Switch is a precision-engineered, momentary contact switch ideal for panel mounting in electrical, automation, and industrial control systems. The switch features a 12 mm diameter round actuator with a raised dome profile, providing ease of use and tactile feedback.
This switch is designed to handle both AC and DC voltages up to 36V with a contact current of 2A, making it suitable for low power control circuits. The product offers multiple LED colour options - Amber, Blue, Green, Orange, Red, and Yellow - for visual indication capabilities without illumination in the base model.
The unit is vandal resistant with a secure panel mounting system and is front panel sealed to IP65, with some variants rated for IP67 ingress protection, ensuring reliable operation even in harsh environments.
The switch is RoHS compliant, meeting environmental and safety standards required in industrial settings. Multiple body materials are offered, including stainless steel, nickel plated brass, and black anodized aluminum with PBT buttons in various standard colours for durability and customization.
Operating temperature ranges from -25°C to 55°C, supporting diverse application environments. Termination choices include screw terminals or 2mm x 0.5mm pin terminals depending on the part code suffix, providing flexibility for various wiring requirements.
Common industrial uses include electrical panels, automation machinery, HVAC controls, and other environments requiring reliable, momentary push-button switching with robust environmental sealing and multiple visual options.
The switch features a 12 mm diameter round actuator with raised dome profile. Supports 36V AC/DC contact voltage and 2A contact current. Options for screw or pin terminal termination available by part code suffix. Body materials include stainless steel, nickel plated brass, and anodized aluminum with PBT button options.
Rated IP65 front panel sealing, with some variants providing IP67 protection. RoHS compliant ensuring environmental safety. Operating temperature from -25°C to 55°C. Multiple LED colour options for visual indication. Explore more Push Button Switches and related components on EnvMart for your industrial and electrical system needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum contact current for this model is 2A.
It operates within a temperature range of -25°C to 55°C.
Termination options include screw terminals and 2mm x 0.5mm pin terminals, depending on the part code suffix.
This switch has an IP67 rating for enhanced environmental resistance, with front panel sealing to IP65.
It supports both AC and DC contact voltages up to 36V.
The switch is available with LED options in Amber, Blue, Green, Orange, Red, and Yellow.
It features a round actuator style with a raised dome profile.
Yes, this model is RoHS compliant, meeting environmental and safety standards.
The required panel cutout size for installation is 12 mm.
The switch configuration type is SPST (Single Pole Single Throw) with momentary operation.
The country of origin for this switch is China.
It is designed for industrial and automation applications requiring reliable push button switching.
