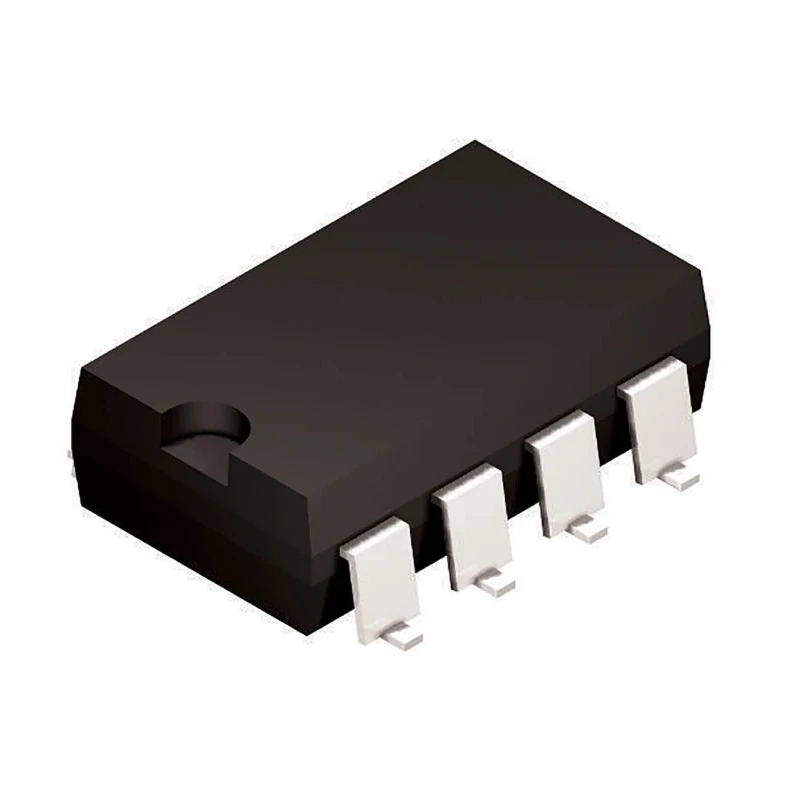

Lite-On DC Input Optocoupler Surface Mount 8-Pin DIP, 1 Channel, 25mA Input Current, Isolation Voltage 5000Vrms LTV-3150-L-S
Specifications
| Country of Origin | India |
|---|---|
| Brand | Lite-On |
| Model | LTV-3150-L-S |
| Mount Type | Surface |
| Series | LTV |
| Maximum Operating Temperature | 105°C |
| Package Type | DIP |
| Minimum Operating Temperature | 0°C |
| Maximum input current | 25mA |
| Number Of Channels | 1 |
| Standards/Approvals | IEC/EN/DIN EN 60747-5-5, UL/ cUL |
| Maximum Forward Voltage | 1.8V |
| Number of Pins | 8 |
| Input Current Type | DC |
| Typical Rise Time | 500ns |
Key Features
- Mount type is surface, allowing easy PCB integration.
- Maximum forward voltage is 1.8V, suitable for low voltage input applications.
- Typical rise and fall times are 500ns ensuring fast signal response.
- Maximum input current is 25mA, appropriate for standard circuit protection.
- Isolation voltage is rated at 5000Vrms providing high electrical isolation between input and output.
- The optocoupler includes a logic output and is compatible with DC input current type.
- Operating temperature ranges from 0°C to 105°C, suitable for various industrial environments.
- Standards and approvals include IEC/EN/DIN EN 60747-5-5 and UL/cUL for quality assurance.
Product Description
Lite-On LTV-3150-L-S is a DC input optocoupler designed for surface mount applications in an 8-pin DIP package. This device is specifically engineered for reliable electrical isolation and signal transfer in electronic circuits requiring high voltage isolation and fast switching speed.
The product is constructed to support one channel with a maximum forward voltage of 1.8V and maximum input current of 25mA. It offers typical rise and fall times of 500ns, making it efficient for precise and rapid signal transmission.
The device's isolation voltage of 5000Vrms ensures robust separation between input and output circuits, protecting sensitive electronics from high voltages. It includes a logic output compatible with DC current input, enhancing circuit interface versatility.
Operational temperature spans 0°C to 105°C, making it suitable for use in industrial, laboratory, and manufacturing environments where temperature variation is expected. The LTV-3150-L-S complies with IEC/EN/DIN EN 60747-5-5, UL, and cUL standards, assuring industry-grade quality and safety.
This optocoupler supports MOSFET and IGBT gate drive applications with integrated push-pull output capable of driving devices rated up to 1200V and 50A. Typical applications include motor control drives, power supply inverters, and other power electronics systems requiring isolation and signal coupling.
Mount type is surface, allowing easy PCB integration. Maximum forward voltage is 1.8V, suitable for low voltage input applications. Typical rise and fall times are 500ns ensuring fast signal response. Maximum input current is 25mA, appropriate for standard circuit protection.
Isolation voltage is rated at 5000Vrms providing high electrical isolation between input and output. The optocoupler includes a logic output and is compatible with DC input current type. Operating temperature ranges from 0°C to 105°C, suitable for various industrial environments.
Standards and approvals include IEC/EN/DIN EN 60747-5-5 and UL/cUL for quality assurance. Part of the LTV series, optimized for MOSFET and IGBT gate drive applications. Explore more electronic components in the Optocoupler category at EnvMart for professional industrial and commercial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input current for the LTV-3150-L-S is 25mA, making it suitable for standard circuit protection applications.
The isolation voltage of the LTV-3150-L-S is rated at 5000Vrms, providing high electrical isolation between input and output.
This model operates within a temperature range of 0°C to 105°C, suitable for various industrial environments.
The LTV-3150-L-S features typical rise and fall times of 500ns, ensuring fast signal response.
This optocoupler supports one channel, making it suitable for applications requiring single-channel isolation.
The LTV-3150-L-S is compatible with DC input current types, enhancing its versatility in circuit interfaces.
It comes in an 8-pin DIP package type, designed for surface mount applications.
The LTV-3150-L-S complies with IEC/EN/DIN EN 60747-5-5 and UL/cUL standards, ensuring quality assurance.
The maximum forward voltage for the LTV-3150-L-S is 1.8V, making it suitable for low voltage input applications.
This optocoupler is designed for applications such as motor control drives and power supply inverters, requiring isolation and signal coupling.
The LTV-3150-L-S is manufactured in India, reflecting its origin in the electronics industry.
This model is part of the LTV series, which is optimized for MOSFET and IGBT gate drive applications.
