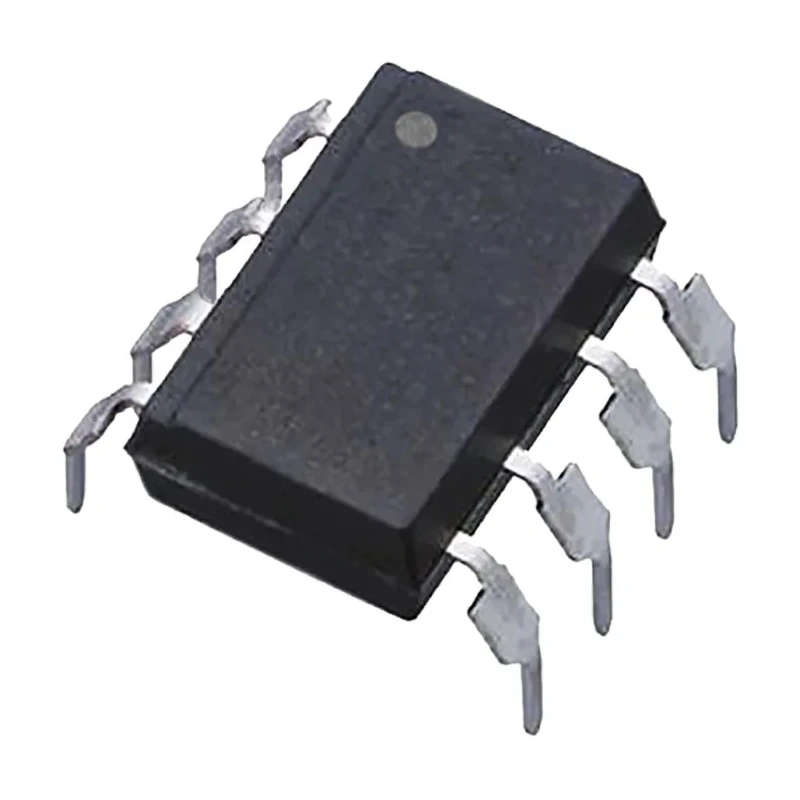

Lite-On DC Input Optocoupler Surface Mount 8-Pin DIP Optocoupler LTV-3150M-L
Specifications
| Country of Origin | India |
|---|---|
| Brand | Lite-On |
| Model | LTV-3150M-L |
| Mount Type | Surface |
| Series | LTV-3150-L |
| Maximum Operating Temperature | 105°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 25mA |
| Number Of Channels | 1 |
| Standards/Approvals | UL/ cUL, IEC/EN/DIN EN 60747-5-5 |
| Maximum Forward Voltage | 1.8V |
| Number of Pins | 8 |
| Input Current Type | DC |
| Typical Rise Time | 500ns |
Key Features
- This device features a surface mount 8-pin DIP package suitable for compact circuit board layouts.
- It has a maximum forward voltage of 1.8V ensuring efficient operation.
- The optocoupler provides an isolation voltage of 5000Vrms for high-voltage separation.
- Typical rise and fall times of 500ns allow fast switching performance.
- Designed for DC input current type, with a maximum input current of 25mA.
- Operates reliably within a temperature range of -40°C to 105°C.
- Includes a logic output capable of driving MOSFETs and IGBTs in gate drive applications.
- Meets UL/cUL and IEC/EN/DIN EN 60747-5-5 standards ensuring quality and safety compliance.
Product Description
Lite-On LTV-3150M-L DC Input Optocoupler in an 8-Pin DIP surface mount package delivers robust electrical isolation up to 5000Vrms with low forward voltage and fast switching times. This device is engineered specifically for industrial applications, including gate drive circuits for MOSFETs and IGBTs rated up to 1200V and 50A, commonly found in motor control and power supply system inverters.
The optocoupler supports DC input currents up to 25mA with a maximum forward voltage of 1.8V, ensuring energy-efficient operation. It features a push-pull output stage providing rail-to-rail output voltage swing and logic output compatibility.
Operating temperature range from -40°C to 105°C makes it suitable for harsh industrial environments. Compliance with UL/cUL and IEC/EN/DIN EN 60747-5-5 certifications guarantees adherence to international safety and quality standards.
This single-channel optocoupler employs an 8-pin dual inline package (DIP) for surface mounting, offering flexibility in PCB design and assembly. This device features a surface mount 8-pin DIP package suitable for compact circuit board layouts.
It has a maximum forward voltage of 1.8V ensuring efficient operation. The optocoupler provides an isolation voltage of 5000Vrms for high-voltage separation. Typical rise and fall times of 500ns allow fast switching performance.
Designed for DC input current type, with a maximum input current of 25mA. Operates reliably within a temperature range of -40°C to 105°C. Includes a logic output capable of driving MOSFETs and IGBTs in gate drive applications.
Meets UL/cUL and IEC/EN/DIN EN 60747-5-5 standards ensuring quality and safety compliance. This optocoupler is part of the LTV-3150-L series optimized for motor control and power supply inverter applications.
Widely used in electronic circuits for industrial automation, power supplies, motor drives, and inverter controls, this optocoupler is an essential component for electrical isolation and signal transmission.
Explore our full range of industrial electronic components at EnvMart to find compatible Optocouplers and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward voltage of this optocoupler is 1.8V, ensuring efficient operation.
It provides an isolation voltage of 5000Vrms for high-voltage separation.
This model operates reliably within a temperature range of -40°C to 105°C.
This optocoupler features a single channel design.
The typical rise time for this model is 500ns, allowing for fast switching performance.
It is designed for DC input current type, with a maximum input current of 25mA.
This optocoupler meets UL/cUL and IEC/EN/DIN EN 60747-5-5 standards for quality and safety compliance.
The optocoupler comes in an 8-pin DIP surface mount package.
It is commonly used in gate drive circuits for MOSFETs and IGBTs, particularly in motor control and power supply system inverters.
The minimum operating temperature for this model is -40°C.
It includes a logic output capable of driving MOSFETs and IGBTs in gate drive applications.
The country of origin for this optocoupler is India.
