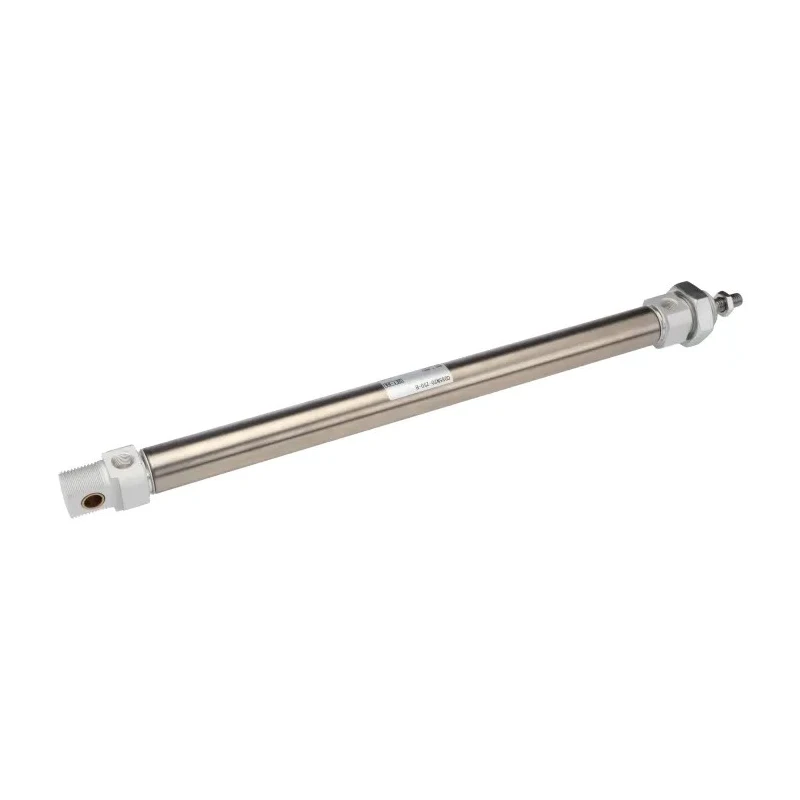

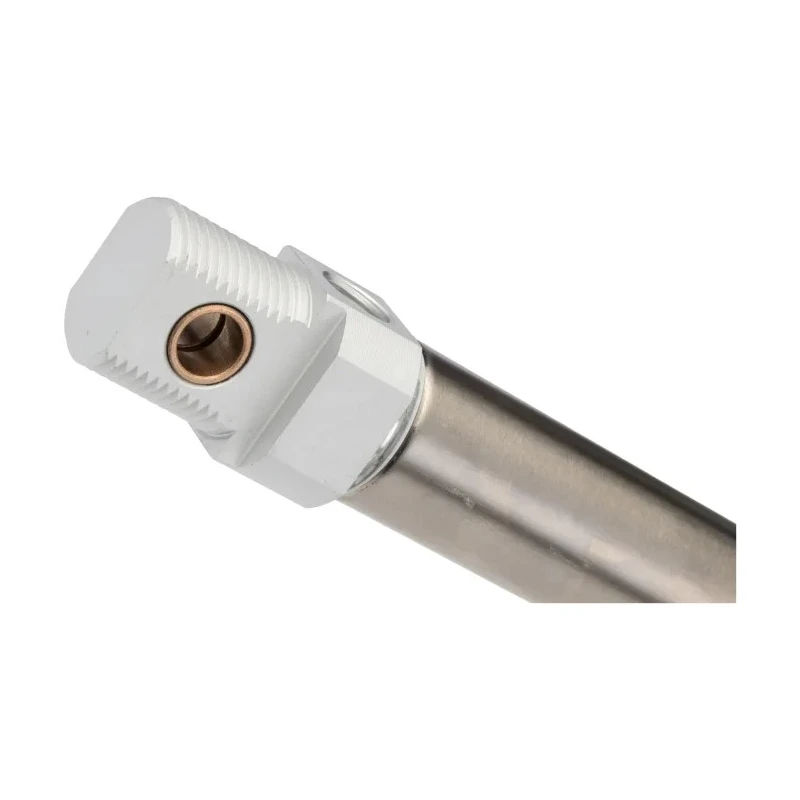

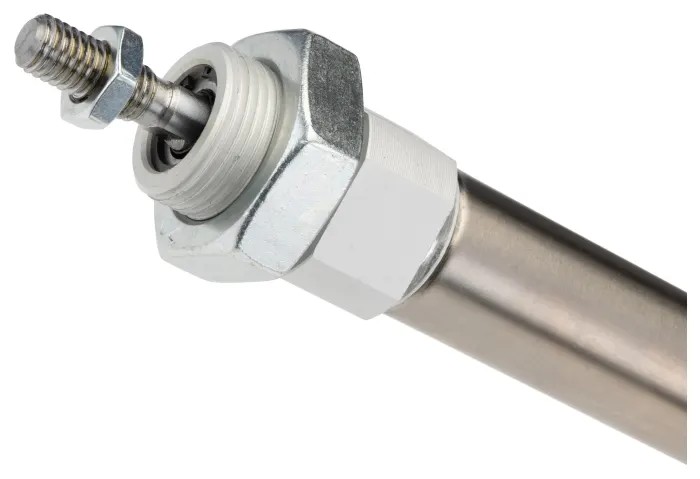

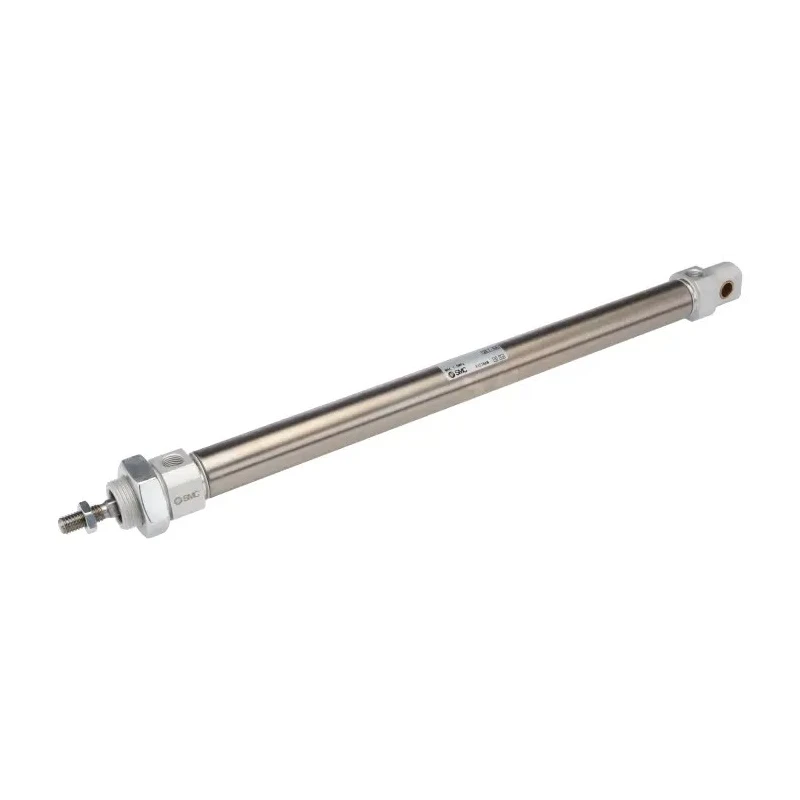

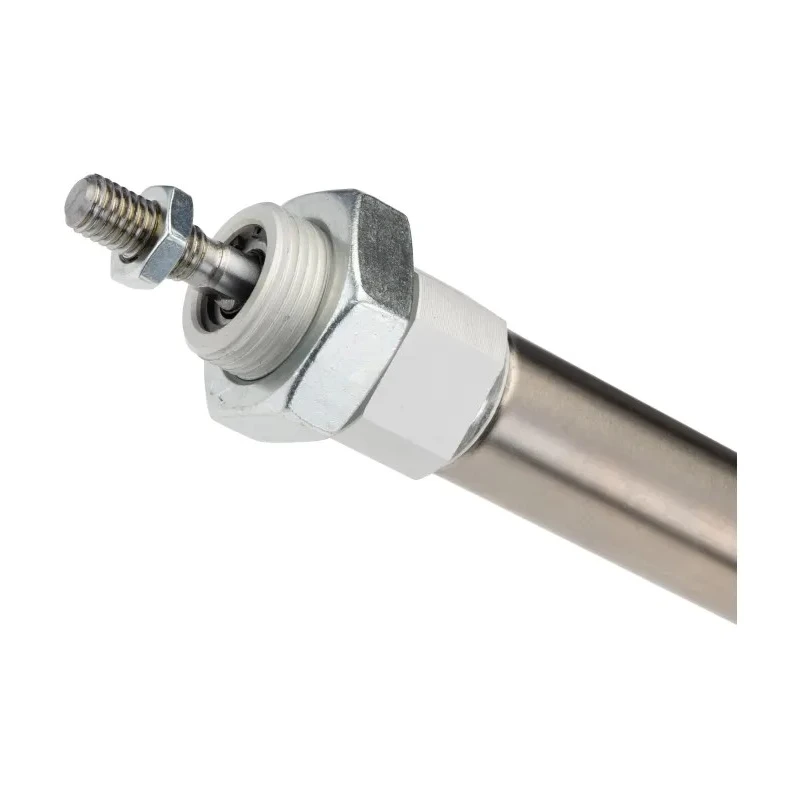

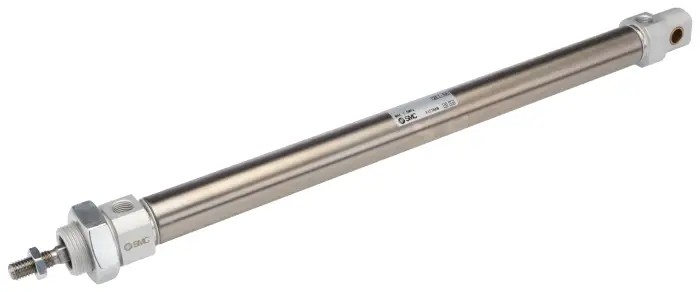

SMC 250 mm Pneumatic Piston Rod Cylinder Double Acting Aluminium Alloy Body Clevis Mount CD85
Specifications
| Country of Origin | Vietnam |
|---|---|
| Brand | SMC |
| Body Material | Aluminium Alloy |
| Length | 376mm |
| Model | CD85 |
| Mount Type | Clevis |
| Series | CD85 |
| Maximum Operating Temperature | +60°C |
| Stroke Length | 250mm |
| Rod Type | Single |
| Action Type | Double Acting |
| Standards/Approvals | ISO 6432 |
| Cushioning Type | Rubber |
| Piston Rod Gender | Male |
| Piston Rod Thread Standard | Metric |
| Piston Rod Thread Size | M8 |
Key Features
- Double acting operation provides controlled bidirectional force transmission.
- Constructed with lightweight aluminium alloy for corrosion resistance and low mass.
- Clevis mounting ensures easy pivot installation and stable operation.
- Rubber bumper cushions reduce noise and impact at stroke ends.
- Male piston rod with M8 metric thread for secure and standardized coupling.
- Rated for piston speeds up to 1500 mm/s for rapid cycling applications.
- Operates reliably up to +60°C for use in warm industrial environments.
- Compliant with ISO 6432 standard for dimensional interchangeability.
Product Description
SMC CD85N20-250-B Pneumatic Piston Rod Cylinder is a double acting pneumatic actuator with a 250 mm stroke length and 376 mm total length, constructed from aluminium alloy to provide a lightweight yet durable solution for industrial automation and mechanical systems.
This cylinder converts compressed air into linear reciprocating motion, featuring a single male piston rod with an M8 metric thread for secure attachments. The clevis mount facilitates straightforward pivot mounting, suitable for oscillating movements in machinery.
The unit includes rubber bumpers for cushioning, which reduce mechanical impact and noise, enhancing durability and operational smoothness. It supports piston speeds up to 1500 mm/s and can operate continuously up to +60°C, making it suitable for warm environments in manufacturing, assembly automation, and pneumatic control applications.
Double acting operation for bidirectional force control. Aluminium alloy body offers resistance to many corrosive atmospheres and reduces mass. Clevis mounting type allows easy installation in pivot applications. Rubber cushion bumper minimizes noise and wear on cylinder ends.
M8 thread piston rod enables compatible coupling and secure attachment. Compliant with ISO 6432 standard ensures dimensional compatibility. Capable of high piston speeds up to 1500 mm/s for rapid cycling tasks. Designed for pick-and-place, valve actuation, linear guidance, and tooling movements in industrial settings.
The device’s aluminium alloy construction makes it ideal for applications requiring low weight and corrosion resistance. The stroke length of 250 mm should be considered within system designs to prevent mechanical over-travel.
Its ISO 6432 compliance ensures interchangeability with other compact pneumatic cylinders, making it versatile for replacement or integration in existing pneumatic systems. This Pneumatic Piston Rod Cylinder is manufactured in Vietnam under strict quality standards.
EnvMart offers a wide range of pneumatic actuators and components suitable for assembly automation, HVAC control, manufacturing machinery, and other industrial uses.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The stroke length of this pneumatic piston rod cylinder is 250 mm.
It can operate reliably up to +60°C, making it suitable for warm industrial environments.
This model features a clevis mount type, which allows for easy pivot installation.
The body is constructed from aluminium alloy, providing lightweight and corrosion resistance.
It supports piston speeds up to 1500 mm/s, suitable for rapid cycling applications.
This unit operates as a double acting cylinder, allowing for controlled bidirectional force transmission.
The piston rod has a male thread size of M8, which ensures secure and standardized coupling.
Yes, it is compliant with the ISO 6432 standard, ensuring dimensional interchangeability with other compact pneumatic cylinders.
It includes rubber bumpers for cushioning, which help reduce noise and mechanical impact at stroke ends.
The total length of this pneumatic piston rod cylinder is 376 mm.
This pneumatic cylinder is manufactured in Vietnam under strict quality standards.
It is suitable for applications such as pick-and-place, valve actuation, linear guidance, and tooling movements in industrial settings.
