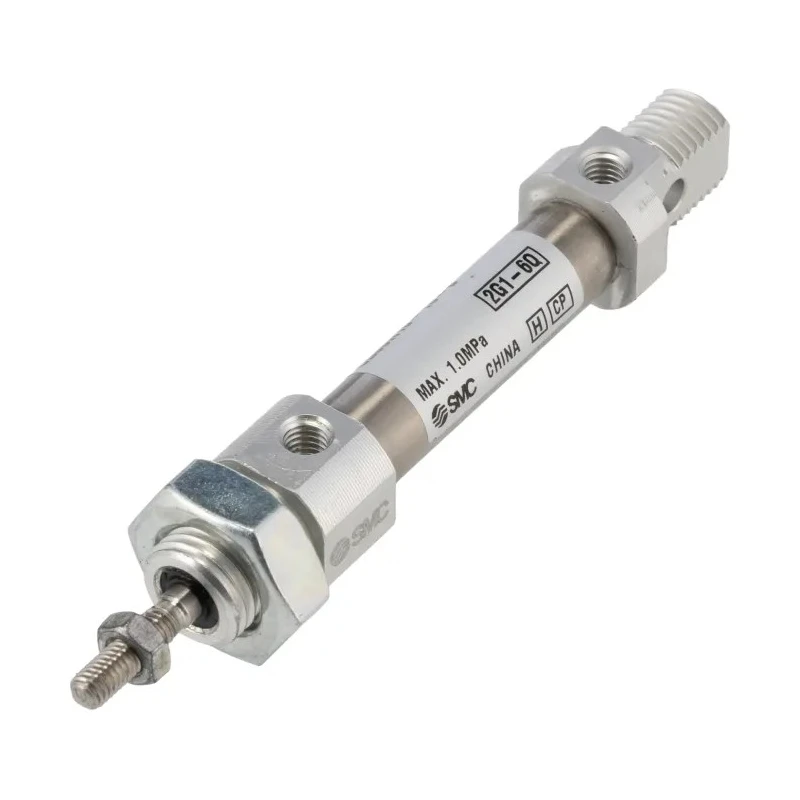

SMC 15 mm Pneumatic Piston Rod Cylinder Double Acting Clevis Mount Aluminium Alloy Body CD85

Free Delivery in India | Lowest Global Shipping Charges

SMC 15 mm Pneumatic Piston Rod Cylinder Double Acting Clevis Mount Aluminium Alloy Body CD85



Category Pneumatic Piston Rod Cylinder Brand SMC Condition New

Specifications

Country of Origin	France
Brand	SMC
Body Material	Aluminium Alloy
Length	101mm
Model	CD85
Mount Type	Clevis
Series	CD85
Maximum Operating Temperature	+60°C
Stroke Length	15mm
Rod Type	Single
Action Type	Double Acting
Standards/Approvals	ISO 6432
Cushioning Type	Rubber
Piston Rod Gender	Male
Piston Rod Thread Standard	Metric
Piston Rod Thread Size	M4

Key Features

Constructed with lightweight aluminium alloy body for swift response.
Double acting with rubber bumper cushioning reduces impact at stroke ends.

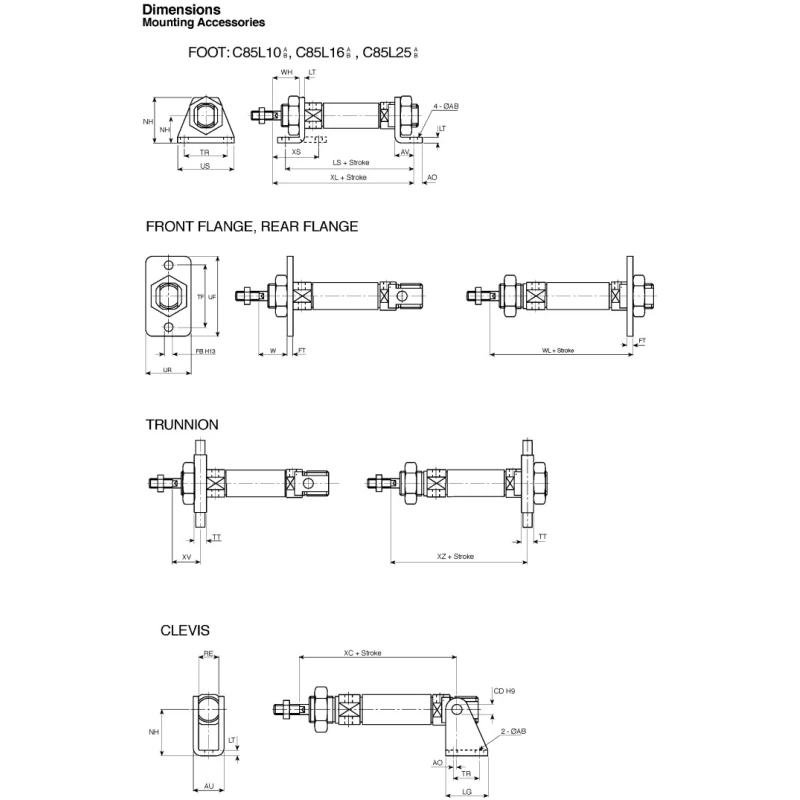

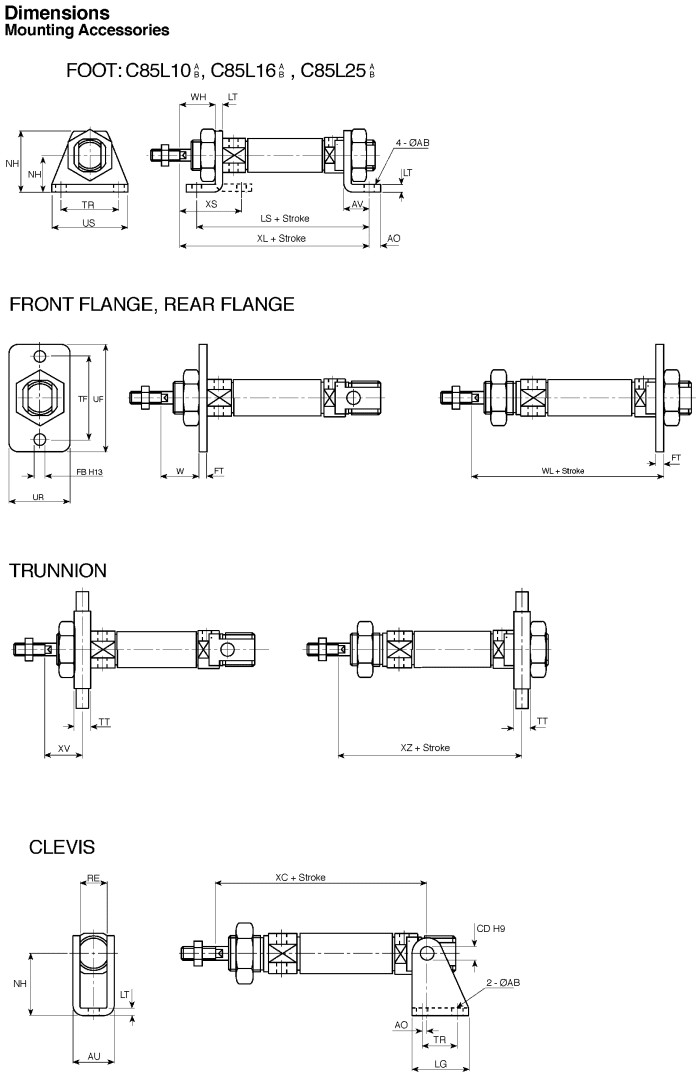

Clevis mount allows for pivot installation providing alignment flexibility.
Maximum piston speed up to 1500 mm/s supports rapid cycle times.
Piston rod features male M4 metric thread for compatibility with standard fittings.
Rated maximum operating temperature of +60°C for warm industrial environments.
ISO 6432 standard compliance ensures quality and reliability.
Designed for short-stroke, high-speed motions in precise handling and control tasks.

Product Description

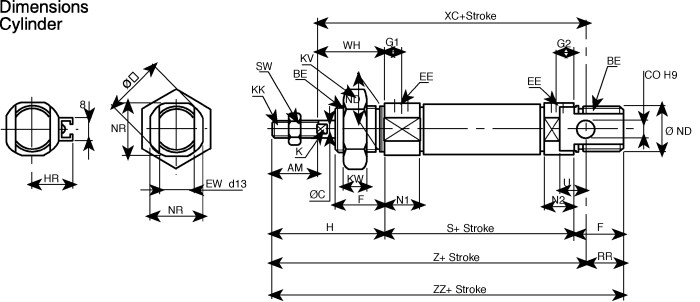

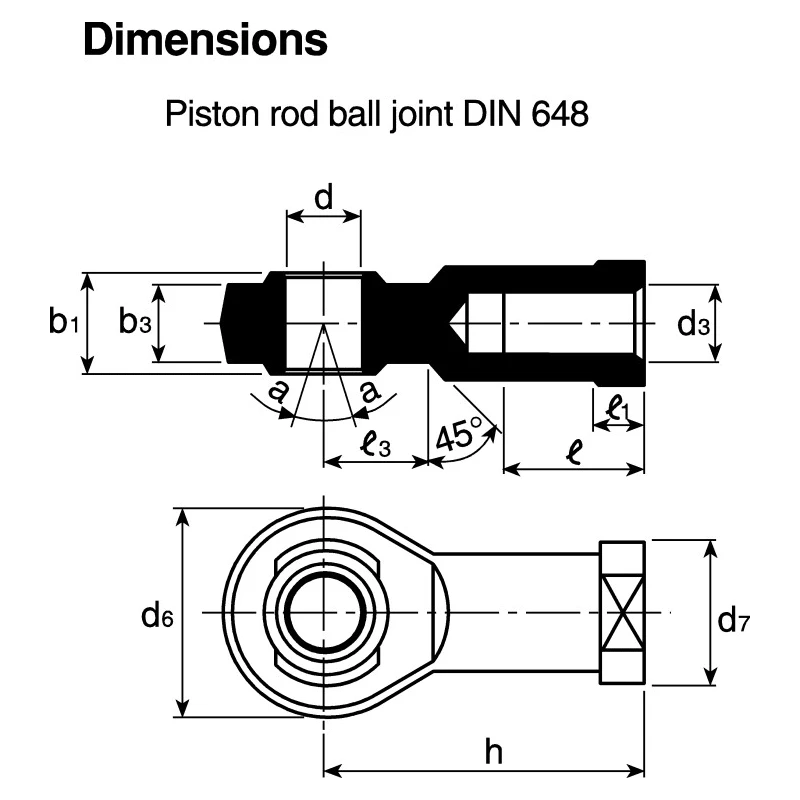

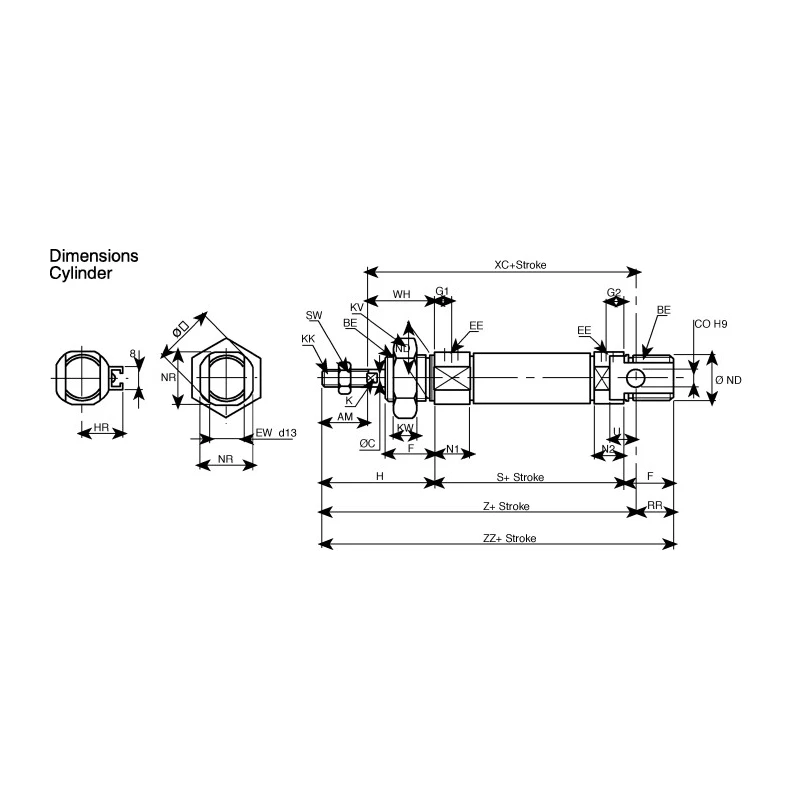

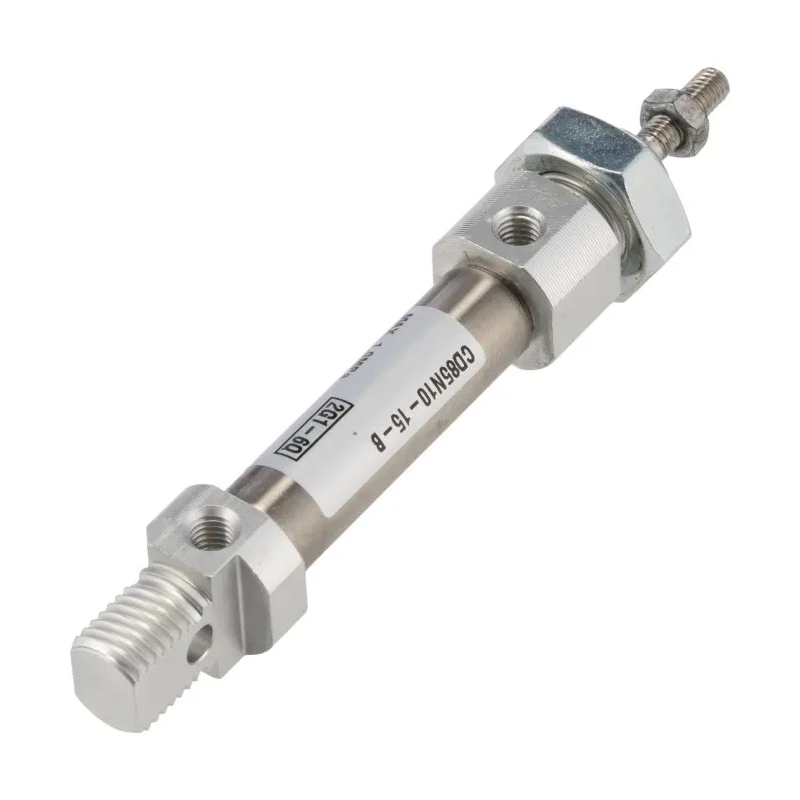

SMC's CD85N10-15-B pneumatic piston rod cylinder is engineered for compact automation tasks requiring rapid, precise linear actuation. With a 15 mm stroke length and a total cylinder length of 101 mm, this double acting cylinder integrates rubber bumper cushioning to reduce impact and noise at stroke ends, thus enhancing longevity of both the cylinder and connected components.

The aluminium alloy body reduces weight, enabling faster response and ease of installation. The clevis mount facilitates pivot-style installation, providing flexibility in alignment and accommodating angular misalignment in dynamic industrial settings.

The piston rod is designed with a male M4 metric thread, allowing direct attachment of standard fittings or tooling adapters, making it suitable for various assembly and packaging machinery applications. Capable of operating at piston speeds up to 1500 mm/s, this cylinder supports high-speed cycles crucial in manufacturing automation.

Withstanding operating temperatures up to +60°C, it is suited for environments with elevated ambient or near-tool temperatures. The product is manufactured to ISO 6432 standards and is made in France, ensuring adherence to stringent quality benchmarks.

Lightweight aluminium alloy body for improved efficiency. Rubber cushioning minimizes impact and prolongs mechanical life. Clevis mounting provides flexible pivot installation. Male M4 piston rod thread enables versatile accessory attachment.

Supports piston speeds up to 1500 mm/s for fast operation. Designed for precise, short-stroke industrial automation tasks. Complies with ISO 6432 standards for quality assurance. Engineered to operate reliably up to 60°C ambient temperature.

This Pneumatic Piston Rod Cylinder is ideal for pick-and-place operations in assembly lines, end-of-arm tooling on compact manipulators, high-speed sorting equipment, precision indexing in electronics manufacturing, and short-stroke actuation in packaging machines. Its design optimizes performance in industrial automation, laboratory automation, manufacturing, and packaging sectors.
