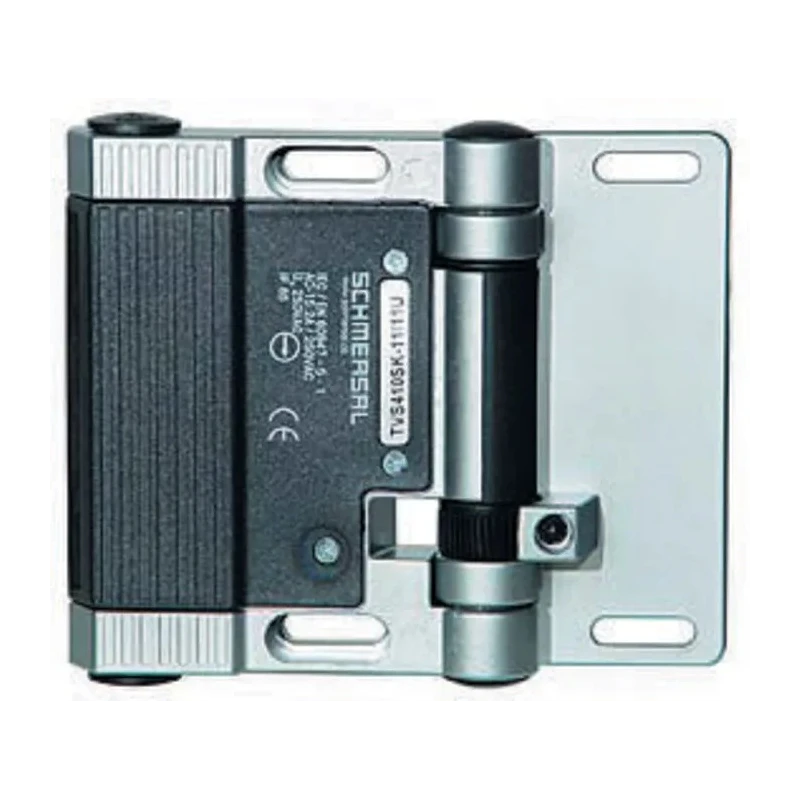

Schmersal TVS 410 Safety Hinge Switch 2 NO/2 NC IP65 Industrial Safety Interlock TVS 410ST1-11/11U
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Schmersal |
| Height | 41.5mm |
| Length | 75.5mm |
| Model | TVS 410ST1-11/11U |
| IP Rating | IP65 |
| Width | 25.5mm |
| Housing Material | Light Alloy |
| Series | TVS 410 |
| Maximum Operating Temperature | 65°C |
| Contact Configuration | 2 NO/2 NC |
| Cable Entry Size | 2 x M16 x 1.5 |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Standards/Approvals | IEC/EN 60947-5-1 |
| Contact DC Voltage | 24V dc |
| Mechanical Life | 1000000Operations |
| Contact AC Voltage | 230V ac |
| Contact Current | 2.5A |
| Number of Cable Entries | 2 |
| Trigger Angle Range | 5 ° |
Key Features
- Equipped with 2 normally open and 2 normally closed silver-nickel contacts for reliable conduction.
- Constructed with corrosion-resistant light alloy die-cast housing for long service life.
- Operates reliably within wide temperature range of -25°C to 65°C.
- Designed for guard doors with adjustable 180° opening and minimum 5° positive break angle.
- Features M16 x 1.5 cable entries with screw terminals for secure electrical connections.
- Rated for contact DC voltage of 24V and AC voltage of 230V with a current of 2.5A.
- Achieves mechanical durability of over 1 million operations ensuring long-lasting performance.
- Complies with IEC/EN 60947-5-1 safety standards for industrial applications.
Product Description
Schmersal TVS 410ST1-11/11U Safety Hinge Switch 2 NO/2 NC is a robust safety interlock switch designed to secure hinged guard doors in industrial environments. With a corrosion-resistant light alloy metal housing and an IP65 rating, it delivers reliable protection against dust and water jets, ensuring durability in harsh conditions. The device is engineered to trigger a machine stop or alarm immediately upon door opening, preventing unauthorized access and enhancing operational safety.
This switch supports a wide operating temperature from -25°C up to 65°C, enabling use in demanding industrial settings, including hazardous areas and gas plants. Its contact configuration of 2 normally open (NO) and 2 normally closed (NC) silver-nickel contacts provides high conductivity and corrosion resistance. The mechanical lifespan exceeds one million operations, ensuring extended reliability.
The hinge switch is suitable for mounting on both inside and outside of guard doors, featuring an adjustable 180° opening angle with a minimum positive break angle of 5° to 8° for fast response. Electrical connections use screw terminals with two M16 x 1.5 cable entries. Standards compliance includes IEC/EN 60947-5-1, confirming suitability for industrial safety interlock applications.
This safety switch is ideal for applications in material handling equipment and hazardous process areas where safety guard doors require secure monitoring and interlocking. Note that the product does not include a power lead; standard hinges are sold separately.
Equipped with 2 NO and 2 NC contacts for versatile switching functions. Light alloy die-cast housing resistant to oil, petroleum, and impacts. Wide temperature range suited for various industrial environments. IP65 rating protects against dust ingress and low-pressure water jets.
Mechanical lifecycle rated at 1,000,000 operations for durability. Adjustable trigger angle enhances safety responsiveness. Compliant with recognized IEC safety standards. Explore more Safety Interlock Switches and hinge switch options in the Electronics & Electricals category at EnvMart, ensuring compliant and reliable industrial safety solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a contact configuration of 2 normally open (NO) and 2 normally closed (NC) contacts, providing versatile switching functions.
The Schmersal TVS 410 safety hinge switch has an IP65 rating, which protects it against dust ingress and low-pressure water jets.
It can operate reliably within a maximum temperature of 65°C, making it suitable for various industrial environments.
The dimensions of this unit are 75.5mm in length, 25.5mm in width, and 41.5mm in height.
The mechanical life of the Schmersal TVS 410 is rated at over 1 million operations, ensuring long-lasting performance.
It is rated for a contact DC voltage of 24V and an AC voltage of 230V, with a maximum contact current of 2.5A.
This safety hinge switch utilizes screw terminals for secure electrical connections.
The minimum operating temperature for the Schmersal TVS 410 is -25°C, allowing it to function in cold environments.
It is designed for mounting on both the inside and outside of guard doors, featuring an adjustable 180° opening angle.
It complies with IEC/EN 60947-5-1 safety standards, confirming its suitability for industrial safety interlock applications.
The switch has two M16 x 1.5 cable entries for electrical connections.
The housing is made from a corrosion-resistant light alloy, ensuring durability in harsh conditions.
