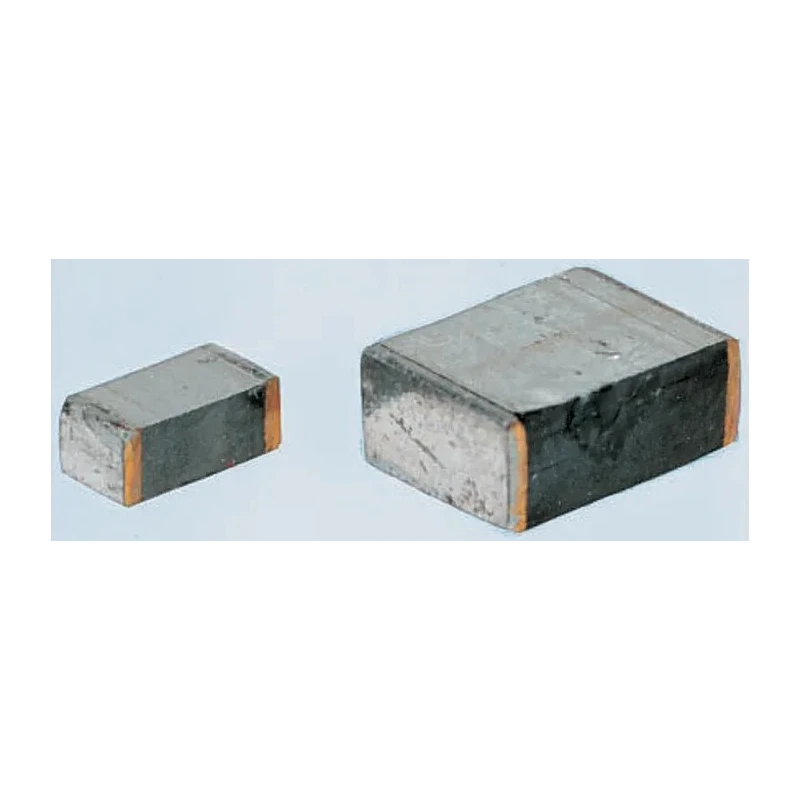

Panasonic ECWU2222V16 Surface Mount Film Capacitor 2.2 nF 250 V dc 85°C ECWU(V16)

Panasonic ECWU2222V16 is a surface mount film capacitor belonging to the ECWU(V16) series, featuring a 2.2 nF capacitance and a rated DC voltage of 250 V. The capacitor has a compact design with dimensions 4.8 mm length, 3.3 mm width, and 1.4 mm height, making it ideal for space-constrained electronic components and assemblies. With a maximum operating temperature of 85°C, it ensures reliable performance in demanding environments.

This capacitor utilizes a mould-less construction design, employing stacked metallised polyethylene naphthalate (PEN) film as its dielectric. This advanced design provides lightweight components with high stability and durability suitable for surface mount technology (SMT) processes, including reflow soldering.

Panasonic ECWU2222V16 film capacitors are particularly recommended for DC blocking applications in xDSL communication lines, providing stable and efficient signal transmission. Their compact size and reliability make them suitable for various industrial, telecommunications, and electronic manufacturing applications.

Compact size suitable for modern electronic circuit boards. Mould-less construction with stacked metallised PEN film dielectric. Lightweight and ideal for surface mount technology applications. Recommended for DC blocking applications such as xDSL systems.

Supports reflow soldering processes for PCB assembly.

These capacitors are compliant with RoHS standards and tailored for high-quality electronics manufacturing. Explore additional film capacitors and Passive Components to optimize your electronic component selection at EnvMart.
