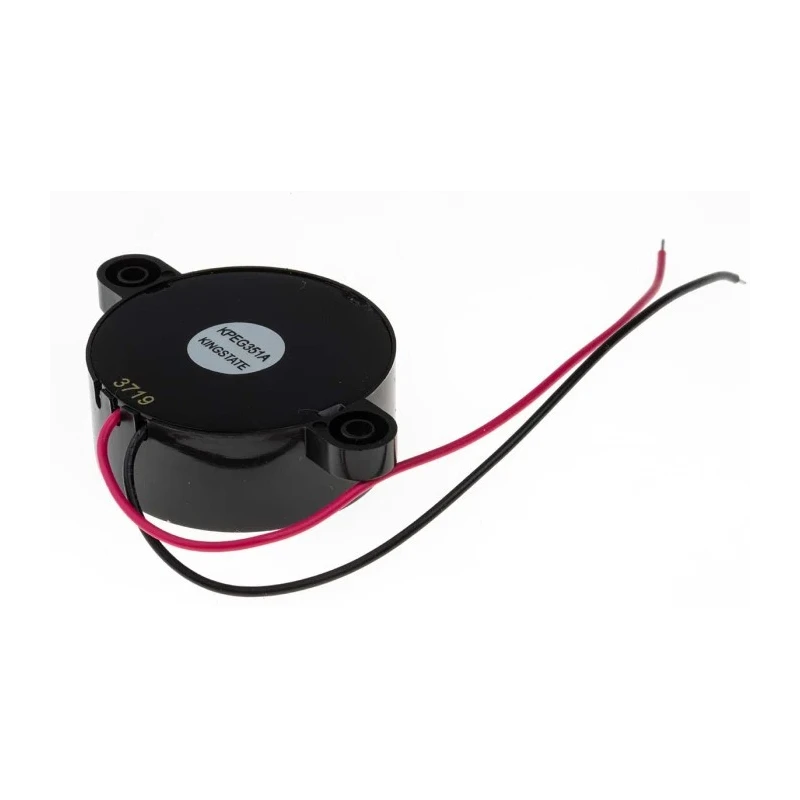

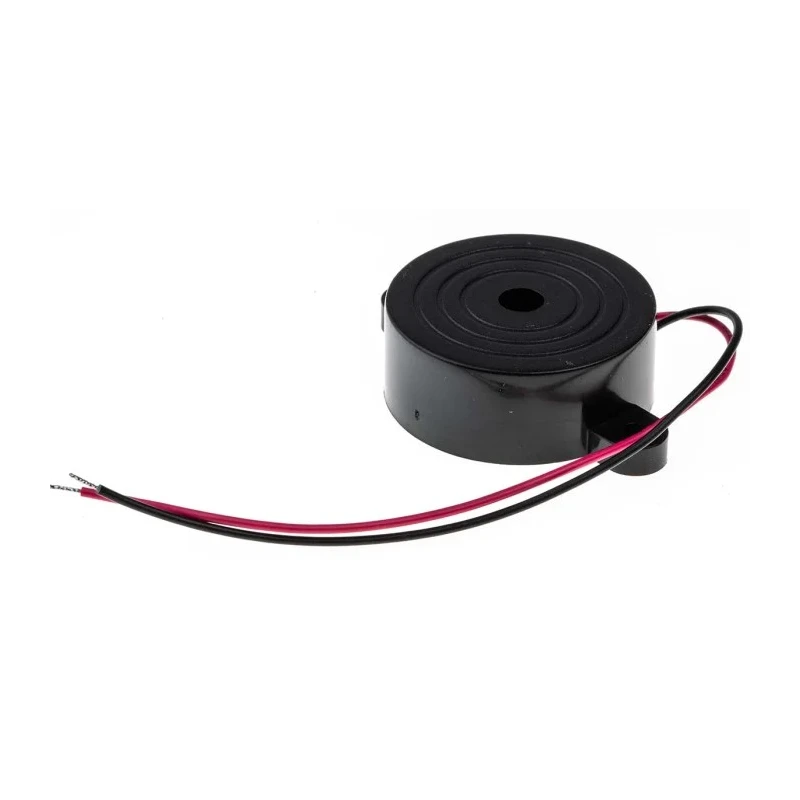

NEUTRAL RS PRO 88 dB Panel Mount Fast Pulse Internal 16 mm Piezo Buzzer Component 60 mm 5 V dc Min 20V dc Max 622-1506

Free Delivery in India | Lowest Global Shipping Charges

NEUTRAL RS PRO 88 dB Panel Mount Fast Pulse Internal 16 mm Piezo Buzzer Component 60 mm 5 V dc Min 20V dc Max 622-1506

Name: NEUTRAL RS PRO 88 dB Panel Mount Fast Pulse Internal 16 mm Piezo Buzzer Component 60 mm 5 V dc Min 20V dc Max 622-1506
Brand: NEUTRAL
SKU: 199935
Price: 8.49 USD
Availability: InStock



Category Piezo Buzzer Component Brand NEUTRAL Condition New

Specifications

Country of Origin	Taiwan
Diameter	41.8mm
Brand	NEUTRAL
Sound Level	88dB
Height	16mm
Length	60mm
Model	622-1506
Drive Type	Internal
Mount Type	Panel Mount
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-30°C
Standards/Approvals	RoHS
Maximum Frequency	3.3kHz
Maximum Supply Voltage	20V dc
Minimum Supply Voltage	5V dc
Supply Current	8mA
Tone Type	Fast Pulse
Minimum Frequency	2300Hz
Piezo BuzzerBrand	NEUTRAL

Key Features

Produces a clear fast pulse tone with an intermittent drive.
Compact dimensions with a diameter of 41.8 mm, length 60 mm, and height 16 mm.
Operates in temperatures from -30°C to 85°C for versatile environmental use.
Low power consumption drawing only 8 mA current.
High frequency range of 2.3 kHz minimum to 3.3 kHz maximum delivers effective sound output.

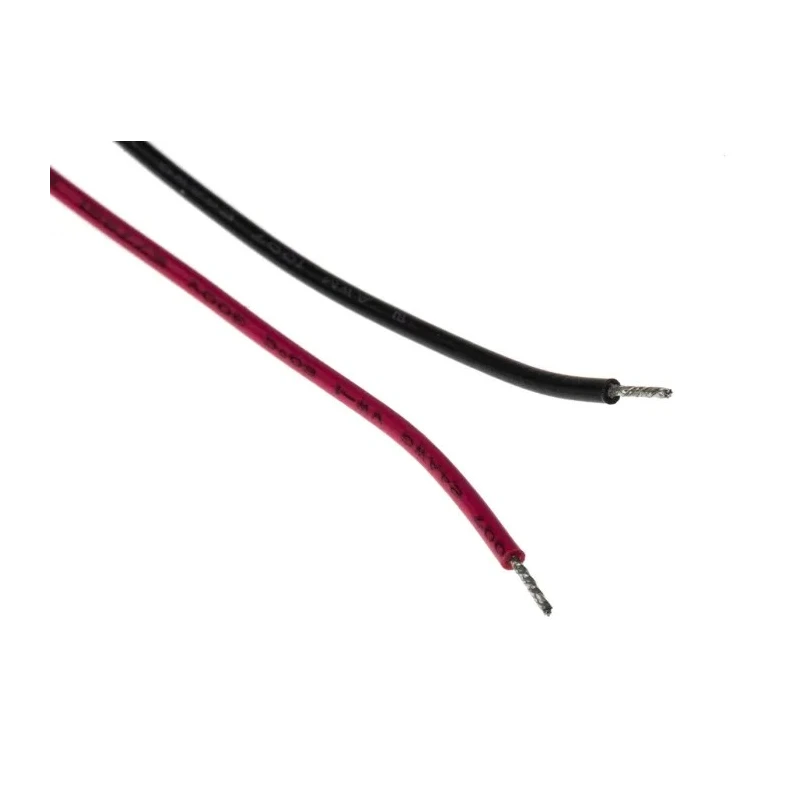

Panel mount design allows easy installation with flying lead connectors.
Complies with RoHS and electrostatic discharge standards ensuring quality and safety.
Suitable for industrial warning systems, telephones, and various electronic applications.

Product Description

NEUTRAL 622-1506 Piezo Buzzer Component is a panel-mounted buzzer offering a powerful 88 dB sound output with a fast pulse internal drive. It operates efficiently within a voltage range of 5 V dc minimum to a maximum of 20 V dc and draws only 8 mA current, ensuring low energy consumption. The buzzer measures 41.8 mm in diameter, 60 mm in length, and 16 mm in height, suitable for compact installations.

This buzzer functions reliably across a broad temperature range from -30°C to +85°C, making it ideal for industrial, laboratory, and commercial environments. It produces a clear intermittent tone within the frequency range of 2300 Hz to 3300 Hz, making it effective for alert and warning systems.

Designed for panel mounting, the unit includes flying lead connectors, simplifying electrical connections to circuit boards. It adheres to RoHS restrictions and meets electrostatic discharge standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007, ensuring compliance with industry regulations and enhancing product reliability.

Typical use cases include incorporation in industrial warning and signaling systems, telecommunications equipment, and consumer electronics. Its energy-efficient design and robust construction make it a dependable component for various electronic sound signaling needs.

Produces a clear fast pulse tone with an intermittent drive. Compact dimensions with a diameter of 41.8 mm, length 60 mm, and height 16 mm. Operates in temperatures from -30°C to 85°C for versatile environmental use. Low power consumption drawing only 8 mA current.

High frequency range of 2.3 kHz minimum to 3.3 kHz maximum delivers effective sound output. Panel mount design allows easy installation with flying lead connectors. Complies with RoHS and electrostatic discharge standards ensuring quality and safety.

Suitable for industrial warning systems, telephones, and various electronic applications. Discover more high-quality electronic components and piezo buzzer solutions in the Electronics Components category at EnvMart.
