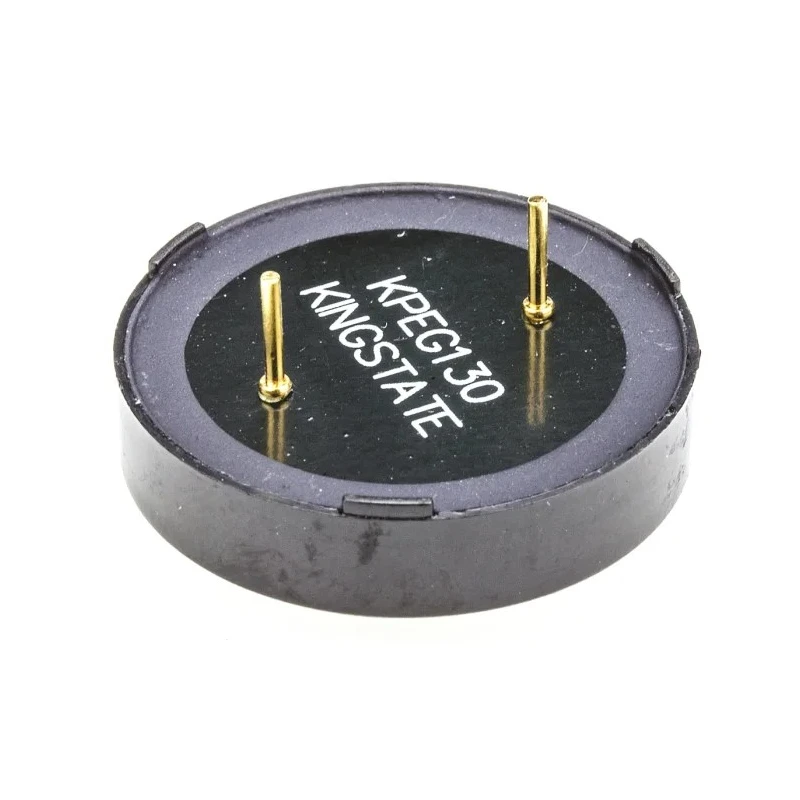

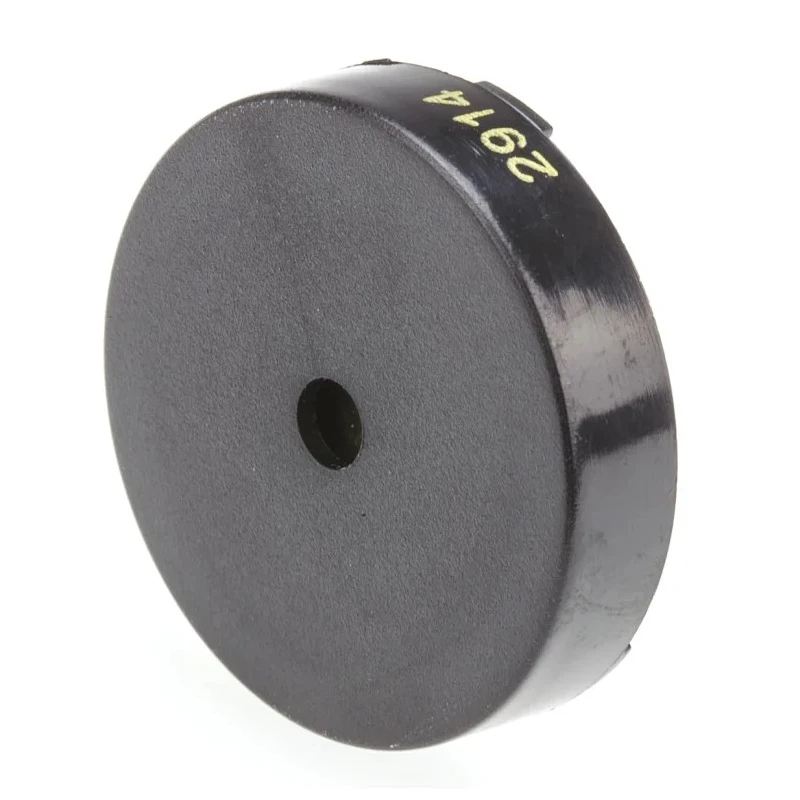

RS PRO 90 dB Through Hole Continuous External Piezo Buzzer Component 30V AC Max 622-1332

RS PRO 622-1332 Piezo Buzzer Component is a high-performance electrical component engineered for industrial and commercial applications. Featuring through-hole mounting, this continuous tone buzzer operates at a maximum supply voltage of 30V AC and produces a loud 90 dB sound level at a fixed frequency of 3 kHz.

The device is encased in durable, dust-resistant plastic that protects the internal piezo element, ensuring consistent performance even in harsh environmental conditions. Its lightweight design of only 4.4 grams makes it suitable for use on materials with low load-bearing capacities and in compact assemblies.

This buzzer supports a supply current of 10 mA, making it an energy-efficient choice for prolonged operation. It functions reliably across a wide temperature range from -30°C to +85°C, allowing use in automotive, laboratory, and industrial settings.

The component’s compact form factor, measuring 30.2 mm in diameter and 7.5 mm in height, allows easy integration into printed circuit boards via through-hole mounting technology, simplifying installation and maintenance.

Common industrial applications include vehicle warning systems, doorbells, pest control alarms, and other alert signaling devices requiring a consistent and audible tone. Designed for through-hole board mounting for secure installation.

Produces a continuous tone sound with a level of 90 dB at 3 kHz frequency. Dust-resistant plastic casing protects components in harsh environments. Lightweight and compact dimensions support space-saving designs. Broad operating temperature range from -30 °C to +85 °C.

Low supply current of 10 mA for efficient power usage. Reliable and tested quality consistent with RS PRO standards. Explore more electronic components and piezo buzzer products at EnvMart for your industrial and commercial projects.
