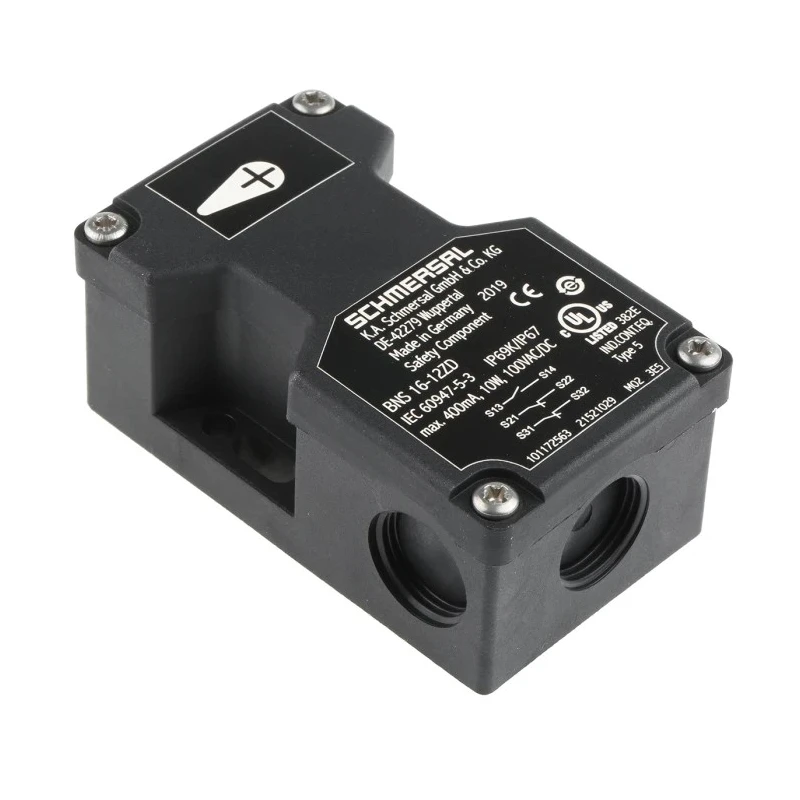

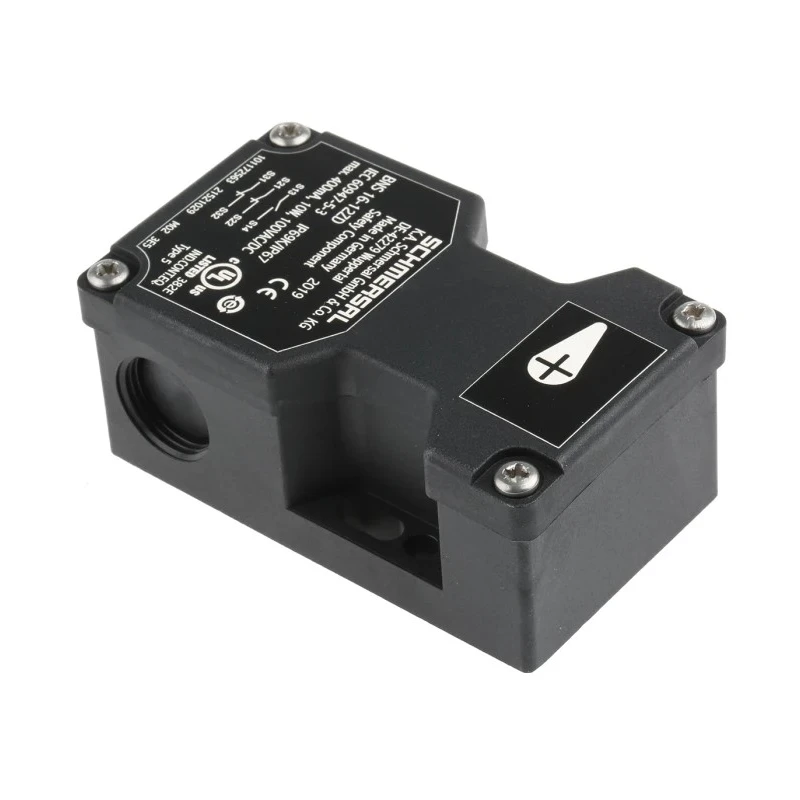

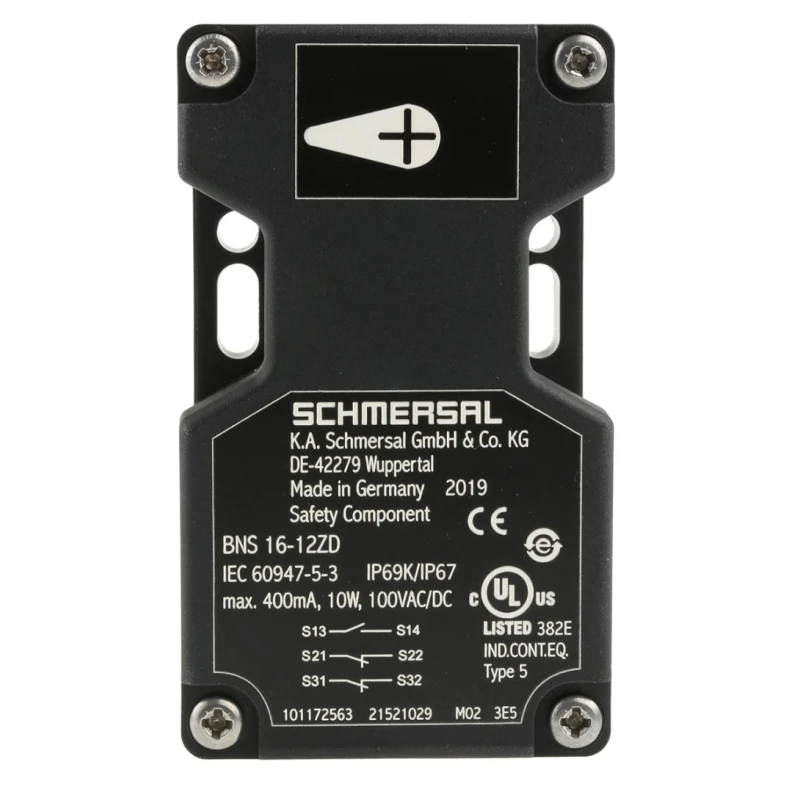

Schmersal Magnetic Non-Contact Safety Switch, Plastic Housing, 100V AC/DC, NO, NC, M20 BNS16
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Schmersal |
| Length | 90mm |
| Model | BNS16 |
| Connection Type | M20 |
| Depth | 38.5mm |
| IP Rating | IP67 |
| Width | 52mm |
| Housing Material | Plastic |
| Series | BNS16 |
| Actuator Type | Coded |
| Safety Category | 4 |
| Switching Current | 400mA |
| Terminal type | M20 |
| Sensor Principle | Magnetic |
| Body Style | Rectangular |
| Standards/Approvals | EN, CE, IEC |
| Switching DC Voltage | 100V dc |
| Switching AC Voltage | 100V ac |
| Housing Colour | Black |
| Safety Contacts | NO, NC |
| Switching Distance | 5 to 18 mm² |
Key Features
- Compact rectangular design measuring 90mm length, 52mm width, and 38.5mm depth for space-efficient installations.
- Features one normally open (NO) and two normally closed (NC) safety contacts to ensure continuous sensing.
- Magnetic sensor technology enables non-contact switching with a switching distance of 5mm (ON) to 18mm (OFF).
- Robust glass fibre-reinforced thermoplastic housing offers impact and chemical resistance with IP67 ingress protection rating.
- Reliable operation with a switching current of 400mA and connection via three M20 x 1.5 cable entries.
- Insensitive to transverse misalignment and soiling, reducing maintenance and wear.
- Suitable for use in harsh industrial environments such as food processing, pharmaceutical manufacturing, and beverage bottling.
- Complies with EN, CE, and IEC standards and carries approvals including BG, UL, and CSA.
Product Description
Schmersal BNS 16-12ZD magnetic non-contact safety switch features a compact rectangular plastic housing designed for reliable safety control in industrial automation systems. Operating at 100V AC/DC, this safety switch employs magnetic sensing technology to monitor and safeguard machinery and processes.
The device includes one normally open (NO) and two normally closed (NC) safety contacts that provide continuous monitoring functionality. The magnetic sensor activates a front-positioned coded actuator enabling quick and precise switching without mechanical wear.
Its rugged glass fibre-reinforced thermoplastic housing ensures high resistance to impact and chemical exposure, further enhanced by an IP67 rating that guarantees dust-tight protection and resistance to water immersion up to 1 meter for 30 minutes. The compact dimensions (90 mm length, 52 mm width, and 38.5 mm depth) allow installation in confined spaces.
The switch supports a switching current of 400mA and a cable connection through three M20 x 1.5 entries, providing secure and stable electrical connections. The design is insensitive to transverse misalignment and dirt, ensuring smooth and maintenance-free operation over extended service life.
Typical applications include food processing, pharmaceutical production, and bottling industries where safety interlock and reliable position sensing are critical. The product meets international industrial safety standards EN, CE, and IEC and holds certifications such as BG, UL, and CSA, underlining its suitability for industrial safety compliance.
Compact rectangular design for tight spaces. Magnetic sensing with no mechanical wear components. IP67 rated for ingress protection against dust and water. High switching current capacity of 400mA. Robust plastic housing resistant to impact and chemicals.
Multiple M20 cable entries for secure wiring. Compliant with EN, CE, IEC standards and approved by BG, UL, CSA. Ideal for food, pharmaceutical, and beverage industries.
Schmersal safety switches are recognized for their durability and precision in industrial safety systems. Browse the full range of Schmersal safety products and other Safety Interlock Switches at EnvMart for reliable automation safety solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The safety switch has a switching current capacity of 400mA.
It features a robust plastic housing that is glass fibre-reinforced for impact and chemical resistance.
The magnetic sensor technology enables non-contact switching, allowing for quick activation without mechanical wear components.
It includes one normally open (NO) contact and two normally closed (NC) contacts for continuous monitoring.
The switching distance for this model ranges from 5mm (ON) to 18mm (OFF).
It supports connection via three M20 x 1.5 cable entries for secure wiring.
Typical applications include food processing, pharmaceutical manufacturing, and beverage bottling industries.
It complies with EN, CE, and IEC standards and holds approvals from BG, UL, and CSA.
The actuator type is coded, which allows for precise switching functionality.
