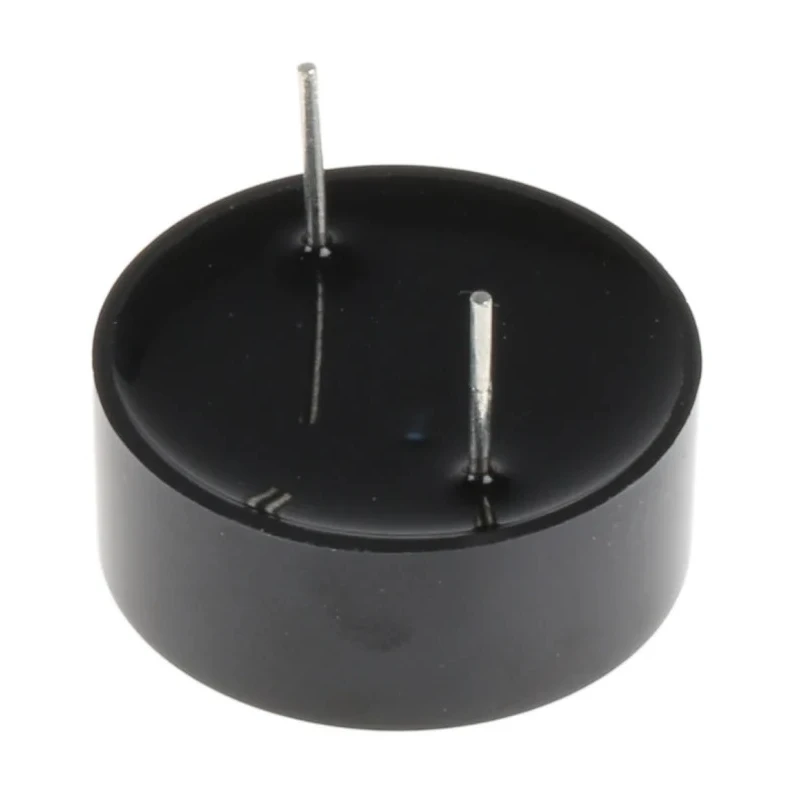

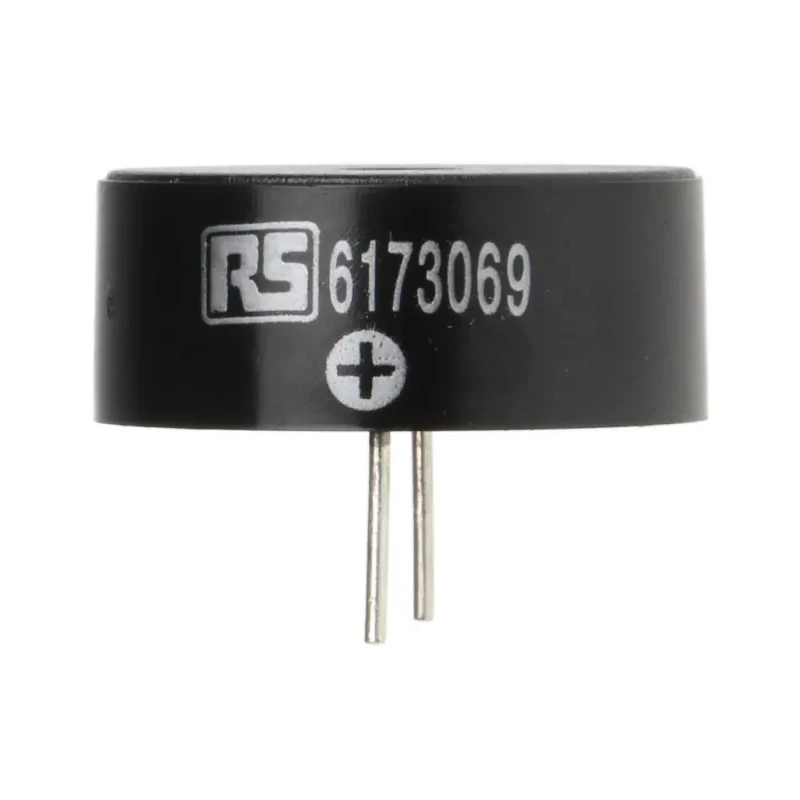

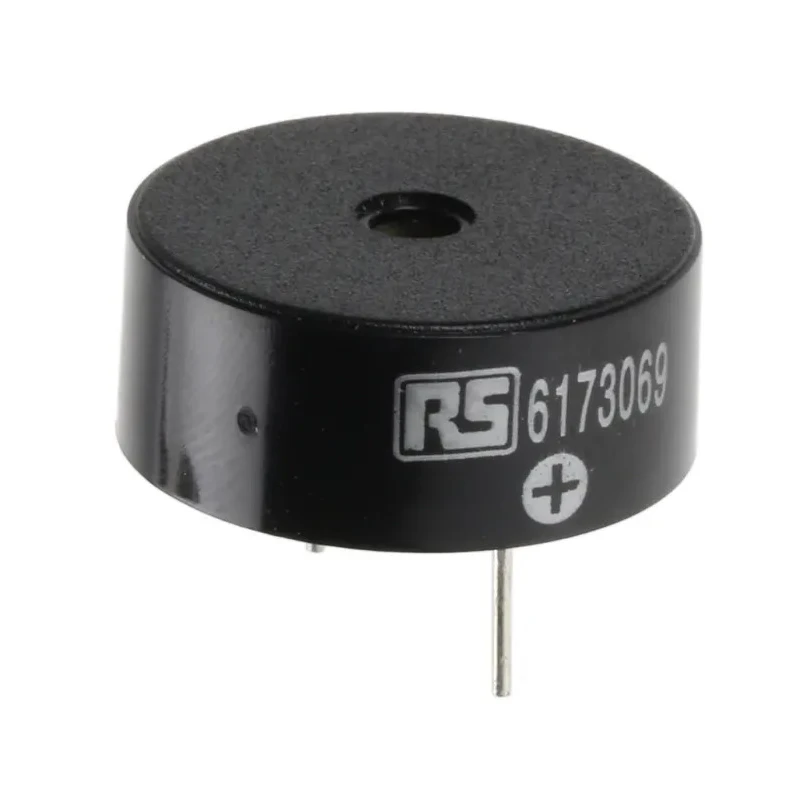

RS PRO Piezo Buzzer Component Through Hole Mount 3 V to 20 V DC, Continuous Tone 95 dB 23.5 mm Diameter 9.5 mm 617-3069

RS PRO 617-3069 is a high-quality piezo buzzer component designed for through hole mounting. Operating on a broad voltage range from 3 V DC minimum up to 20 V DC maximum, it delivers a consistent and loud continuous tone rated at 95 decibels. This small and compact buzzer features a diameter of 23.5 mm and a height of 9.5 mm, making it ideal for space-constrained electronic designs.

With a low power consumption of 15 mA supply current, the buzzer operates efficiently, maintaining energy-saving operation without sacrificing sound quality. Its frequency range extends from 2900 Hz to 3.9 kHz, ensuring a crisp and clear tone capable of being heard distinctly even in noisy environments. The device features a through hole mount design with PCB pin termination for straightforward and secure installation on printed circuit boards.

The buzzer functions reliably within a temperature range of -20°C to +60°C, making it suitable for various industrial, commercial, and consumer electronic applications. It is perfect for use in warning devices, alarms, and other electronic systems requiring a loud audible signal. Its internal drive type simplifies electronic circuit integration by producing the tone internally.

RS PRO products have undergone rigorous testing to comply with industry standards, and while this model does not list specific certifications, it meets electrostatic discharge and RoHS requirements for safe use in electronic assemblies. This component supports general industrial, commercial, and educational electronics projects where robust and clear audio signaling is essential.

Overall, the RS PRO 617-3069 Piezo Buzzer Component combines reliability, efficient power usage, and high audio performance in a compact and durable package. This piezo buzzer produces a loud continuous tone at 95 decibels.

It supports a wide voltage range from 3 V DC minimum to 20 V DC maximum. Features through hole mounting style for reliable PCB installation. Compact size with 23.5 mm diameter and 9.5 mm height. Operates efficiently with a supply current of 15 mA.

Designed for usability between -20°C to 60°C operating temperature range. This buzzer provides a frequency range from 2900 Hz to 3.9 kHz for clear sound output. Equipped with internal drive for simplified circuit design.

Terminated with PCB pins for secure electrical connection. Explore the extensive range of high-quality electronic components offered by RS PRO on EnvMart for your engineering and industrial needs.
