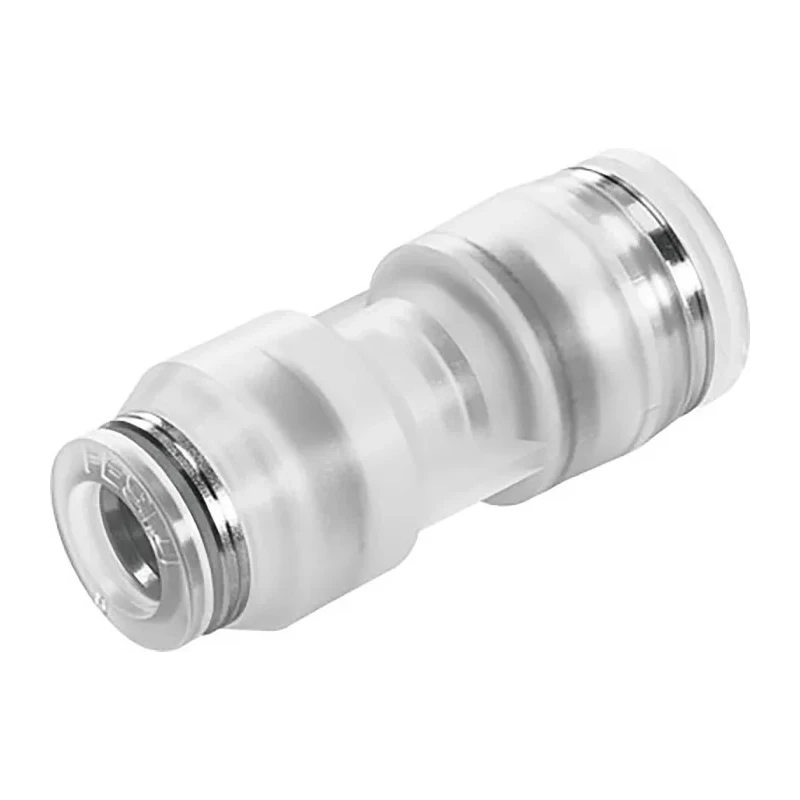

Festo Polypropylene Pneumatic Reducer Nipple Push-in 10 mm to Push-in 8 mm Threaded NPQP-D-Q10-Q8-FD-P10

Free Delivery in India | Lowest Global Shipping Charges

Festo Polypropylene Pneumatic Reducer Nipple Push-in 10 mm to Push-in 8 mm Threaded NPQP-D-Q10-Q8-FD-P10

Name: Festo Polypropylene Pneumatic Reducer Nipple Push-in 10 mm to Push-in 8 mm Threaded NPQP-D-Q10-Q8-FD-P10
Brand: FESTO
SKU: 198883
Price: 262.99 USD
Availability: InStock



Category Pneumatic Fitting Brand FESTO Condition New

Specifications

Country of Origin	Japan
Brand	Festo
Material	Polypropylene
Maximum Operating Pressure	10 bar
Model	NPQP-D-Q10-Q8-FD-P10
Series	NPQP
Maximum Operating Temperature	60°C
Sub Type	Reducer Nipple
Minimum Operating Temperature	-20°C
Connection Size A	Push-in 10 mm
Connection Type A	Push-in
Connection Type B	Threaded
Connection Size B	Push-in 8 mm

Key Features

Constructed from chemically resistant polypropylene material.
Push-in connection for 10 mm tubing and threaded connection for 8 mm tubing.
Supports a maximum operating pressure of 10 bar.
Temperature range from -20°C to 60°C for versatile applications.
Compliant with ANSI/NSF 51 and FDA 21 CFR standards, including food grade.
High corrosion and chemical resistance suited for extreme media environments.
Designed with a polypropylene housing and stainless steel tubing retainer for durability.
Transparent body allows easy visual monitoring of connections.

Product Description

The Festo NPQP-D-Q10-Q8-FD-P10 is a polypropylene pneumatic reducer nipple, part of the NPQP series designed for easy and reliable push-in tube connections. It features a push-in connection of 10 mm on one side and a threaded connection for 8 mm tubing on the other side, allowing seamless integration into pneumatic circuits requiring flow reduction or connection between different tubing sizes.

Constructed from chemically resistant polypropylene, this fitting withstands harsh media and environments, maintaining integrity up to a maximum operating pressure of 10 bar and temperatures ranging from -20°C to 60°C. The polymer housing combined with a stainless steel tubing retainer offers excellent corrosion resistance (CRC3) and mechanical strength suitable for demanding pneumatic applications.

Its compliance with multiple standards including ANSI/NSF 51, FDA 21 CFR 177.1520, FDA 21 CFR 177.2600, and NSF H1 Regulation No. 123949 ensures the fitting is food grade and safe for applications within the food and beverage industry, pharmaceutical production, clean room environments, and biotechnology sectors.

The transparent design allows operators to visually check connections for leaks or contamination, contributing to maintenance efficiency and operational safety. Manufactured in Japan, it guarantees high manufacturing standards and product reliability.

Constructed from chemically resistant polypropylene material. Push-in 10 mm to threaded 8 mm connection suitable for pneumatic systems. Rated for a maximum operating pressure of 10 bar and temperature range -20°C to 60°C.

FDA compliant and certified for food grade applications. High corrosion resistance ideal for harsh and chemically demanding environments. Stainless steel tubing retainer for secure and durable connections. Transparent housing enables visual monitoring of pneumatic connections.

Suitable for use in food and beverage, pharmaceutical, biotechnology, and clean room industries. Manufactured to high quality standards in Japan.
