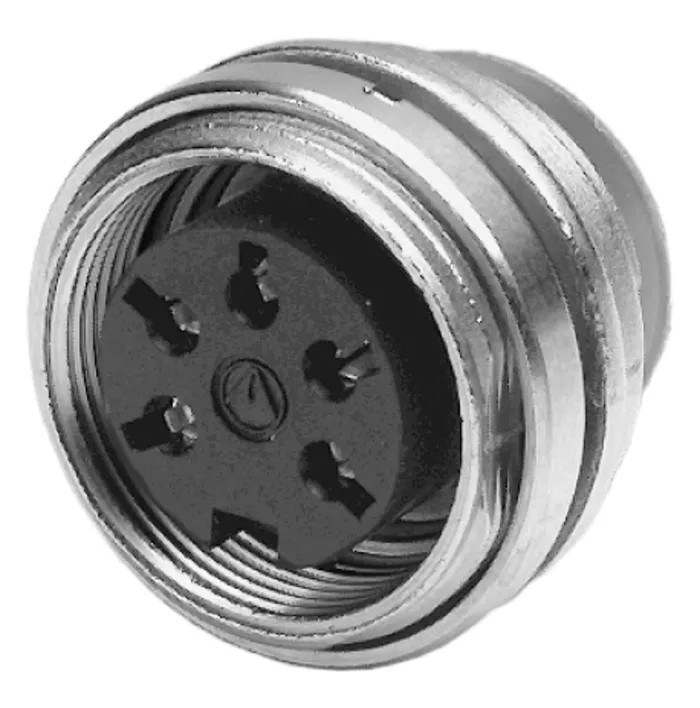

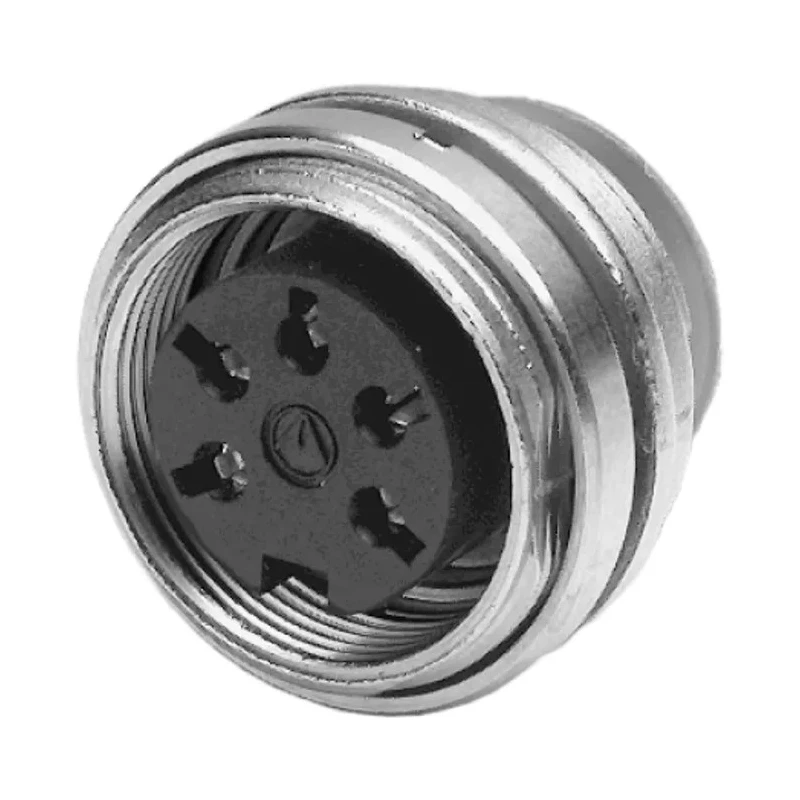

Amphenol Industrial signalmate C091 6 Pole Straight M16 DIN Socket 5A 300V IP40 Screw-On Panel Mount T3403 100 RS
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 300V |
| Brand | Amphenol Industrial |
| Orientation | Straight |
| Current | 5A |
| Model | T3403 100 RS |
| IP Rating | IP40 |
| Mount Type | Panel Mount |
| Housing Material | Polymer, Metal |
| Contact Material | Brass |
| Series | signalmate C091 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Pole Format | 6 |
| Contact Plating | Silver |
| Number of Contacts | 6 |
| Contact Gender | Female |
| Mating Type | Screw-On |
| Connector Size | M16 |
Key Features
- Designed for panel mounting with rear mounting ring nut for secure installation.
- Features 6 female contacts meeting signalmate C091 series specifications.
- Constructed with polymer and metal housing for durability and robustness.
- Silver-plated brass contacts ensure reliable electrical conductivity.
- Solder termination type for secure contact connections.
- Operates reliably between -40°C and 85°C temperature range.
- Metal screw thread and locking ring provide robust and vibration-resistant mating.
- Conforms to DIN EN 60130-9 / IEC 60130-9 locking standards with metal locking ring.
Product Description
Amphenol Industrial T3403 100 RS is a signalmate C091 series 6 Pole Straight M16 DIN Socket designed for panel mounting applications with robust construction and reliable electrical performance. Rated for 5A current and 300V voltage, it supports solder termination and screw-on mating type with a metal locking ring that secures the connection and meets DIN EN 60130-9 / IEC 60130-9 standards.
The connector features a polymer and metal housing that provides mechanical durability and chemical resistance in harsh industrial and automation environments. Its silver-plated brass contacts are female gender, ensuring excellent conductivity and corrosion resistance. It operates in a temperature range from -40°C up to 85°C, making it suitable for diverse ambient conditions.
This panel mount socket is equipped with a rear mounting ring nut for stable installation in control panels or industrial equipment enclosures. The IP40 ingress protection rating makes it suitable for indoor uses where protection against solid objects larger than 1 mm is required.
The T3403 100 RS is widely applicable in industrial electronics, manufacturing automation controls, machinery connectivity, and instrumentation harnessing. Its robust metal screw thread coupling and internal strain relief increase reliability in vibration-prone environments.
Designed for panel mounting with rear mounting ring nut for secure installation. Features 6 female contacts meeting signalmate C091 series specifications. Constructed with polymer and metal housing for durability and robustness.
Silver-plated brass contacts ensure reliable electrical conductivity. Solder termination type for secure contact connections. Operates reliably between -40°C and 85°C temperature range. Metal screw thread and locking ring provide robust and vibration-resistant mating.
Conforms to DIN EN 60130-9 / IEC 60130-9 locking standards with metal locking ring. Provides IP40 ingress protection suitable for indoor industrial applications. Manufactured in China and designed for industrial electronics and control systems.
Explore more DIN connectors and industrial-grade panel mount sockets in EnvMart’s Electronics & Electricals category to find the right connectivity solution for your system requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It is rated for 5A current and 300V voltage.
This model operates reliably between -40°C and 85°C.
It uses a solder termination type for secure contact connections.
The housing is constructed from polymer and metal, while the contacts are made of brass with silver plating.
It features a rear mounting ring nut for stable installation in control panels or industrial equipment enclosures.
It has an IP40 ingress protection rating, suitable for indoor use against solid objects larger than 1 mm.
This connector features 6 female contacts.
It conforms to DIN EN 60130-9 / IEC 60130-9 locking standards.
It utilizes a screw-on mating type with a metal locking ring for secure connections.
It is applicable in industrial electronics, manufacturing automation controls, machinery connectivity, and instrumentation harnessing.
The connector size is M16.
It is manufactured in China.
