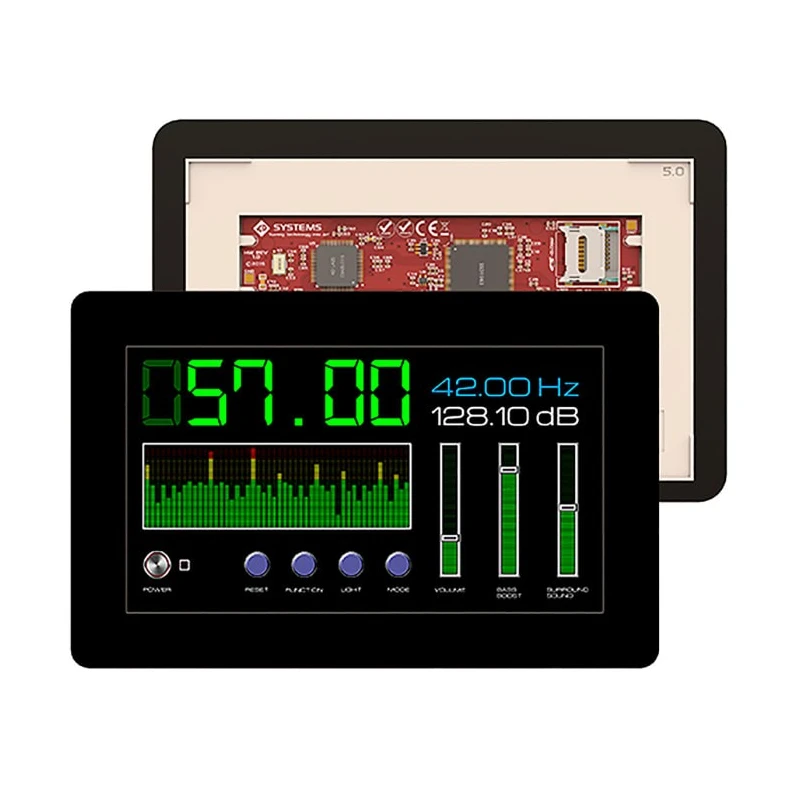

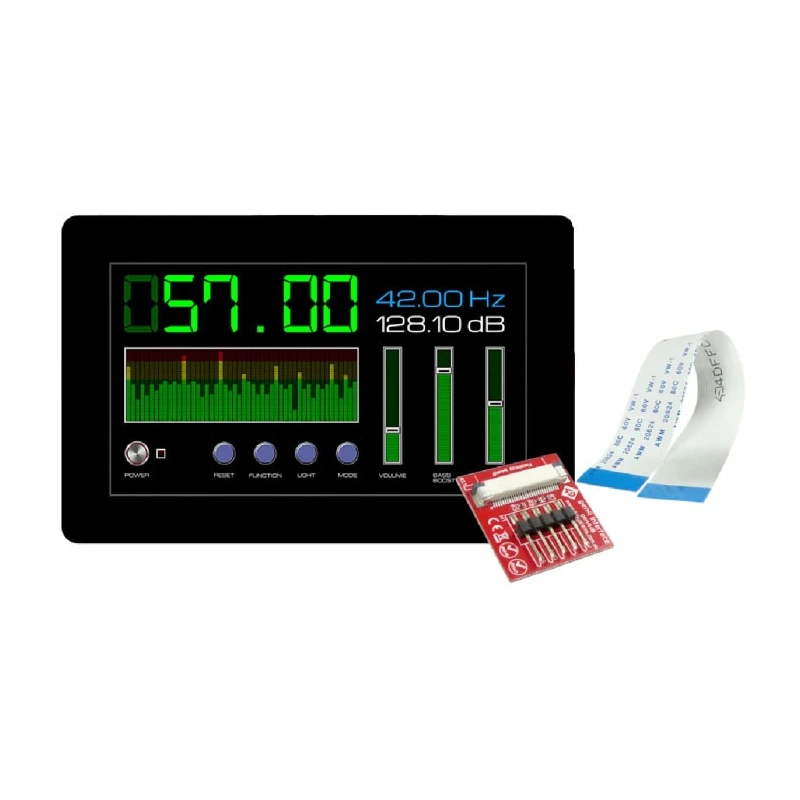

4D Systems 7 in 800 x 480 Pixel LCD Colour Display Touch Screen Serial Interface Capacitive gen4-uLCD-70DCT-CLB
Specifications
| Country of Origin | Australia |
|---|---|
| Display Type | LCD |
| Brand | 4D Systems |
| Current | 825mA |
| Height | 7.3mm |
| Model | gen4-uLCD-70DCT-CLB |
| Depth | 153.84mm |
| Width | 190.1mm |
| Series | gen4 |
| Maximum Operating Temperature | 60°C |
| Brightness | 475cd/m² |
| Minimum Operating Temperature | -10°C |
| Interface Type | Serial |
| Screen Resolution | 800 x 480 pixel |
| Standards/Approvals | CE |
| Touch Screen Type | Capacitive |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 4V |
| Viewing Area Dimensions | 86 x 154 mm |
| Backlight Type | LED |
| 500 | 1 |
| Diagonal Display Size | 7in |
| Contrast Ratio | 500:1 |
| Contrast Ratio 500 | 1 |
| 4D Systems gen4 7 in Arduino Compatible Display with Resistive Touch ScreenBrand | 4D Systems |
Key Features
- This display features a serial interface for simplified communication.
- The capacitive touch screen enables responsive human-machine interaction.
- It has a viewing area of 86 x 154 mm with LED backlighting for clear visuals.
- Operating voltage ranges between 4V and 5.5V with low current consumption of 825mA.
- The module supports a temperature range from -10°C to 60°C, suitable for varied environments.
- The display module includes a 30-pin ZIF socket for straightforward connection.
- It is powered by the 4D Systems Diablo16 processor offering advanced graphics and animation capabilities.
- Onboard micro-SD card slot allows multimedia storage and data logging.
Product Description
4D Systems gen4-uLCD-70DCT-CLB LCD Colour Display features a 7 inch diagonal screen size with an 800 x 480 pixel resolution and a capacitive touch panel. This display uses a serial interface type and includes a 30-pin ZIF connection, ensuring ease of integration into industrial, laboratory, and embedded electronics projects.
Powered by the embedded 4D Systems Diablo16 processor, it supports 65k RGB colors for vibrant image quality, along with 6 banks of 32KB flash memory for user applications and 32KB of RAM.
The device draws a current of 825mA within a 4V to 5.5V supply range and operates reliably in ambient temperatures from -10°C up to 60°C. It also features LED backlighting with a brightness of 475 cd/m² and a contrast ratio of 500:1, making it suitable for various lighting conditions.
The module's compact dimensions are approximately 190.1 mm in width, 153.84 mm in depth, and 7.3 mm in height, fitting slim profile installations. The capacitive touch screen enhances human-machine interface capabilities in commercial and industrial equipment.
This display module supports multiple GPIOs, I2C and SPI channels, PWM audio output, and optionally connects multimedia via an on-board micro-SD card slot for data logging. It is widely used in industrial automation, embedded electronics, and control systems.
This module is CE certified, ensuring compliance with industrial standards. Its compact design and multiple interface options facilitate integration in restricted spaces and diverse applications. The touch screen technology ensures precise and durable user interaction.
Onboard processing capabilities enable rich graphical content and animation support. Various GPIOs and communication interfaces support customized peripheral connectivity.
The 4D Systems gen4-uLCD-70DCT-CLB is an advanced, reliable choice for development in embedded, industrial, and commercial electronic interfaces. Explore further options and similar LCD Colour Displays within the Electronics Components catalog at EnvMart.
