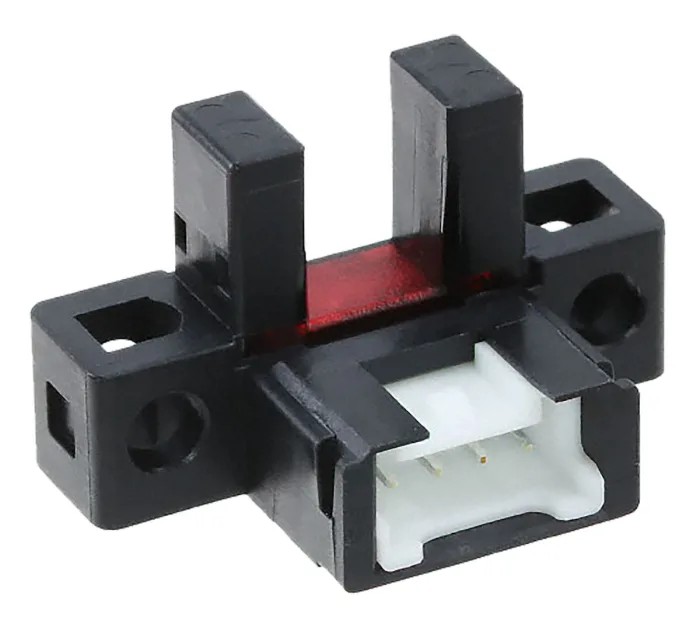

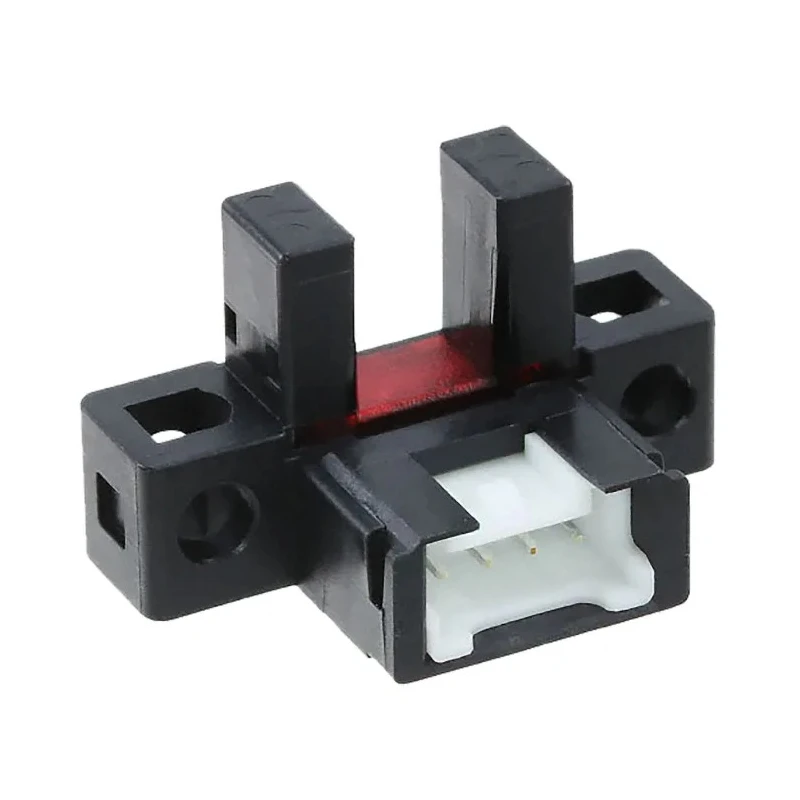

Panasonic Through Beam Photoelectric Sensor Fork Style 6 mm Detection Range 24V DC PNP Output IP40 PM-L65-P
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Response time | 20, 80μs |
| Light Source | Infrared |
| Detection range | 6 mm |
| Model | PM-L65-P |
| IP Rating | IP40 |
| Mount Type | Chassis Mount |
| Housing Material | Polycarbonate, Polybutylene Terephthalate |
| Output type | PNP |
| Series | PM-65 |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 50mA |
| DetectIon Type | Through Beam |
| Terminal type | 4-Pin Connector |
| Maximum dc Voltage | 24V dc |
| Standards/Approvals | IEC |
| Materials Detected | Opaque |
| Sensor Style | Fork |
Key Features
- Compact U-shaped fork style sensor for precise detection.
- Through beam detection type with infrared light source.
- PNP output with 4-pin connector for control integration.
- Operates at 24V DC with maximum 50mA current.
- Fast response times of 20 and 80 microseconds.
- Wide operating temperature range from -25°C to 55°C.
- Durable polycarbonate and polybutylene terephthalate housing.
- Chassis mount type with M3 screws for easy installation.
Product Description
Panasonic PM-L65-P Through Beam Photoelectric Sensor is a compact U-shaped fork sensor designed for accurate detection within a 6 mm range. Featuring a through beam detection type, the emitter and receiver are integrated within a single U-shaped housing, simplifying installation and enhancing detection reliability. It operates on 24V DC power with a PNP output type, providing a maximum current of 50mA and rapid response times of 20 and 80 microseconds.
The sensor uses an infrared light source to detect opaque materials efficiently, making it ideal for automation and control applications in electronics manufacturing, packaging lines, and quality control processes.
Constructed with durable polycarbonate and polybutylene terephthalate housing, the PM-L65-P is designed to withstand vibrations and impacts, aided by resin coverage on stress points like cable connections and internal circuits. It supports chassis mounting using M3 screws for easy installation and maintenance.
Its operating temperature range between -25°C and 55°C and IP40 rating make it suitable for use in environments that require moderate protection against solid particles but not liquids.
Manufactured in Japan under compliance with IEC standards, it does not hold hazardous area certification, ensuring safety and reliability for industrial applications. Compact U-shaped fork style sensor. Through beam detection with infrared light source.
PNP output and 4-pin connector terminal. 24V DC supply voltage, maximum current 50mA. Operating temperature range: -25°C to 55°C. IP40 rated for moderate dust protection. Housing made of polycarbonate and polybutylene terephthalate for durability.
Chassis mount with M3 screws. Made in Japan with IEC standards compliance.
This sensor is widely applicable in industrial automation, manufacturing processes, laboratory instruments, and quality control systems. Explore more Photoelectric Sensors and automation control gear in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The PM-L65-P sensor has a detection range of 6 mm.
This model features a PNP output type, which is suitable for control integration.
It operates at a maximum voltage of 24V DC.
The maximum current for this sensor is 50mA.
The response time of the PM-L65-P sensor is either 20 microseconds or 80 microseconds, depending on the application.
This unit can operate within a temperature range of -25°C to 55°C.
It is designed to detect opaque materials efficiently.
The sensor supports chassis mounting using M3 screws, which facilitates easy installation.
The housing is made of polycarbonate and polybutylene terephthalate, providing durability.
The PM-L65-P uses an infrared light source for detection.
This sensor has an IP40 rating, indicating moderate protection against solid particles.
It is manufactured in compliance with IEC standards.
