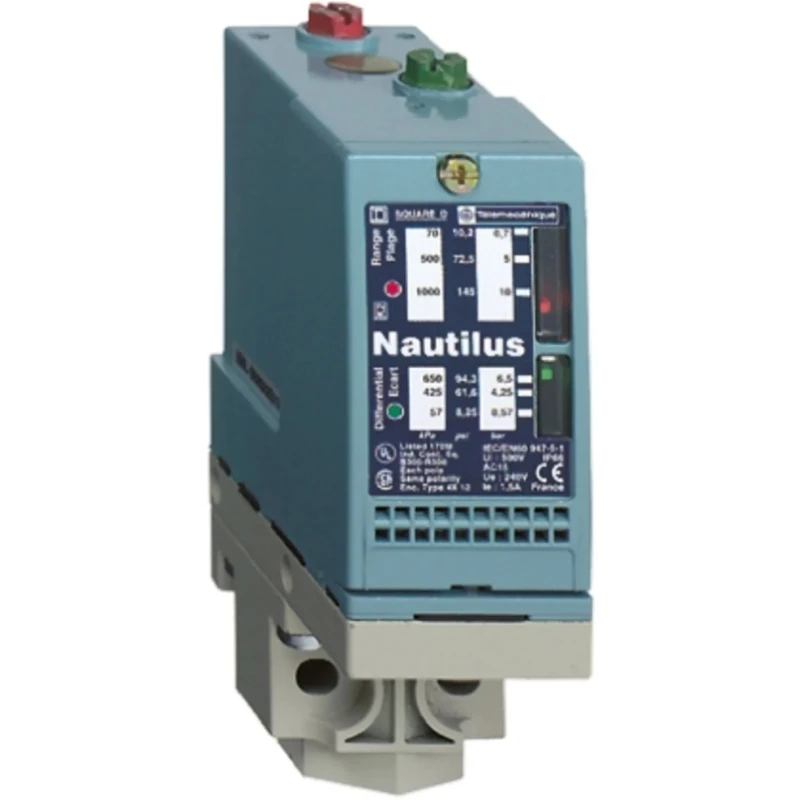

Telemecanique Sensors XMLB Series Differential Pressure Sensor Relay Output 500 mbar to 5 bar 120V–300V XMLBM05A2S11

Free Delivery in India | Lowest Global Shipping Charges

Telemecanique Sensors XMLB Series Differential Pressure Sensor Relay Output 500 mbar to 5 bar 120V - 300V XMLBM05A2S11

Name: Telemecanique Sensors XMLB Series Differential Pressure Sensor Relay Output 500 mbar to 5 bar 120V - 300V XMLBM05A2S11
Brand: Telemecanique Sensors
SKU: 198132
Price: 412.09 USD
Availability: InStock



Category Pressure Sensor Brand Telemecanique Sensors Condition New

Specifications

Country of Origin	Czech Republic
Accuracy	2 %
Brand	Telemecanique Sensors
Temperature range	- 25 to +70 °C
Model	XMLBM05A2S11
IP Rating	IP66
Housing Material	Zinc Alloy
Output type	Relay
Series	XMLB
Maximum Operating Temperature	70°C
Enclosure Rating	IP65 with plug-in connector, IP66 with terminal connections
Minimum Operating Temperature	-25°C
Terminal type	Screw Clamp
Maximum Pressure Measurement	5bar
Minimum Pressure Measurement	500mbar
Maximum Supply Voltage	300V
Minimum Supply Voltage	120V
Pressure Reading Type	Differential
Media Measured	Air, Fresh Water, Hydraulic Fluid, Sea Water
Operating rate	up to 120 operations / min. for diaphragm and 60 / min. for piston
Media connection	1/4"" NPT
Conduit connection	1/2"" NPT

Key Features

Suitable for measuring air, fresh water, hydraulic fluid, and sea water.
Equipped with screw clamp terminals for secure electrical connections.
Operates within a wide temperature range from -25°C to 70°C.
Features zinc alloy housing for durable protection and an IP66 rating.
Adjustable differential and single threshold detection for precise control.
Compatible with supply voltage from 120V to 300V.
Includes 1 NO and 1 NC snap acting relay contacts.
Designed for industrial and automation applications requiring pressure monitoring.

Product Description

Telemecanique Sensors XMLBM05A2S11 differential pressure sensor is a high-quality pressure switch designed for demanding industrial environments. This sensor measures differential pressure from 500 mbar up to a maximum of 5 bar, making it suitable for applications involving air, fresh water, hydraulic fluids, sea water, and steam.

The device features a relay output with 1 normally open (NO) and 1 normally closed (NC) snap acting contact, providing reliable switching capability for control circuits. Electrical connections use screw clamp terminals, ensuring secure and easy installation. The sensor supports a supply voltage range between 120V and 300V, accommodating varied system requirements.

Constructed with a robust zinc alloy housing, the sensor is rated IP66 for protection against dust and powerful water jets, with an enclosure rating of IP65 when using the plug-in connector option. Operating temperature tolerances range from -25°C to +70°C, covering most industrial ambient conditions.

Its adjustable differential and external pressure setting window allow for precise pressure monitoring and threshold control, while the operating rate supports up to 120 operations per minute for diaphragm types, ensuring durability under frequent cycling. Connections include a 1/4" NPT media connection and a 1/2" NPT conduit connection for easy integration into existing systems.

This Pressure Sensor complies with important industry standards including UL 508, EN/IEC 60947-5-1, CSA C22-2 No 14, and CE marking, verifying safety and performance criteria. Suitable for use in industrial automation, hydraulic systems, water treatment plants, HVAC control, and manufacturing process controls.

Zinc alloy housing offers corrosion resistance and mechanical protection. High accuracy of 2% ensures reliable pressure readings. Adjustable threshold and differential make it versatile for different pressure monitoring needs.

IP66 protection rating suitable for harsh industrial and outdoor environments. Relay output enables integration with control systems and alarms.

Telemecanique Sensors' XMLB Series pressure switches provide robust and reliable pressure detection solutions. Explore our range of advanced sensors for precise industrial control at EnvMart.
