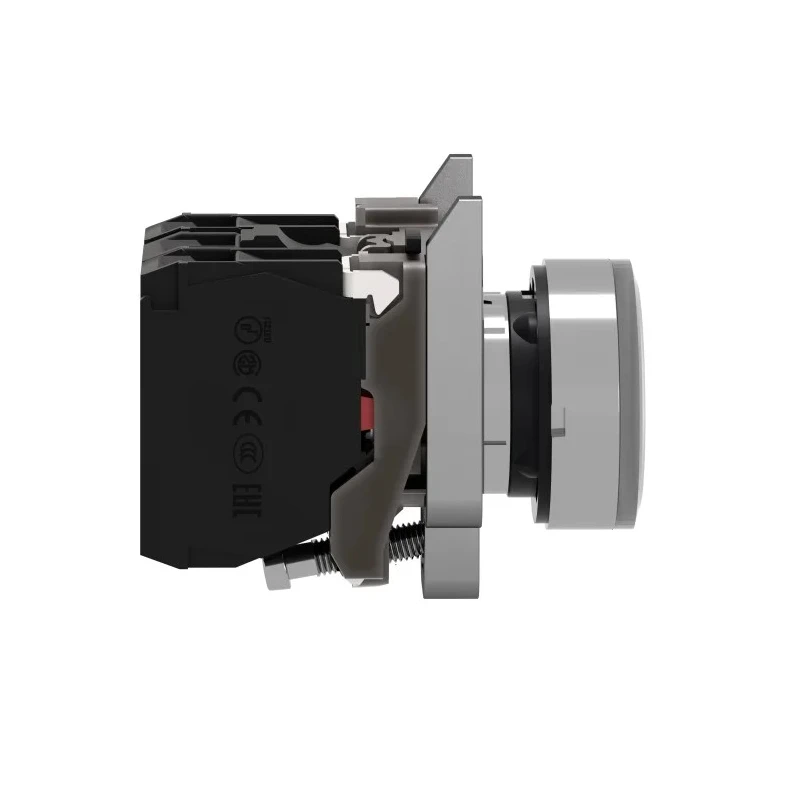

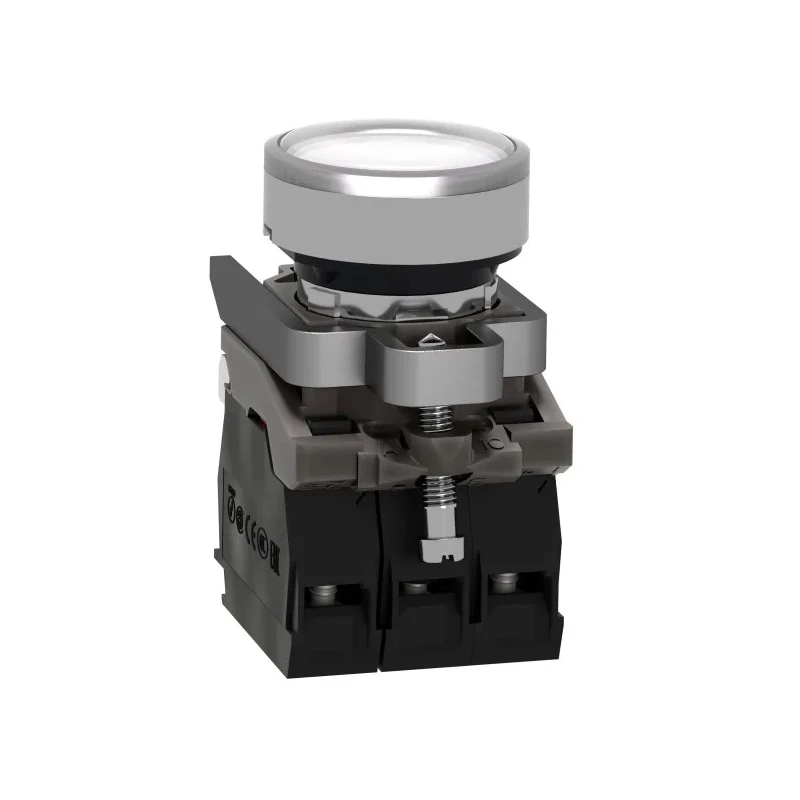

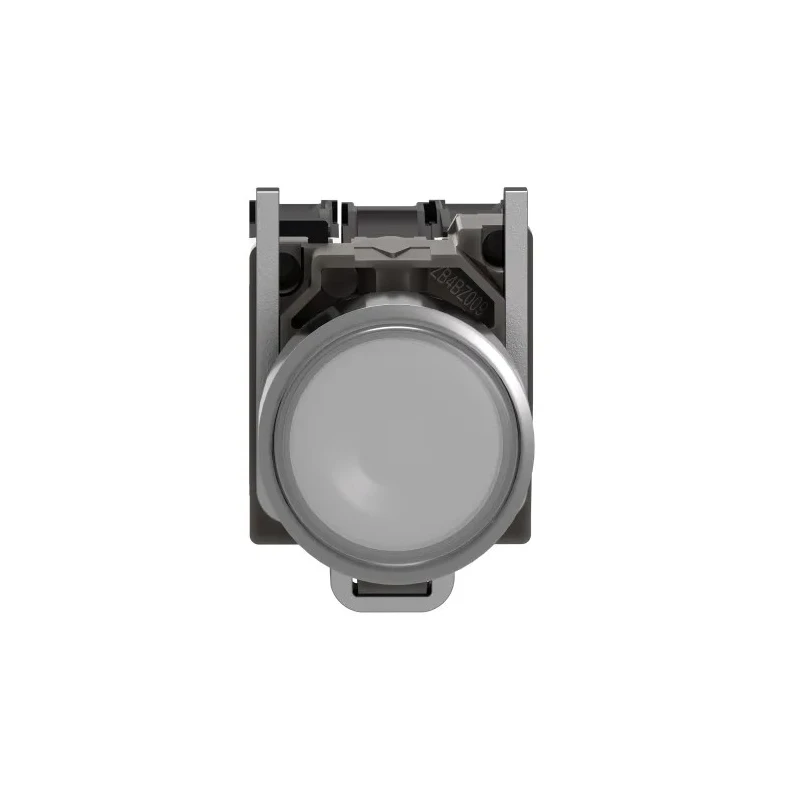

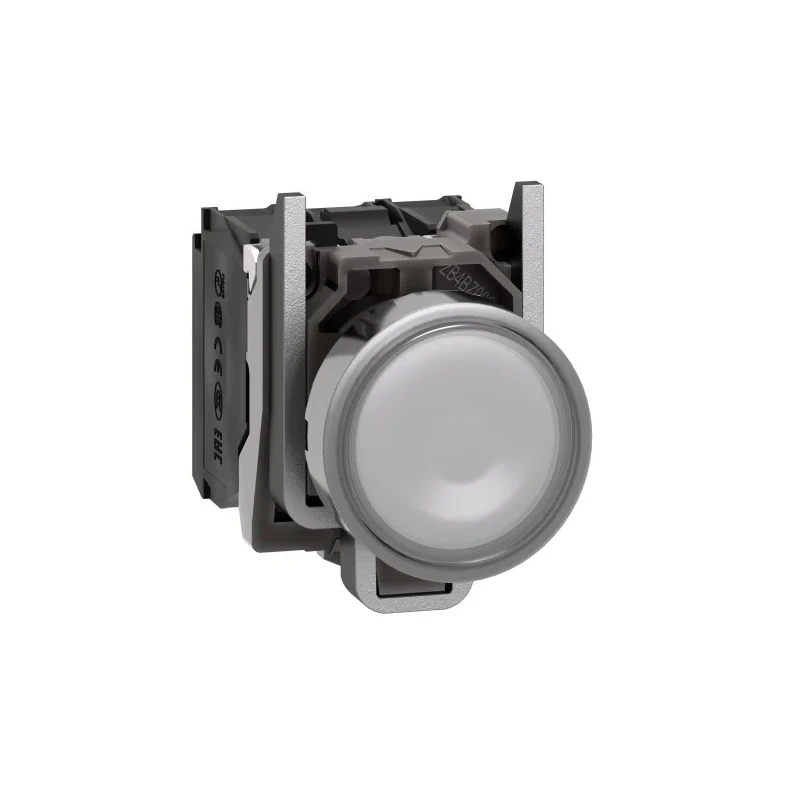

Schneider Electric Harmony XB4 Series Illuminated Push Button Switch, Spring Return, 22 mm Panel Cutout, SPDT XB4BW31G5

Schneider Electric Harmony XB4 Series Illuminated Push Button Switch model XB4BW31G5 is engineered for panel mounting with a compact 22 mm cutout diameter. This push button switch features a round actuator with white illumination, providing clear indication and enhanced usability in control stations and automation panels.

The switch operates with a spring return mechanism ensuring momentary actuation and consists of a SPDT contact configuration (1 normally open and 1 normally closed contact). Designed to withstand industrial environments, it supports contact voltages up to 600V DC and AC, and a contact current up to 10 A.

Robust construction using chromium plated metal finishes alongside a Zamak fixing collar offers durability while maintaining a sleek and compact form that fits in restricted panel spaces. The switch conforms to major safety and quality standards including EN/IEC 60947 series, UL 508, and CSA norms, assuring high reliability and safety compliance.

Protection ratings IP67, IP69, and IP69K make this device resistant to water ingress, high-pressure steam, and harsh cleaning processes, suitable for demanding industrial, manufacturing, and automotive applications. It is tested for vibration resistance up to 5 gn confirming resilience in environments with mechanical vibrations.

Operating temperature range from -25°C to 70°C expands its usability across various climates and industrial conditions. The device features a screw terminal type for secure electrical connections and includes a blank legend for custom labeling.

As part of Schneider Electric's Better World program, this product is designed for repairability by the end user to support sustainability and reduce waste. The push button switch features a spring return operation for reliable momentary control.

It is illuminated with a white LED to enhance visibility in control panels. Compact design with a 22 mm panel cutout and a round actuator style suits space-restricted panels. Durable chromium plated metal finish with a Zamak fixing collar ensures long service life.

Suitable for operating temperatures from -25°C to 70°C for versatile applications. Rated for contact voltages up to 600V DC and AC with a switch contact current of 10 A. Compliance with international standards including EN/IEC 60947, UL 508, CSA C22.2 No. 14 ensures safety and quality.

Protection ratings include IP67, IP69, and IP69K providing resistance to water, steam, and harsh cleaning environments. Vibration resistance tested up to 5 gn to maintain performance in industrial settings. End-user repairable design supports sustainability and maintenance ease.

This push button switch is ideal for use in electrical panels, control stations, automation lines, automotive production, commercial warehouses, and various industrial applications requiring reliable control switches with illumination and environmental protection.
