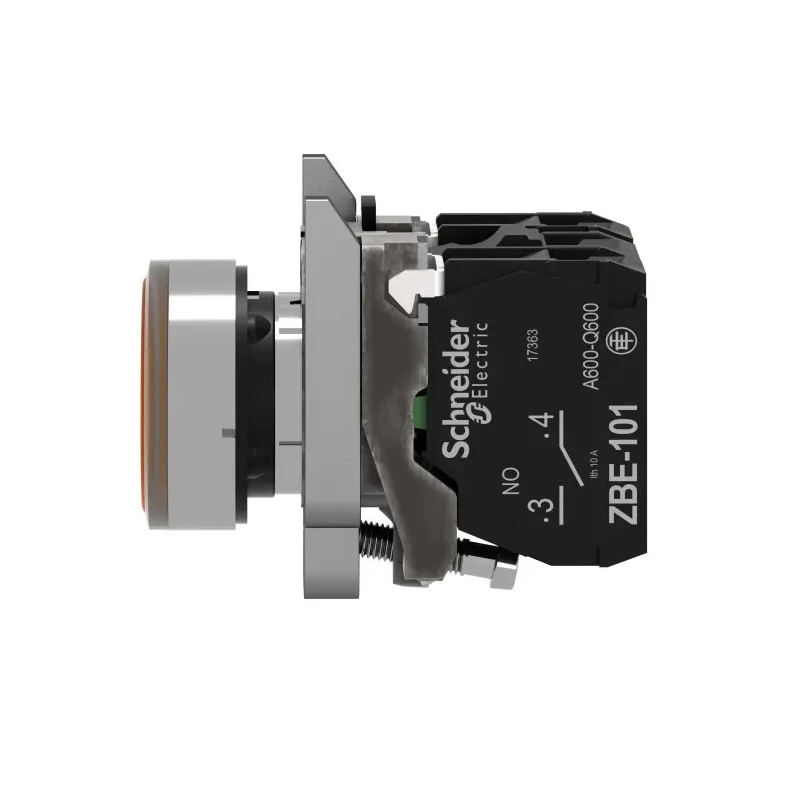

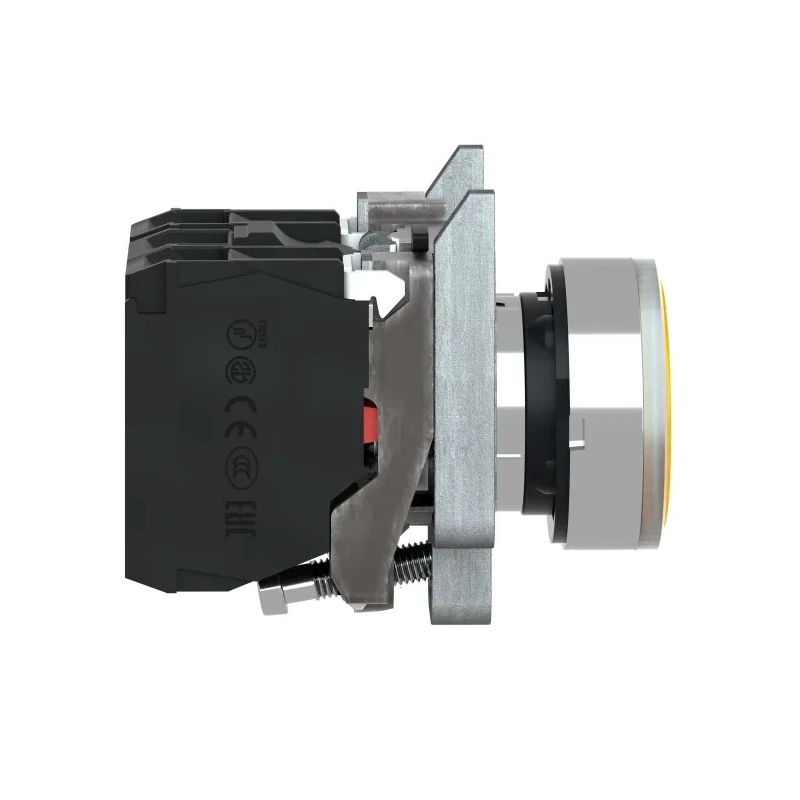

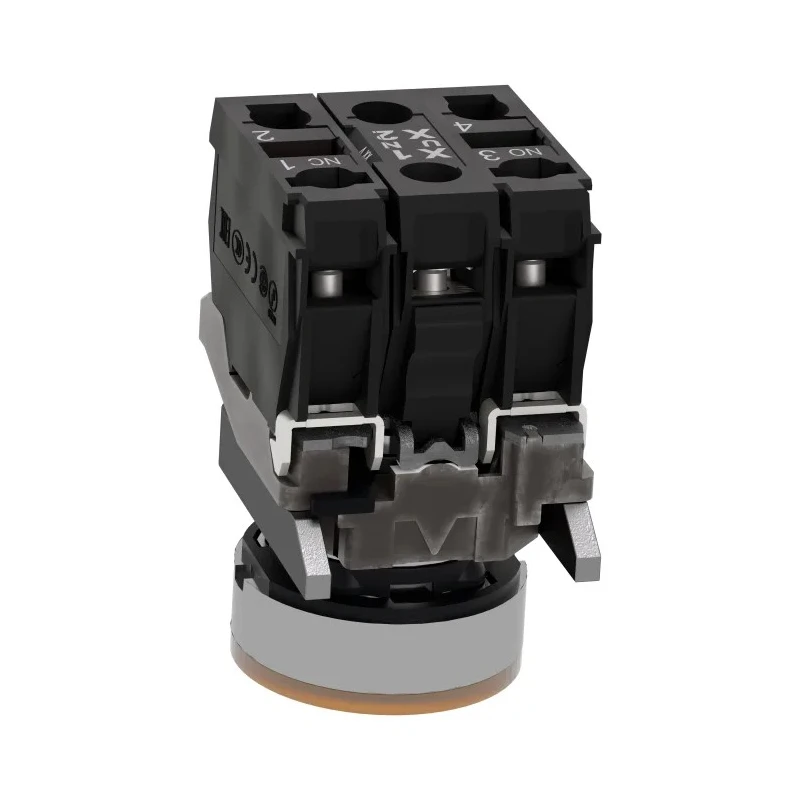

Schneider Electric Harmony XB4 Series Illuminated Push Button Switch Spring Return Panel Mount 22 mm Cutout SPDT XB4BW35G5

Schneider Electric XB4BW35G5 Harmony XB4 Series Illuminated Push Button Switch is engineered for precision control in panel-mounted applications. This orange LED illuminated, round actuator push button features a spring return mechanism and a compact 22 mm cutout size, enabling seamless integration in control panels where space is limited.

Designed for demanding industrial environments, this switch boasts a durable chromium plated metal finish and a Zamak fixing collar that ensure robust mechanical integrity and ease of maintenance. Its protected integral LED light source with a plain lens provides clear visibility for operational status.

With a high mechanical endurance of 1,000,000 cycles, the switch promises long-lasting reliability. It operates effectively within a wide temperature range from -25°C to 70°C, and holds exceptional ingress protection ratings including IP66, IP67, IP69, and IP69K, making it resistant to dust, water jets, steam cleaning, and high-pressure washers.

The contact configuration is SPDT (single pole double throw), suitable for various switching needs, with screw terminal connections for secure wiring. Electrical ratings include 600V AC/DC voltage capability and a 10A contact current, supported by short circuit protection conforming to EN/IEC 60947-5-1.

This switch is compliant with multiple industry standards such as EN/IEC 60947, UL 508, and CSA C22.2 No 14, ensuring quality and safety assurance in critical applications. It is also repairable by the end user, contributing to sustainability and lifecycle management under the RS Better World program.

Applications span a wide spectrum including control stations and panels for emergency stop scenarios, automotive manufacturing, factory automation lines, and commercial warehouses. This makes the Schneider Electric XB4BW35G5 an essential component for reliable control in electrical automation systems, manufacturing, and industrial safety applications.

Illuminated push button with protected integral LED light source and plain lens. Compact 22 mm mounting diameter suitable for panel mounting with restricted space. Durable chromium plated metal finish with Zamak fixing collar for long life.

High mechanical durability with 1,000,000 cycles ensuring consistent performance. Wide operating temperature range from -25°C to 70°C. IP66, IP67, IP69, IP69K rated for protection against dust, water jets, and steam cleaning.

Suitable for single pole double throw switching with screw clamp terminal connection. Complies with multiple international standards including EN/IEC 60947 and UL 508. 10A switch contact current rating with short circuit protection via 10 A cartridge fuse.

Designed for use in industrial, commercial, and automotive control applications. Explore additional Schneider Electric products within our electrical switches and components range to find compatible control solutions for your industrial automation needs.
