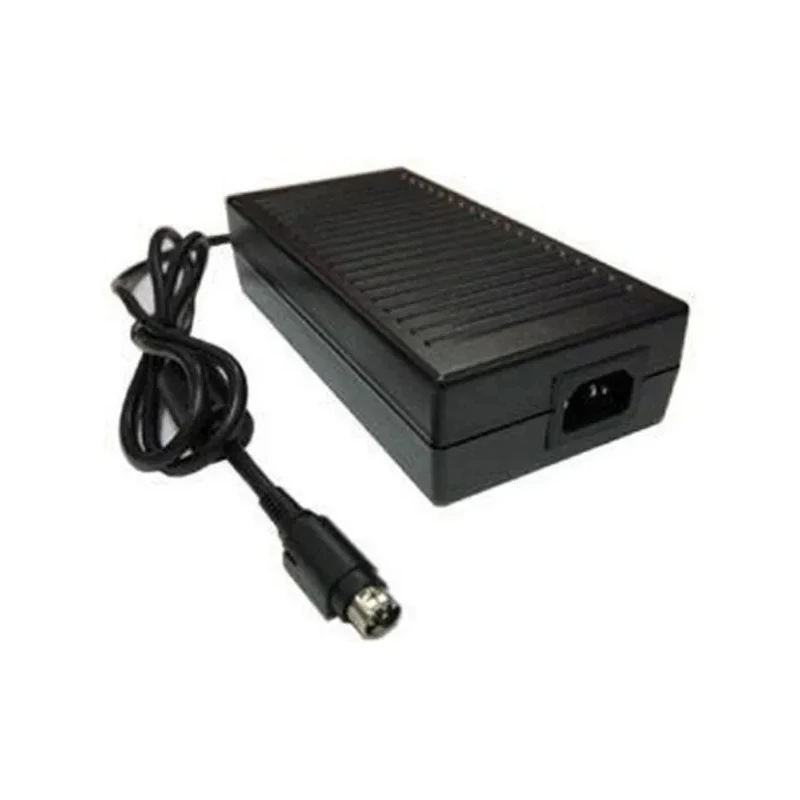

TDK-Lambda AC/DC Adapter C14 150 W 19V dc Output 7.9 A DT-150PW-190-D

Free Delivery in India | Lowest Global Shipping Charges

TDK-Lambda AC/DC Adapter C14 150 W 19V dc Output 7.9 A DT-150PW-190-D

Name: TDK-Lambda AC/DC Adapter C14 150 W 19V dc Output 7.9 A DT-150PW-190-D
Brand: TDK-Lambda
SKU: 198064



Category AC/DC Adapter Brand TDK-Lambda Condition New

Specifications

Country of Origin	Taiwan
Brand	TDK-Lambda
Power	150W
Efficiency	89%
Length	170mm
Model	DT-150PW-190-D
Depth	44mm
Cable Length	1050mm
Width	85mm
Series	DT150-D
Maximum Operating Temperature	60°C
Load Regulation	5 %
Minimum Operating Temperature	-20°C
Plug Type	C14
Number of outputs	1
Maximum Input Voltage	264V ac
Output Voltage	19V dc
Minimum Input Voltage	90V ac
Input Connector Type	IEC 320-C14
Adapter Current	7.9A
Energy Efficiency Level	VI
Low profile insulated case	85 x 170 x 44mm
TDK-Lambda AC/DC AdapterBrand	TDK-Lambda

Key Features

Features a C14 IEC 320 input connector and 1050 mm cable length.
Compact insulated low profile case measuring 85 x 170 x 44 mm.
Wide input voltage range from 90V AC up to 264V AC for versatile usage.
Operating temperature range from -20°C to 60°C, supporting diverse environments.
High efficiency of 89% with Energy Efficiency Level VI compliance.
Includes overvoltage and short circuit protection for device safety.
Certified to multiple safety and EMC standards including IEC 60950-1, UL, FCC Class B, and CSA.
Typical industrial and instrumentation applications requiring reliable 150W desktop power.

Product Description

TDK-Lambda DT-150PW-190-D AC/DC Adapter is a robust external desktop power supply designed for industrial and instrumentation applications. It provides a reliable 19V DC output at a power rating of 150W and current capacity of 7.9 A, suitable for powering diverse electronic devices.

This adapter features a compact and insulated low-profile case measuring 85 mm width, 170 mm length, and 44 mm depth, making it convenient for desktop and embedded use. The power supply operates efficiently across a wide AC input voltage range from 90V to 264V, accommodating global power standards and fluctuations.

Designed with safety and compliance in mind, the unit adheres to IEC 60950-1, UL, FCC Class B, CSA 60950-1, EN 55022-B, EN 55024, and EN 69501-1 standards. It includes protections against overvoltage and short circuits, contributing to device and user safety. The efficiency rating of 89% and Energy Efficiency Level VI certification ensure low power loss and environmental suitability.

The adapter remains operational in ambient temperatures ranging from -20°C to 60°C and features a power factor correction (PFC) of typically 0.9 at full load, minimizing harmonic distortions. The 1050 mm cable ends with a molded Kykon 4-pin connector, providing convenient and secure connections.

Compact, insulated low profile enclosure for desktop use. Wide input voltage range 90-264V AC supports global use. High efficiency 89% with Energy Efficiency Level VI. Single output providing stable 19V DC at 7.9 A current.

Overvoltage and short circuit protection integrated. Certified to international safety and EMC standards. Suitable for instrumentation, industrial device powering and other general purposes. Manufactured in Taiwan, Province Of China for quality assurance.

These external desktop power supplies are ideal for industrial, laboratory, manufacturing, and commercial applications requiring reliable and efficient DC power delivery. The low standby power consumption and compliance with ErP Level V make this adapter a sustainable choice for energy-conscious environments.
