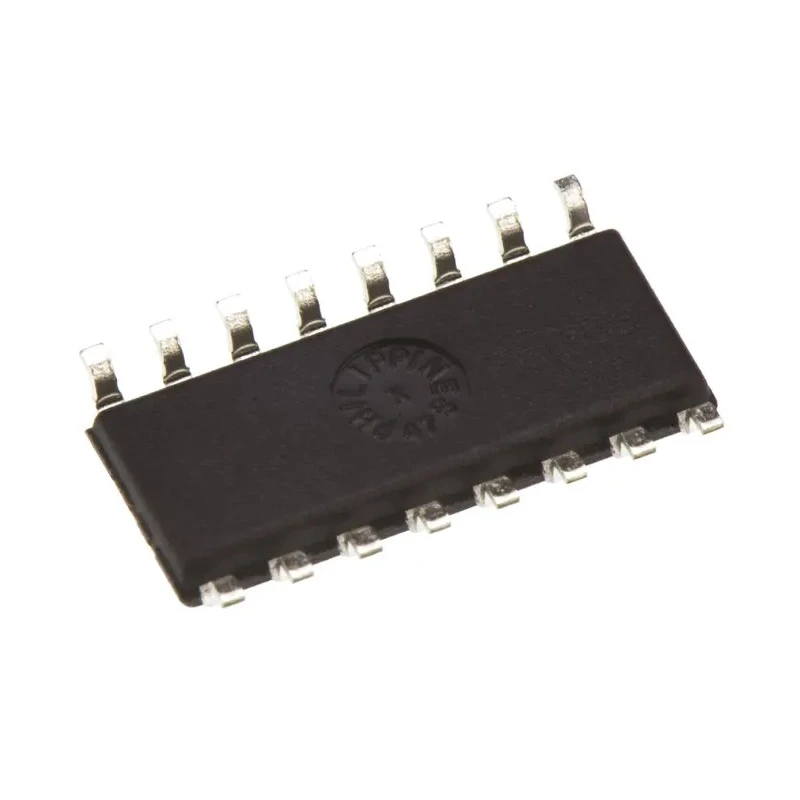

Vishay 4 CMOS Quad SPST Multiplexer 16-Pin SOIC DG413LEDY-GE3

Vishay DG413LEDY-GE3 is a 4 CMOS Quad SPST multiplexer designed for high accuracy and low power consumption in an integrated circuit format. Housed in a 16-Pin SOIC package, it facilitates surface mount applications widely used in industrial and laboratory equipment.

This multiplexer is compatible with both CMOS and TTL logic families, providing flexibility for various digital and analogue switching applications. It includes four independent single-pole, single-throw switches combined in a single chip, optimized for signal clarity with a low on-state resistance of 75 ohms.

The device operates efficiently over a supply voltage range of -3 to 16 volts, making it suitable for both single-supply and dual-supply use cases. Operating temperature spans from -40°C to 85°C which supports deployment in harsh environmental conditions.

With physical dimensions of 10mm length, 4mm width, and 1.55mm height, the DG413LEDY-GE3 provides a compact solution for PCB layouts requiring minimal space without compromising performance.

Compatible with CMOS and TTL logic families. Quad SPST configuration with 4 elements per chip. Surface mount SOIC package suitable for automated PCB assembly. Wide voltage operation from -3V to 16V. Maximum on-state resistance of 75 Ω ensuring signal integrity.

Robust operation over a temperature range of -40°C to 85°C. Compact package dimensions for space-sensitive designs. Manufactured in the Philippines to high-quality standards.

This multiplexer is ideal for applications including test equipment, measuring instruments, computer peripherals, and portable electronic devices in industrial, laboratory, and commercial environments. It supports efficient analogue signal routing with high accuracy and reliable switching control.
