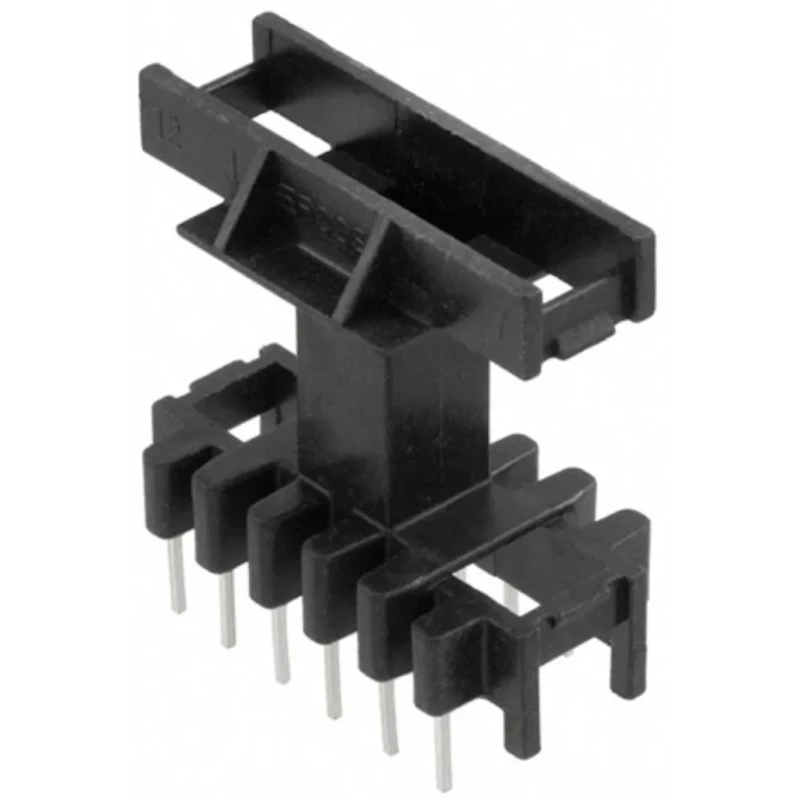

TDK Vertical Coil Former for use with E 30/15/7 Core Fibreglass Reinforced PolyTerephthalate 12 Pins B66232J1112T001

TDK B66232J1112T001 vertical coil former is a transformer accessory designed specifically for use with the E 30/15/7 core type. It is fabricated from high-grade fibreglass reinforced polytereththalate material offering excellent mechanical strength and electrical insulation properties.

This coil former supports a maximum operating temperature of 155°C, making it suitable for industrial and electrical transformer manufacturing environments subject to elevated thermal stress. Its design incorporates 12 pins, facilitating reliable coil winding and electrical connections with the transformer core.

Dimensionally, the coil former measures 35.4mm in length, 34.8mm in depth, and 19.2mm in width, ensuring a compact footprint in transformer assemblies. It meets environmental compliance with RoHS directives and maintains UL 94 V-0 insulation classification conforming to IEC60085 standards, providing safety and performance assurance.

The coil former also conforms to solderability standards as per IEC 60068-2-58, ensuring robustness in manufacturing processes. Proudly manufactured in the Czech Republic, the product reflects stringent quality and manufacturing controls.

Constructed using fibreglass reinforced polytereththalate for strength and insulation. Maximum operating temperature of 155°C supports high thermal environments. 12 pins enable effective coil winding and electrical connectivity.

Compact size: 35.4mm length x 34.8mm depth x 19.2mm width. Certified RoHS compliance confirms environmental safety. Meets UL 94 V-0 insulation and IEC60085 standards for electrical safety. Solderability tested against IEC 60068-2-58 for manufacturing durability.

Manufactured in the Czech Republic ensuring high build quality.

This coil former is ideal for applications in power transformers used in industrial, electronic, HVAC, and electrical supply sectors where efficient coil winding and thermal endurance are critical. It supports transformer manufacturers seeking reliable and compliant transformer accessories.
