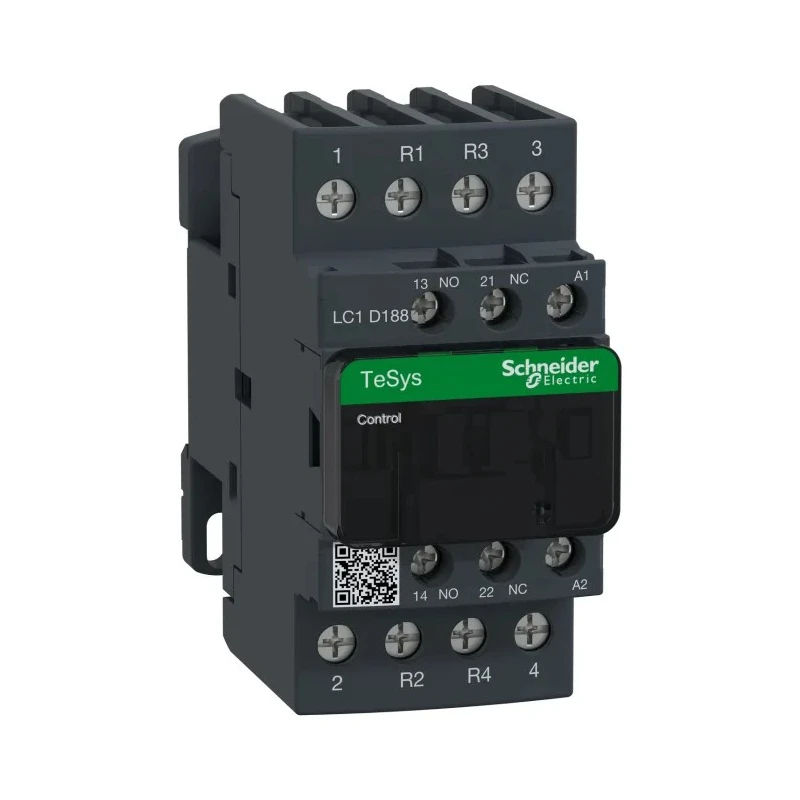

Schneider Electric LC1D Contactor, 48V AC Coil, 4-Pole, 32 A, 2.5 W Coil Power, 690V AC Contact Voltage LC1D188E7

Free Delivery in India | Lowest Global Shipping Charges

Schneider Electric LC1D Contactor, 48V AC Coil, 4-Pole, 32 A, 2.5 W Coil Power, 690V AC Contact Voltage LC1D188E7

Name: Schneider Electric LC1D Contactor, 48V AC Coil, 4-Pole, 32 A, 2.5 W Coil Power, 690V AC Contact Voltage LC1D188E7
Brand: Schneider Electric
SKU: 197835
Price: 134.52 USD
Availability: InStock



Category Contactors Brand Schneider Electric Condition New

Specifications

Country of Origin	India
Brand	Schneider Electric
Function	Motor Control, Resistive Load
Length	105mm
Model	LC1D188E7
Depth	97mm
Width	45mm
Mount Type	Plate, Rail Mount
Series	LC1D
Power Rating	2.5W
Maximum Operating Temperature	60°C
Minimum Operating Temperature	-5°C
Terminal type	Screw Clamp
Number of Poles	4
Standards/Approvals	CCC, CSA, EAC, IEC, RoHS, UL
Contact Voltage	690V ac
Coil Voltage	48V ac
Normal State Configuration	2 NO/2 NC
Better World Claim	Designed for Disassembly
Contact Current	32A
Number of Auxiliary Contacts	2
Auxiliary Contact Configuration	1 NO/1 NC
Operational Current Ie	32A
Control Circuit Voltage Uc	48V ac
Contactor Application	Resistive Load
Pole and Throw Configuration	4

Key Features

The coil operates at 48V AC with a power consumption of 2.5 W for efficient control.
Four poles allow multi-circuit switching capabilities suitable for complex automation systems.
The contactor supports a contact voltage of 690V AC ensuring compatibility with high voltage circuits.
Screw clamp terminals accommodate solid conductors up to 16 mm² for secure electrical connections.

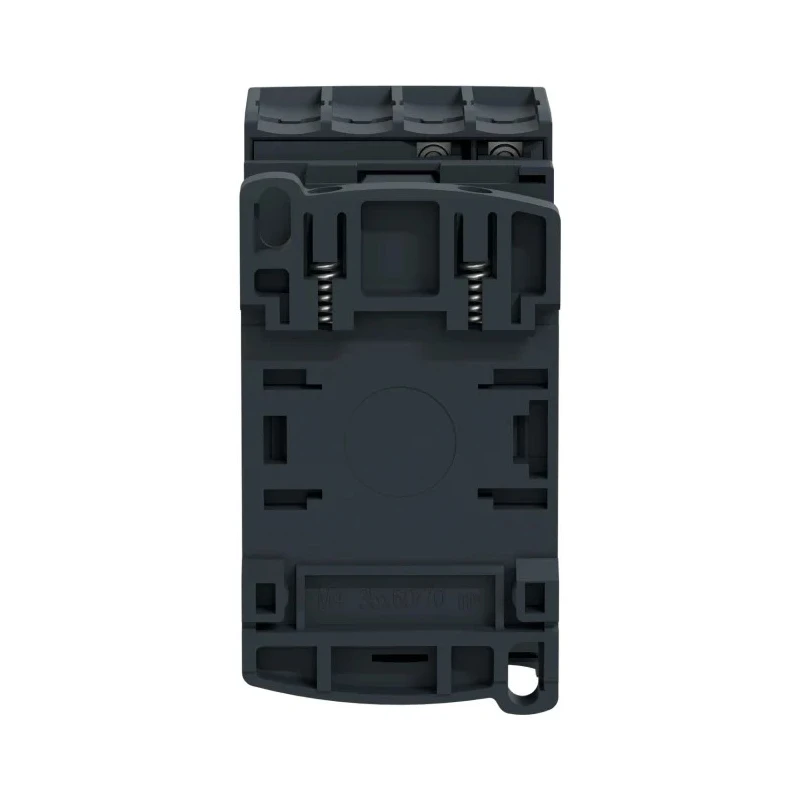

Designed for mounting on plate or DIN rail in industrial and commercial panels.
Includes auxiliary contacts configured as 1 NO (normally open) and 1 NC (normally closed) providing signaling functionalities.
Operating temperature range from -5°C to 60°C with IP20 protection on front face for durability.
Mechanical durability is rated at 15 million cycles providing long service life in demanding applications.

Product Description

Schneider Electric LC1D188E7 contactor is a robust industrial switching device designed for precise motor control and resistive load switching in automation and electrical distribution systems. Featuring a 48V AC coil that consumes 2.5 W of power, this contactor operates reliably within commercial and industrial environments.

With four poles rated for a 32 amp operational current and a contact voltage rating of 690V AC, it ensures safe and efficient multi-circuit switching in high-voltage power circuits. The device is suitable for mounting on plates or DIN rails, making it adaptable to a range of industrial panel configurations.

Its screw clamp terminals accept solid conductors up to 16 mm², facilitating secure and stable connections. The built-in auxiliary contacts, comprising one normally open (NO) and one normally closed (NC), enable effective signaling and control circuit functionalities including mirror contact provision.

Designed to operate within a temperature range of -5°C to 60°C, the contactor offers IP20 protection on its front face and complies with various international standards such as CCC, CSA, EAC, IEC, RoHS, and UL, ensuring broad industry acceptance and safety compliance.

This Schneider Electric LC1D188E7 contactor is ideal for controlling resistive heaters, motors in production lines, and a variety of process systems. Its mechanical durability rated at 15 million operations guarantees longevity and reliability in critical industrial applications.

The coil draws an inrush current of approximately 70 VA and holds consumption around 7 to 7.5 VA for optimized control behavior.

The contactor can withstand short-time fault currents up to 145 A for 10 seconds at 40 °C and has a making capacity of up to 300 A at 440 V, ensuring robustness in fault conditions.

The tightening torque for control terminals is approximately 1.7 N·m, and 1.8 N·m for power terminals, aiding in proper installation. Explore EnvMart’s range of industrial automation components for other Contactors and control gear suited to your operational needs.
