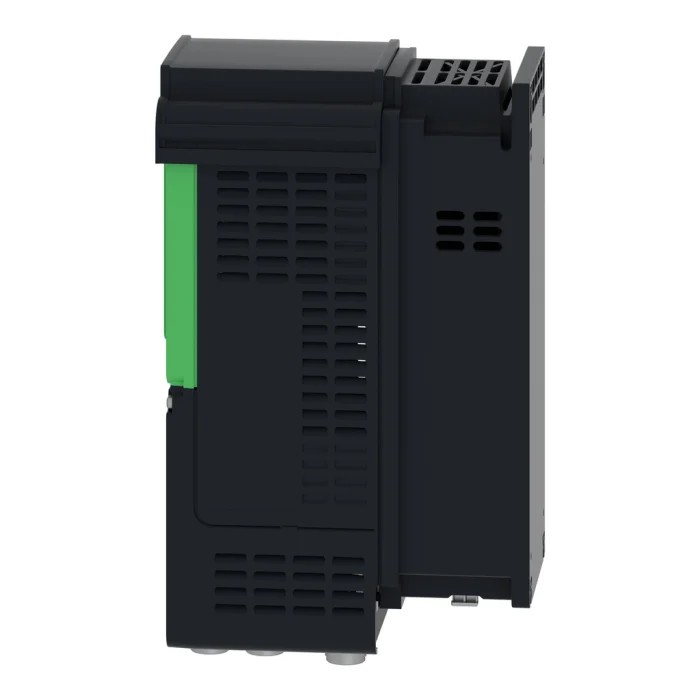

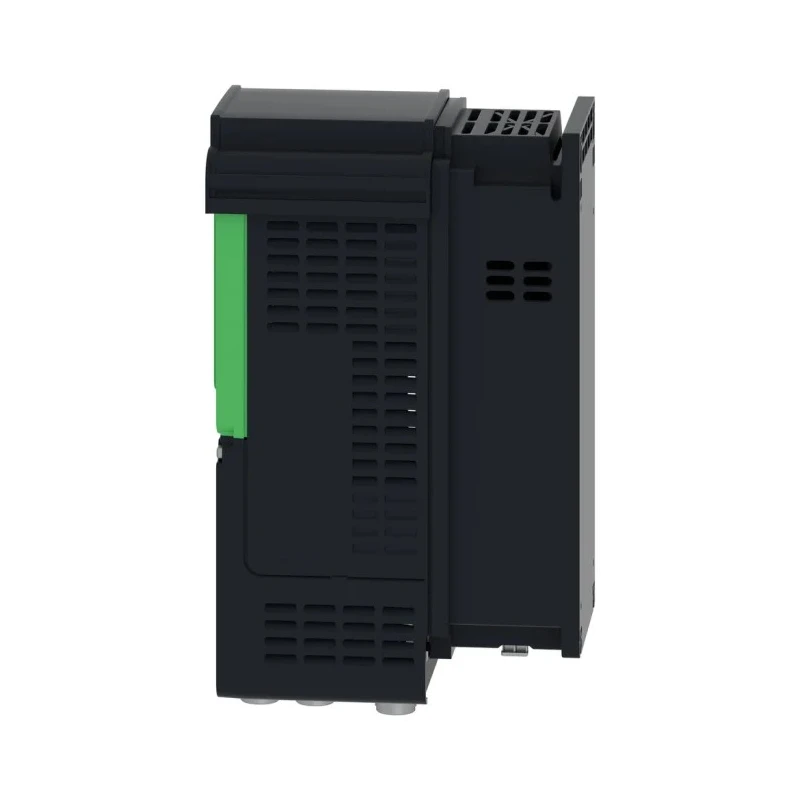

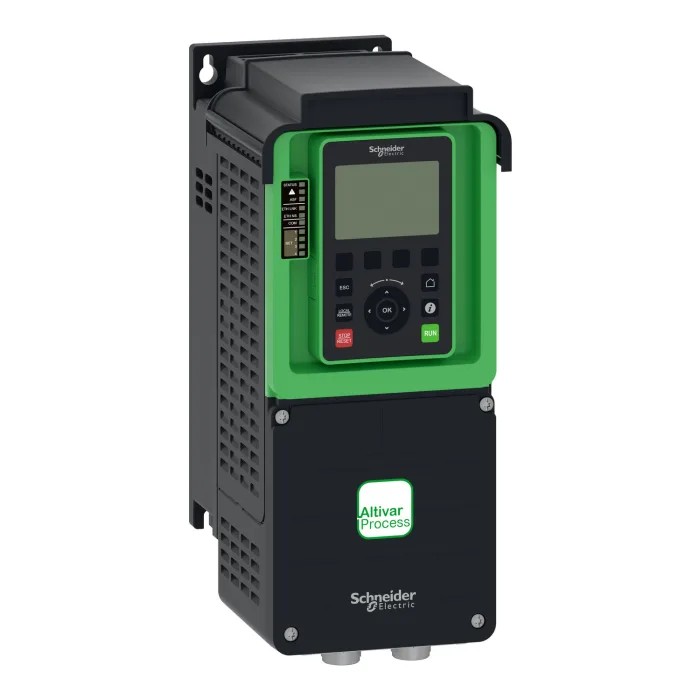

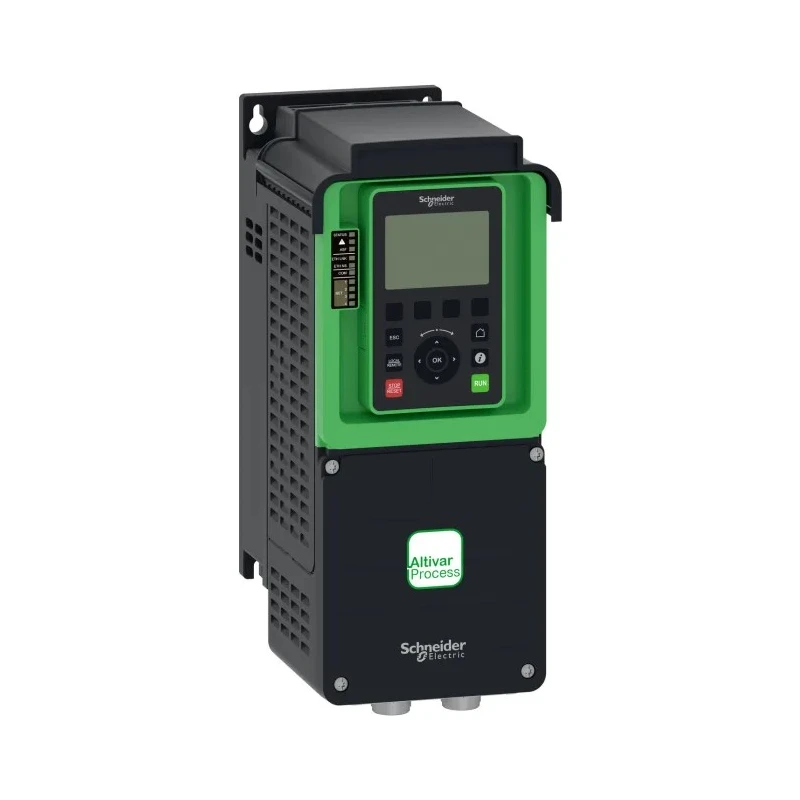

Schneider Electric Variable Speed Drive 4 kW, 3 Phase, Altivar Series 230V AC 18.7 A ATV630U40M3

Schneider Electric ATV630U40M3 variable speed drive is a premium Altivar Process ATV600 series device that offers precise motor control for 3-phase synchronous and asynchronous motors rated up to 4 kW. Operating at 230V AC supply and delivering a maximum output current of 18.7 A, this drive ensures reliable and efficient performance in industrial, process control, and automation environments.

The drive supports an output frequency range of 0.1 to 500 Hz, allowing for finely tuned speed regulation to meet diverse application demands. Its built-in communications include 3 RJ45 ports, comprising Ethernet and serial interfaces, enabling seamless integration with plant network and monitoring systems.

Designed for wall mounting with a vertical orientation and IP21 protection rating, the ATV630U40M3 provides a compact footprint with dimensions measuring 144 mm in width, 350 mm in height, and 203 mm in depth. The unit weighs approximately 4.6 kg, making it manageable for installation and maintenance.

This variable speed drive features an innovative 'Stop and Go' energy-saving function that can reduce energy consumption by up to 30% during standby operations, enhancing overall efficiency and reducing operational costs. It is capable of handling slight overloads up to 120% for power ratings up to 4 kW and significant overloads up to 150% for motors up to 3 kW, providing flexibility in demanding conditions.

Compliant with a comprehensive array of standards including ATEX, CE, CSA, cUL, EAC, IEC series, TUV, and UL 508C, the drive meets stringent safety and performance requirements. It is suitable for a variety of industrial sectors such as water and wastewater management, mining, minerals processing, oil and gas, and food and beverage production.

Suitable for 3-phase synchronous and asynchronous motors with power up to 4 kW. Supports output frequency range from 0.1 to 500 Hz for flexible motor speed control. Equipped with 3 RJ45 communication ports including Ethernet and serial interfaces.

Wall mountable with IP21 protection rating, designed for vertical installation. Operates efficiently with energy-saving Stop and Go function reducing standby consumption. Meets multiple international standards including ATEX, CE, CSA, UL 508C, and IEC series standards.

Wide operating temperature range from -15°C to 50°C for robust industrial use. Compact dimensions: 144 mm width, 350 mm height, 203 mm depth, and weighing 4.6 kg. Offers extensive applications in water treatment, mining, minerals, oil and gas, and food and beverage sectors.

The Schneider Electric Altivar ATV630U40M3 drive provides advanced motor control solutions to optimize industrial system performance and energy efficiency, making it an essential component for modern automation and process control infrastructures. Explore other automation and control gear in the EnvMart catalog for comprehensive solutions.
