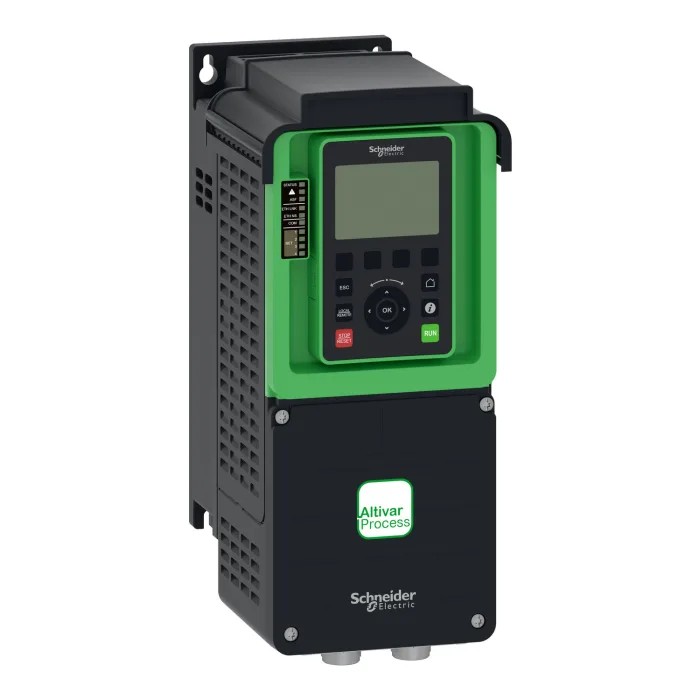

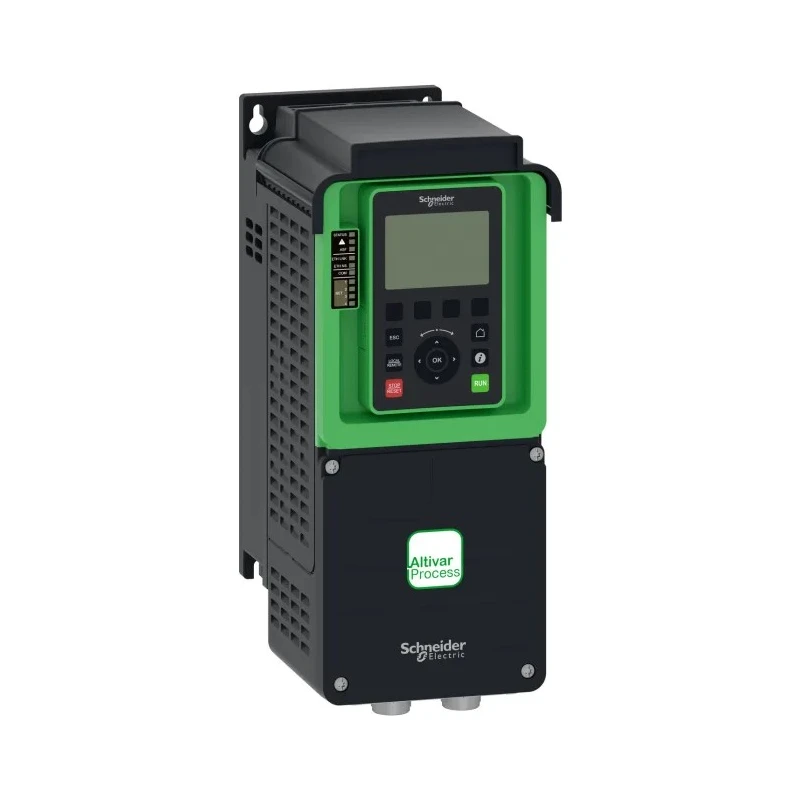

Schneider Electric Variable Speed Drive 1.5 kW 3 Phase 400V AC 4A IP21 Wall Mount ATV630U15N4

Schneider Electric ATV630U15N4 Variable Speed Drive delivers 1.5 kW power at 3 phase 400V AC with a maximum output current of 4A. It is designed for precise motor control in industrial automation systems, especially where energy efficiency and flexible connectivity are essential.

This Altivar Process ATV600 series drive supports both asynchronous and synchronous motors with overload capacities reaching up to 120% for 1.5 kW motors, and up to 150% for 0.75 kW motors. The drive incorporates three RJ45 communication ports including Ethernet and serial interfaces to integrate seamlessly into complex process control networks.

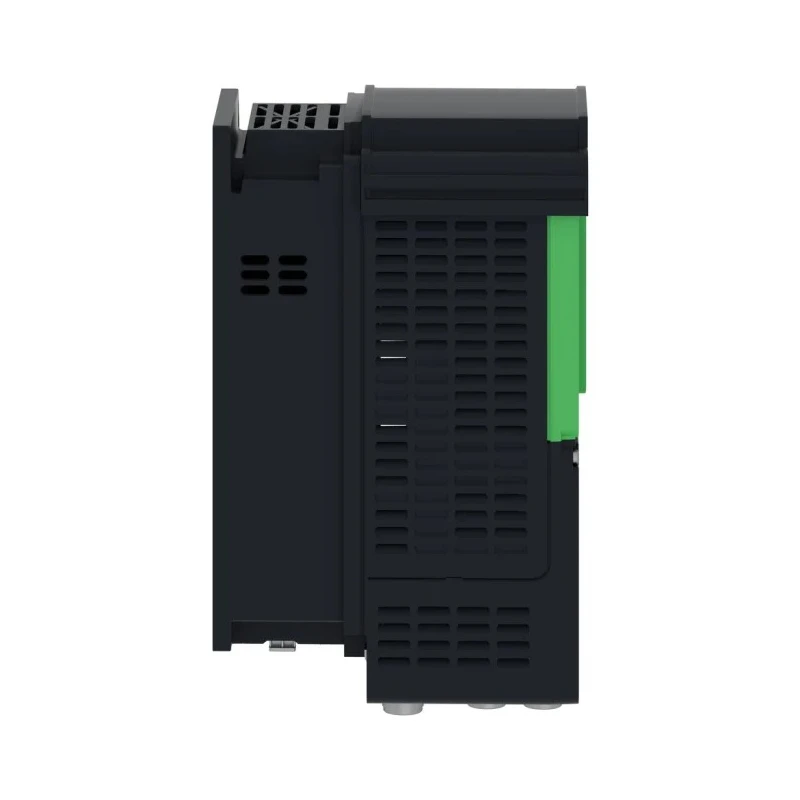

With an IP21 rating, this variable frequency drive is intended for wall mounting within industrial enclosures or control panels. Its compact form factor - 144 mm wide, 350 mm high, 203 mm deep - and a weight of 4.5 kilograms make it suitable for tight spaces while maintaining robustness.

The drive operates between 380 and 480 V AC, delivering output frequencies from 0.1 to 500 Hz, suitable for various industrial motor speeds. Its Stop and Go function allows energy savings of up to 30% during standby without additional costs, making it environmentally friendly and cost-efficient.

Applications for this variable speed drive are broad, including fluid management, water and wastewater treatment, mining, minerals processing, metals manufacturing, oil and gas operations, and food and beverage processing.

Additional accessories and options such as fan kits, graphic display terminals, I/O expansion modules, communication modules, and EMC input filters are available to customize the drive for specific application requirements.

Designed for 3-phase asynchronous and synchronous motors with power ratings up to 1.5 kW. Features up to 30% energy savings in standby with Stop and Go operation without added cost. Equipped with 3 RJ45 communication ports, including Ethernet and serial interfaces for flexible connectivity.

Supports applications requiring slight overloads up to 120% or significant overloads up to 150% at lower power ratings. IP21 rated with compact dimensions suitable for wall mounting in industrial environments. Operates within a voltage range of 380 to 480V AC for versatile power supply compatibility.

Extensive suitability for water treatment, mining, minerals, metals, oil and gas, and food and beverage industries. Includes options for accessories such as fan kits, graphic display terminals, and I/O expansion modules.

Compact size, weighing 4.5 kg and measuring 144 mm width, 350 mm height, and 203 mm depth. Explore more Schneider Electric products and advanced Variable Speed Drives at EnvMart for industrial, commercial, and process automation needs.
