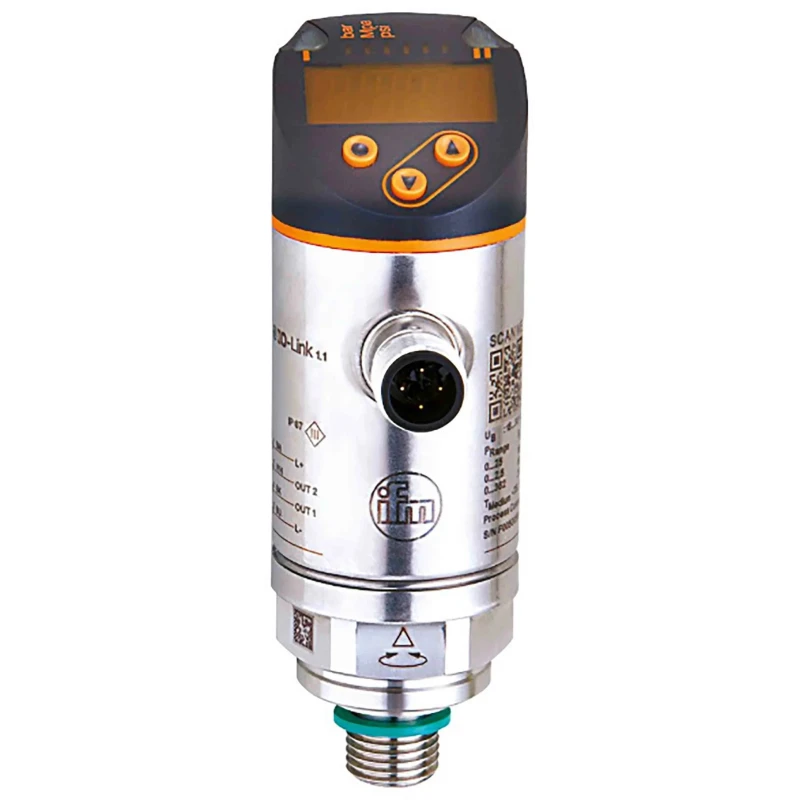

ifm electronic PN Series Pressure Sensor, PNP NO/NC, Analogue Output, 0.5 bar Relative Reading PN2569

ifm electronic PN2569 is a part of the PN Series Pressure Sensor family designed for precise pressure measurement in industrial and automation applications. This sensor provides PNP Normally Open and Normally Closed outputs along with a scalable analogue output, delivering a maximum pressure measurement of 0.5 bar with relative pressure reading capability.

The sensor is built with a fibreglass reinforced PBT GF30 and stainless steel housing, ensuring robust industrial durability. Its ceramic measuring element offers high stability and tolerance against overpressure, maintaining a low zero offset and minimal drift caused by ageing, overpressure, or temperature variations.

Designed to operate reliably within a wide temperature range from -25°C to 80°C, the sensor is protected by IP65 and IP67 ratings against dust and water ingress, making it suitable for harsh industrial environments.

This pressure sensor features fast response times of 3 ms and high accuracy of ±0.4%, enabling effective process control and system monitoring. With minimum and maximum supply voltages of 18 V and 30 V DC respectively, it fits well into existing control and monitoring circuits.

Compliance with standards such as DIN EN 61000-6-2, IEC 61131-9, UL approval number J003, and DIN EN 60068 series ensures industry-grade reliability and safety. The integrated large bright 4-digit alphanumeric display provides a clear visual indication of system pressure and switching states, which can be easily configured.

Features PNP Normally Open and Normally Closed analogue output for versatile pressure monitoring. Robust fibreglass reinforced PBT and stainless steel housing for industrial durability. Accuracy of ±0.4% and 3 ms response time for precise pressure sensing.

Operating temperature from -25°C to 80°C with IP65 and IP67 protection. Supply voltage range from 18 V minimum to 30 V DC maximum. Certified to DIN EN 61000-6-2, IEC 61131-9, UL J003, and DIN EN 60068 standards. Ceramic measuring element tolerates overpressure with low zero drift.

Large bright 4-digit alphanumeric display and LED visualisation of switching states. Suitable for industrial automation, HVAC, process control, and manufacturing sectors.

This pressure sensor is ideal for applications requiring reliable, precise pressure measurement and monitoring of fluid media within industrial processes. Its combination of durable materials, widescale electrical compatibility, and compliance with international standards makes it a trusted choice for engineers and technicians.
