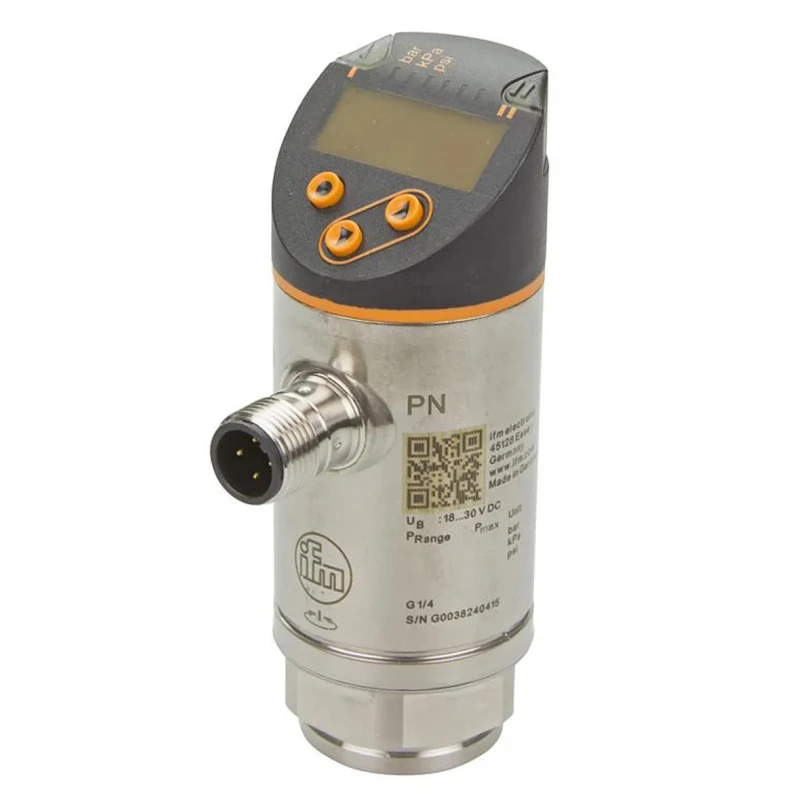

ifm electronic PN Series Pressure Sensor Analogue PNP NO/NC Output 0 bar Min, Relative Reading 400 bar Max PN3070

ifm electronic PN3070 Pressure Sensor Analogue combines advanced technology for industrial fluid pressure monitoring with analogue and PNP NO/NC switching outputs. It measures relative pressure from 0 bar minimum to 400 bar maximum with ±0.5% accuracy. The sensor quickly responds in 3 ms and supports supply voltages between 18V and 30V dc, making it adaptable for diverse automation systems.

The housing is constructed from fibreglass reinforced PBT GF30 and stainless steel, offering robustness and resistance to harsh environments. Its IP65 and IP67 ratings ensure dust and water protection, enabling use in demanding industrial applications including automation, manufacturing, hydraulics, and pneumatics.

A high-stability ceramic measuring element tolerates overpressure and minimises zero offset or drift due to aging or temperature variations. The sensor's large, bright 4-digit alphanumeric display allows easy system pressure visualization. Additionally, clear LED indicators help monitor switching states efficiently.

This device complies with multiple standards including DIN EN 60068-2-6, UL, and IEC 61131-9 among others, ensuring reliability and safety in professional settings. It supports IO-Link communication for advanced system integration and flexible configuration of independent set and reset points.

Typical applications include process monitoring, hydraulic pressure measurement, and industrial automation control systems where precise and reliable pressure sensing is essential.

This sensor features a highly stable ceramic measuring element tolerant to overpressure. It provides analogue output alongside PNP normally open/closed switching output. The device operates with a minimum supply voltage of 18V and maximum of 30V dc.

It has a fast response time of 3 milliseconds for accurate real-time pressure monitoring. The sensor's housing is made from fibreglass reinforced PBT GF30 and stainless steel for durability. Operating temperature ranges from -25°C to 80°C with IP65 and IP67 ingress protection ratings.

Visual switching states are indicated by clear LEDs and a bright 4-digit alphanumeric display. Suitable for fluid media measurement in industrial automation and control applications. Explore additional Pressure Sensors and sensors from ifm electronic in the EnvMart catalogue for efficient automation solutions.
