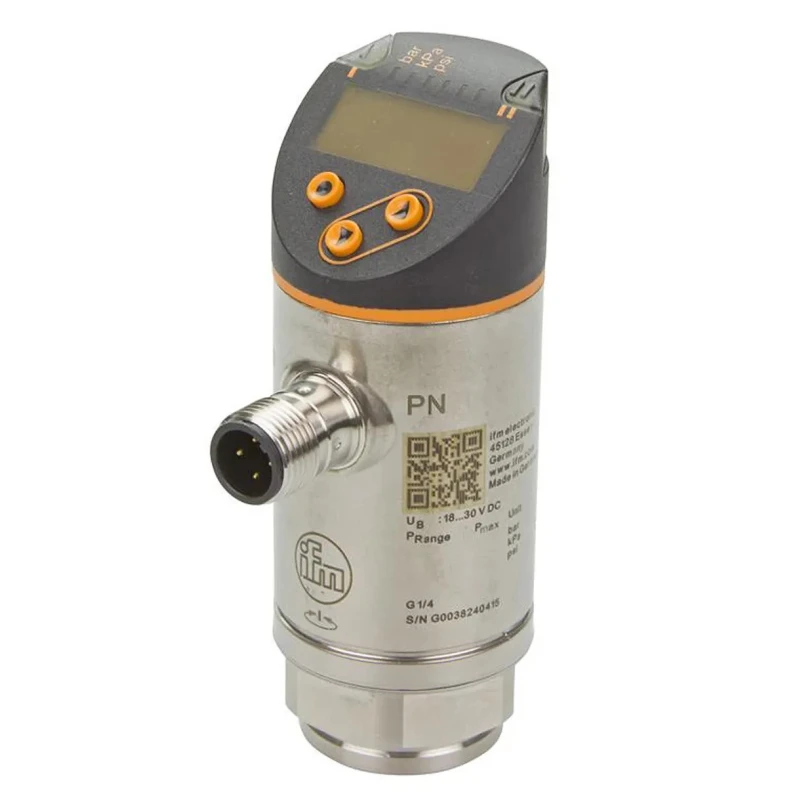

ifm electronic PN Series Pressure Sensor, Relative Reading 0 to 600 bar, 18-30 V DC, ±0.5% Accuracy PN7560

ifm electronic PN7560 Pressure Sensor is a high-precision device designed for relative pressure measurement ranging from 0 to 600 bar. Compatible with industrial automation and control systems, it operates on a supply voltage of 18 to 30 V DC and delivers ±0.5% accuracy, ensuring reliable process data.

The sensor features a fibreglass reinforced PBT GF30 and stainless steel housing that provides excellent resistance to harsh industrial conditions, validated through compliance with standards such as DIN EN 60068-2-27 and UL approval J003. Its IP65 and IP67 ingress protection ratings guarantee operation in environments exposed to dust and water.

Advanced features include IO-Link communication enabling integration with digital control systems and dual switched outputs (NC and NO) with customizable hysteresis, making it suitable for replacing traditional mechanical switches. The ceramic measuring element offers superior overload protection and stability against temperature changes and aging effects.

With a rapid 3 ms response time and a bright 4-digit alphanumeric display, system operators can continuously monitor pressure values, with visual feedback through red and green switching state LEDs. The device supports various industrial applications including hydraulic and pneumatic control, fluid pressure monitoring, HVAC systems, and manufacturing process automation.

Operating between -25°C and 80°C, the PN7560 sensor offers versatility across a broad range of environments. The flexible installation allows sensor rotation in any direction once fitted, enhancing ease of integration.

The sensor operates between 18V and 30V DC supply voltage. It features a fast 3 ms response time for real-time pressure monitoring. Robust IP65 and IP67 rated housing ensures durability in harsh industrial environments. Constructed with fibreglass reinforced PBT GF30 and stainless steel for long-lasting use.

Designed with high overload protection and a highly stable ceramic measuring element. Supports IO-Link communication and dual switched NC/NO outputs with adjustable hysteresis. Wide operating temperature range from -25°C to 80°C suits diverse industrial applications.

Equipped with a bright 4-digit alphanumeric display for pressure visualization and switching state indication.

This Pressure Sensor is well-suited for industrial automation, laboratory instrumentation, process control, hydraulic and pneumatic systems, and HVAC applications. Explore the broad range of ifm electronic sensors and control devices available on EnvMart to optimize your system performance.
