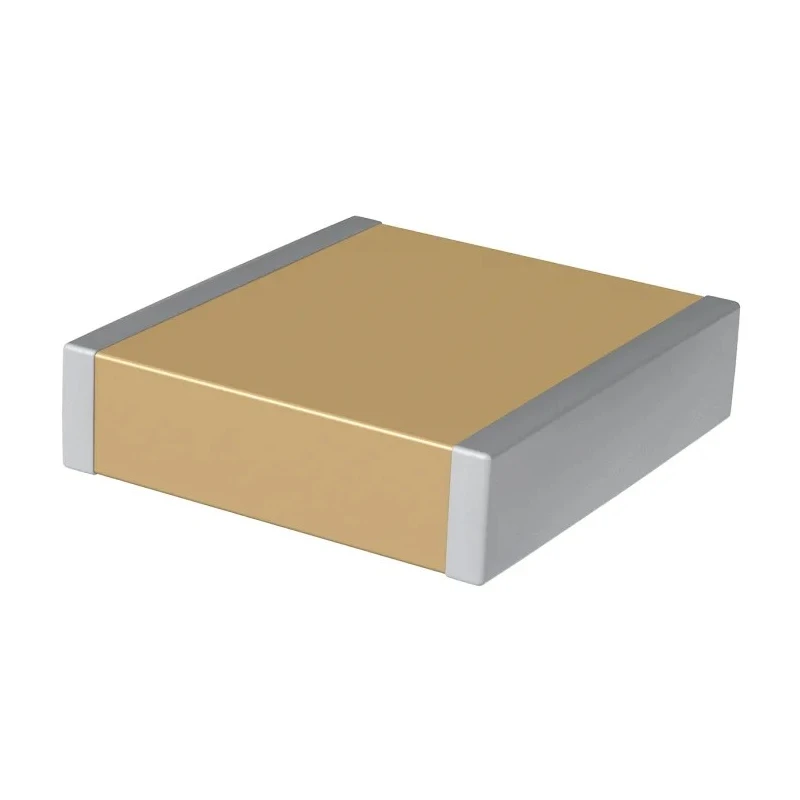

KEMET 68 nF Multilayer Ceramic Capacitor, 1kV dc, ±5 % Tolerance, Surface Mount, Tape & Reel Packaging C4540C683JDGACAUTO
Specifications
| Country of Origin | Mexico |
|---|---|
| Voltage | 1kV dc |
| Brand | KEMET |
| Height | 2.5mm |
| Length | 11.4mm |
| Model | C4540C683JDGACAUTO |
| Packaging | Tape & Reel |
| Width | 10.2mm |
| Mount Type | Surface |
| Construction | Stacked |
| Series | C |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Tolerance | ±5 % |
| Capacitance | 68nF |
| Minimum Operating Temperature | -55°C |
| Package/Case | 4540 |
| Dielectric | C0G |
| Automotive Standard | AEC-Q200 |
Key Features
- Constructed with a stacked design for enhanced durability.
- Features a surface mount package with dimensions 11.4mm length, 10.2mm width, and 2.5mm height.
- Manufactured with C0G dielectric for high stability and low loss.
- Rated for automotive standard AEC-Q200 qualification ensuring reliability.
- Operational temperature range from -55°C to 125°C for versatile applications.
- Termination type is solder suitable for surface mounting.
- Packaged in tape and reel format for automated assembly processes.
- Compliant with key standards including EIA 624, J-STD-020, and IPC-7351.
Product Description
KEMET C4540C683JDGACAUTO Multilayer Ceramic Capacitor offers a capacitance of 68 nF with a voltage rating of 1kV dc and a tight tolerance of ±5 %. It is designed for reliable surface mount technology applications with dimensions 11.4mm length, 10.2mm width, and 2.5mm height. The capacitor utilizes a stable C0G dielectric and features a robust stacked construction.
Certified to the strict automotive standard AEC-Q200, this capacitor is well suited for demanding industrial and automotive electronics environments. It operates efficiently within a temperature range of -55°C to 125°C, making it ideal for high-reliability use cases.
The device is terminated with solder for secure mounting on PCBs and is provided in tape and reel packaging, facilitating modern electronic assembly lines. Additionally, it conforms to various industry recognized standards such as EIA 624, J-STD-020, IPC-7351, EIA 481, and EIA 556, ensuring quality and compatibility.
Typical applications for this capacitor include switch mode power supplies, high-voltage coupling, DC blocking, and snubber circuits. It supports the evolving needs of power electronics, including inverters and DC-DC converters, by offering low ESR and inductance for improved ripple current capability.
Stacked construction ensures mechanical robustness. Surface mount type for automated PCB assembly. C0G dielectric provides excellent stability and low loss. Automotive standard AEC-Q200 qualified for automotive and industrial reliability.
Operational temperature from -55°C to 125°C for broad environmental tolerance. Solder termination type for durable PCB attachment. Tape and reel packaging for streamlined manufacturing processes. Complies with multiple international standards including EIA 624 and IPC-7351.
This high voltage Multilayer Ceramic Capacitor from KEMET is engineered to meet the strict demands of modern electronics manufacturing and performance. Explore additional KEMET MLCC components and related products in the EnvMart catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a capacitance of 68 nF.
It is rated for a voltage of 1kV dc.
The dimensions are 11.4mm in length, 10.2mm in width, and 2.5mm in height.
It operates efficiently within a temperature range of -55°C to 125°C.
It utilizes a stable C0G dielectric for high stability and low loss.
It is packaged in tape and reel format, facilitating automated assembly processes.
The termination type is solder, suitable for surface mounting on PCBs.
Yes, it is qualified to the automotive standard AEC-Q200, ensuring reliability in automotive applications.
It features a stacked construction for enhanced durability.
It complies with standards including EIA 624, J-STD-020, and IPC-7351.
Typical applications include switch mode power supplies, high-voltage coupling, DC blocking, and snubber circuits.
It has a tolerance of ±5 %.
