Siretta Multi-Band Antenna, Puck Form, SMA Male Connector, 850 MHz to 1.9 MHz, 2G (GSM/GPRS) & TANGO19/3M/SMAM/SMAM/S/S/20

Free Delivery in India | Lowest Global Shipping Charges

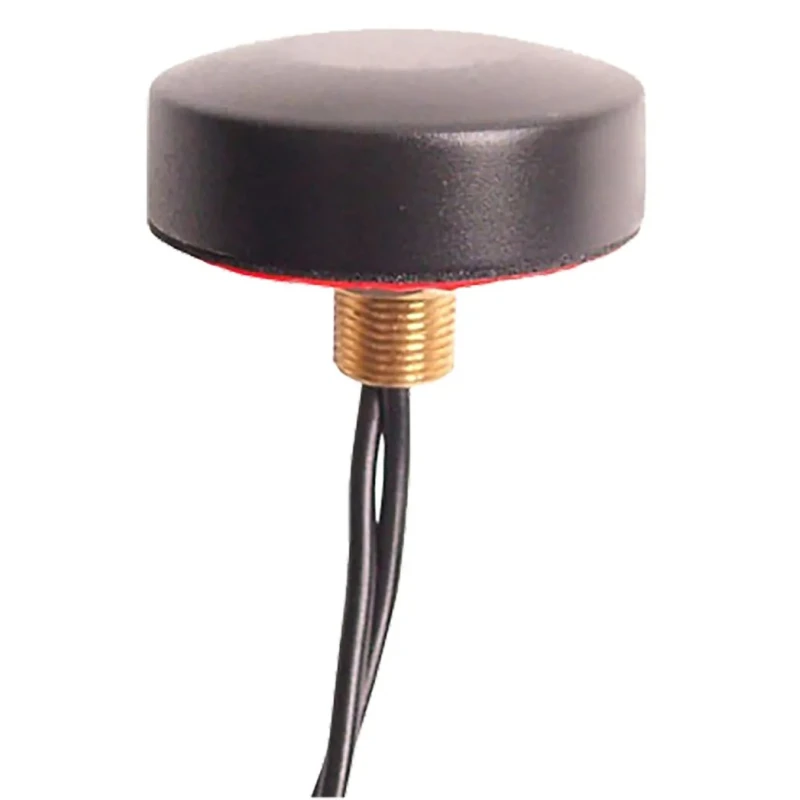

Siretta Multi-Band Antenna, Puck Form, SMA Male Connector, 850 MHz to 1.9 MHz, 2G (GSM/GPRS) & TANGO19/3M/SMAM/SMAM/S/S/20

Name: Siretta Multi-Band Antenna, Puck Form, SMA Male Connector, 850 MHz to 1.9 MHz, 2G (GSM/GPRS) & TANGO19/3M/SMAM/SMAM/S/S/20
Brand: Siretta
SKU: 196743



Category Multi-Band Antennas Brand Siretta Condition New

Specifications

Country of Origin	Taiwan
Brand	Siretta
Operating Temperature	-40 to +85°C
Dimensions	46 mm (diameter) x 14.5 mm (height)
Model	TANGO19/3M/SMAM/SMAM/S/S/20
Connector Type	SMA
Series	Tango 19
Gain	3dBi
Lead Length	3m
Impedance	50 Ω
Standards/Approvals	RoHS
Maximum Frequency	1.9MHz
Connector Gender	Male
Minimum Frequency	850MHz
Internal/External	External
RF Protocols	2G (GSM/GPRS), GPS
Antenna Physical Form	Puck
Antenna Mount Type	Through Hole/Bolted
Directivity	Omni-Directional
Antenna Internal Construction	Dieletric Antenna
Number of Bands	4
GSM Gain	2 dBi @ 850, 900 MHz / 1 dBi @ 1800, 1900 MHz
GPS Gain	28 dB
GSM VSWR	2.0:1
GPS VSWR	2.0:1
GSM Polarisation	Vertical
GPS Polarisation	RHCP

Key Features

The antenna supports 2G GSM/GPRS and GPS protocols with a frequency range from 850 MHz to 1.9 MHz.
Designed with an omni-directional dielectric antenna offering 3 dBi gain and 50 Ω impedance.
Includes two 3-meter RG174 coaxial cables with SMA male connectors for flexible installation.
Durably constructed with an IP65 rating, suitable for both indoor and outdoor use.
Operating temperature range from -40°C to +85°C enables reliable performance in harsh environments.
Compact dimensions of 46 mm diameter by 14.5 mm height support space-constrained or covert applications.
Polarization is vertical for GSM and right-hand circular polarization (RHCP) for GPS signals.
Mounts securely through-hole or bolted using the screw-threaded base and strong adhesive pad.

Product Description

Siretta TANGO19/3M/SMAM/SMAM/S/S/20 is a high-performance multi-band puck antenna designed for combined GSM/GPRS 2G and GPS applications. Featuring a compact form factor measuring 46 mm in diameter and 14.5 mm in height, this antenna integrates two separate antenna elements within one durable unit to minimize installation complexity and space requirements.

The device supports an operating frequency range from 850 MHz to 1.9 MHz for GSM and 1575.42 MHz for GPS. It offers a gain of 2 dBi at 850 and 900 MHz and 1 dBi at 1800 and 1900 MHz for GSM signals, alongside a 28 dB gain for GPS. Its omni-directional dielectric antenna construction ensures broad signal coverage, while the vertical polarization for GSM and RHCP polarization for GPS optimize signal reception and transmission.

Robustly built with an IP65 rating, this antenna is suitable for harsh environmental conditions, featuring operation from -40°C to +85°C. Installation is simplified with through-hole/bolted mounting and a screw-threaded base, complemented by a strong adhesive base for alternative mounting options. The antenna includes two 3-meter RG174 coaxial cables fitted with male SMA connectors to facilitate connectivity.

This model conforms to the Restriction of Hazardous Substances (RoHS) directive and is manufactured in Taiwan, Province of China. It is ideal for industrial, telecommunications, vehicular, security, and GPS tracking systems where compact yet reliable multi-band antenna performance is required.

The antenna supports dual GSM/GPRS and GPS frequency bands. IP65 rated housing protects against dust and water ingress. Compact puck form facilitates installation in confined spaces. Two 3-meter coaxial cables with SMA male connectors included.

Wide operating temperature range ensures performance in extreme conditions. Omni-directional antenna pattern provides consistent coverage. Vertical and RHCP polarizations optimize GSM and GPS signals respectively. Through-hole and bolted mounting options provide installation versatility.

Manufactured under RoHS compliance for environmental safety. Explore the full range of Multi-Band Antennas from Siretta on EnvMart for diverse industrial and commercial applications.
