Siretta Puck Multi-Band Antenna with FME Female Connector, 410 MHz to 5990 MHz, 5 dB Gain OSCAR1A/0.2M/FMEF/S/S/31

Category Multi-Band Antenna Brand Siretta Condition New

Specifications

Country of Origin Taiwan
Brand Siretta
Dimensions 205 mm height x 25 mm diameter
Operating Temperature Range -20 to +80 °C
Temperature range -30 to +70°C
Model OSCAR1A/0.2M/FMEF/S/S/31
Cable Low Loss CFD195 4.95 mm diameter
Connector Type FME
Gross Weight 250 g
Series Oscar 1A
Connector FME Female
Polarization Vertical
Gain 5dB
Lead Length 0.2m
Impedance 50 Ohm
Max Input Power 50 W
Mounting Method L-type Mount
Standards/Approvals RoHS
Maximum Frequency 5990MHz
Connector Gender Female
Minimum Frequency 410MHz
Internal/External External

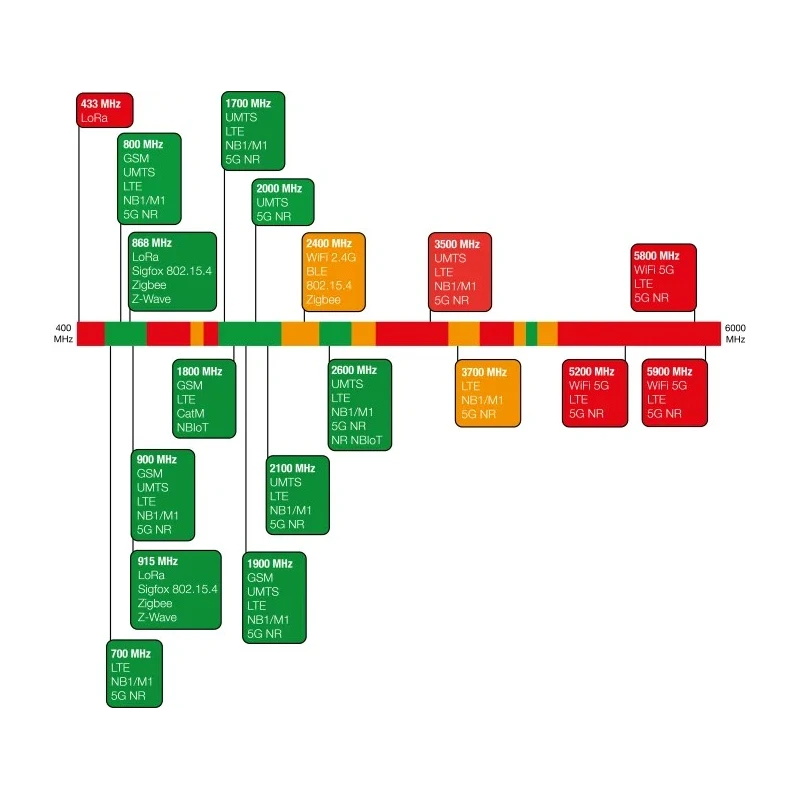

RF Protocols 4G (LTE Cat-M), ISM, LoRaWAN, 4G, WiFi, Bluetooth (BLE), 5G (LTE), IEEE 802.15.4, 5G, 4G (LTE), 2G (GSM/GPRS), ISM Band, Cat-M, 3G (UMTS), NB IoT, ZigBee
Antenna Physical Form Puck
Antenna Mount Type Screw
Directivity Omni-Directional
Polarisation Vertical (Omnidirectional)
Radiating element Monopole
Antenna Diameter 25 mm (cylinder)
Housing materials ABS (casing), Aluminium (radiator)
Quad Band GSM/GPRS 850, 900, 1800, 1900 MHz
3G 2.1 GHz

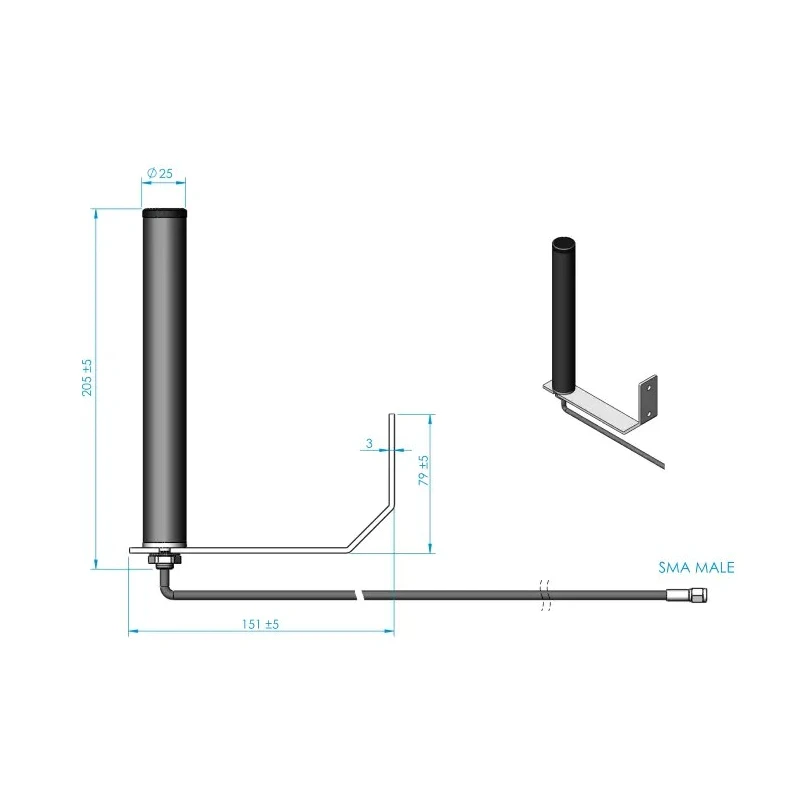

Antenna height 205 ±5 mm
Bracket length 151 ±5 mm
Bracket height 79 ±5 mm
Bracket thickness 3 mm

Key Features

  • Supports multiple RF protocols including 5G, 4G LTE, LoRaWAN, ISM, and Bluetooth.
  • Durable ABS casing and lightweight aluminium mounting bracket for outdoor use.
  • Equipped with a 0.2 m low loss cable terminated with an FME female connector.
  • Omni-directional 5 dB gain ensures reliable signal across broad frequency bands.
  • Suitable for IoT applications such as remote sensor monitoring and security systems.
  • Operates within -20 to +80 °C temperature range for all-weather performance.
  • Compact puck form with 205 mm height and 25 mm diameter dimensions.
  • Complies with RoHS environmental safety standards.

Product Description

Siretta OSCAR1A/0.2M/FMEF/S/S/31 is a high-performance puck-shaped multi-band antenna designed for outdoor use, supporting frequencies from 410 MHz up to 5990 MHz. It delivers a peak gain of 5 dB with omni-directional directivity, making it ideal for various wireless protocols including 5G NR, 4G LTE, NB IoT, LoRaWAN, ISM, Bluetooth (BLE), WiFi, ZigBee, and GSM/GPRS networks.

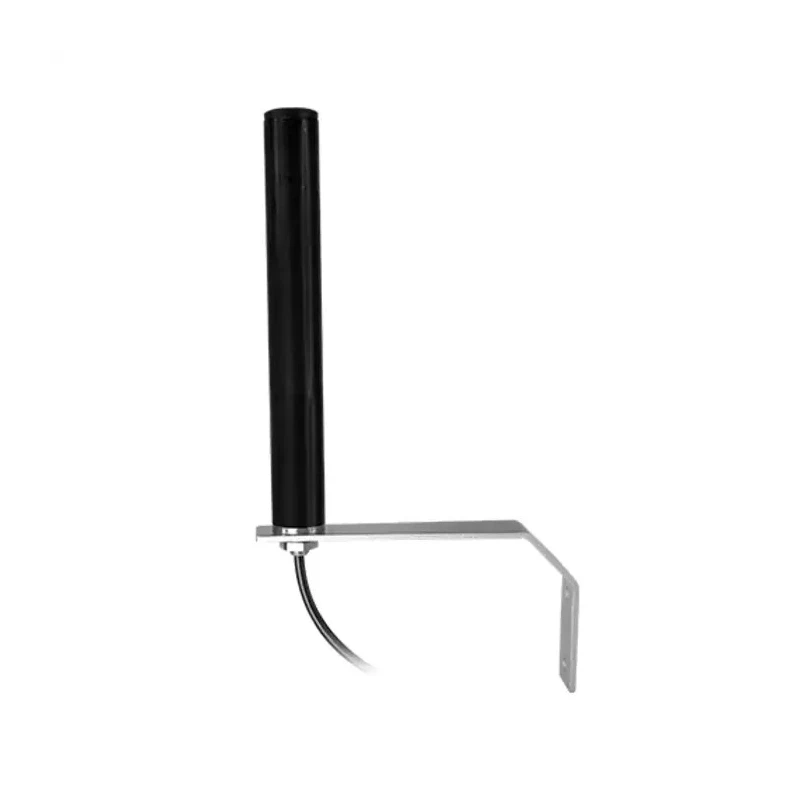

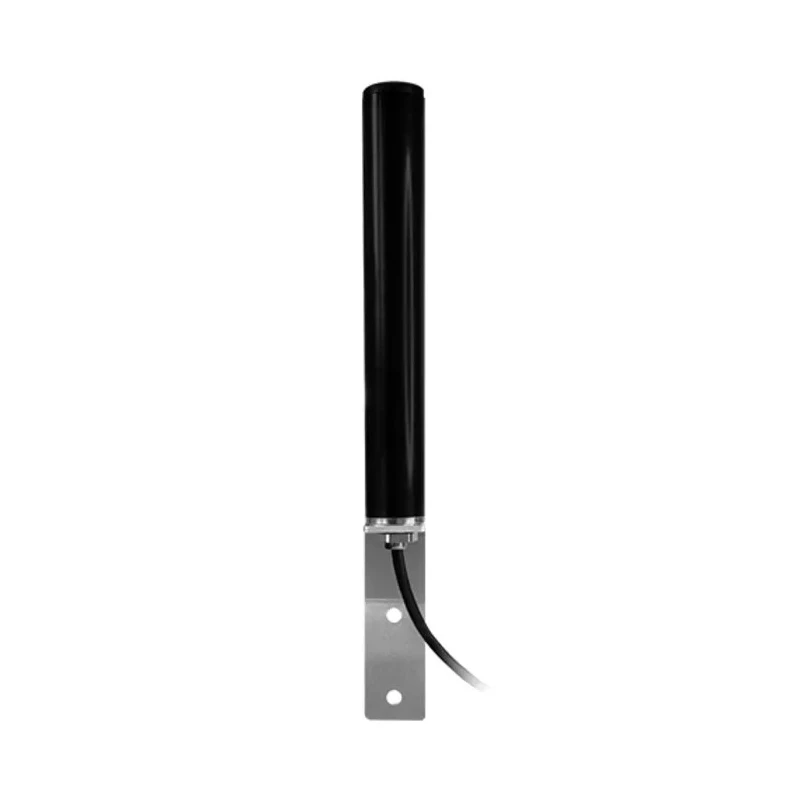

The antenna features a durable ABS plastic casing to protect the radiating element and a lightweight aluminium L-type mounting bracket for secure wall or bracket installation. The 0.2-meter low loss CFD195 cable ends with a female FME connector, facilitating reliable connection to devices requiring FME interface.

This model is engineered for versatile IoT applications such as remote sensor monitoring, security alarm systems, and other industrial, commercial, and agricultural systems needing consistent, all-weather wireless connectivity.

The design is ground plane independent and supports vertical polarization with an impedance of 50 Ohms, accommodating maximum input power up to 50 Watts. It operates within a temperature range of -20 to +80 degrees Celsius, suitable for diverse environmental conditions encountered in industrial and outdoor settings.

Supports wide range of wireless standards and bands including 2G, 3G, 4G, 5G, ISM bands, and LPWAN technologies. Rugged construction with ABS and aluminium materials ensures long-term durability. Compact with 205 mm height, 25 mm diameter and lightweight 250 g gross weight.

Provided with RoHS compliance for environmental safety. Lead cable with low-loss specification for minimized signal degradation. Wall or bracket mounted for flexible installation.

Choose the Siretta OSCAR1A/0.2M/FMEF/S/S/31 for reliable multi-band antenna solutions suitable for industrial telemetry, smart city, security, and IoT networks. Explore more products in Multi-Band Antennas from Siretta on EnvMart to support your communications infrastructure needs.

Siretta Puck Multi-Band Antenna with FME Female Connector, 410 MHz to 5990 MHz, 5 dB Gain OSCAR1A/0.2M/FMEF/S/S/31
Looking to purchase in bulk?
  • Purchase item in bulk quantity
  • Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model supports frequencies from 410 MHz to 5990 MHz, making it suitable for various RF protocols.

The antenna supports multiple wireless protocols including 5G, 4G LTE, LoRaWAN, ISM, Bluetooth, WiFi, and ZigBee.

The antenna has a height of 205 mm and a diameter of 25 mm, providing a compact puck form factor.

It is equipped with an FME female connector, facilitating reliable connection to compatible devices.

The maximum input power for this model is 50 Watts, accommodating various applications.

The antenna features a durable ABS casing and a lightweight aluminium mounting bracket, suitable for outdoor use.

It is designed for L-type mounting, allowing for secure wall or bracket installation.

The antenna has an impedance of 50 Ohms, which is standard for many RF applications.

Yes, it complies with RoHS environmental safety standards, ensuring it meets safety regulations.

This model is engineered for IoT applications such as remote sensor monitoring, security systems, and industrial telemetry.
