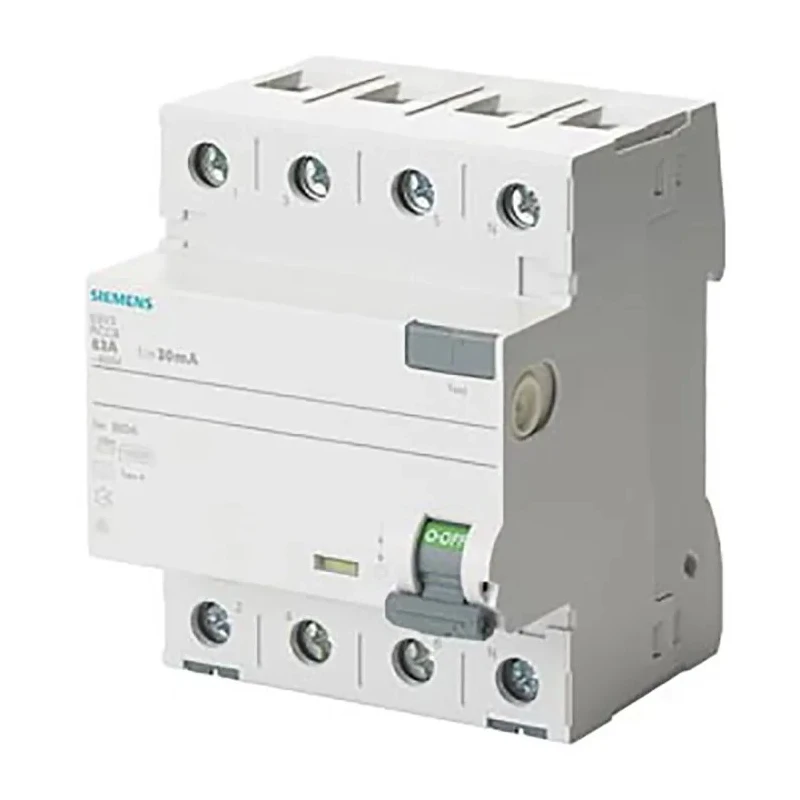

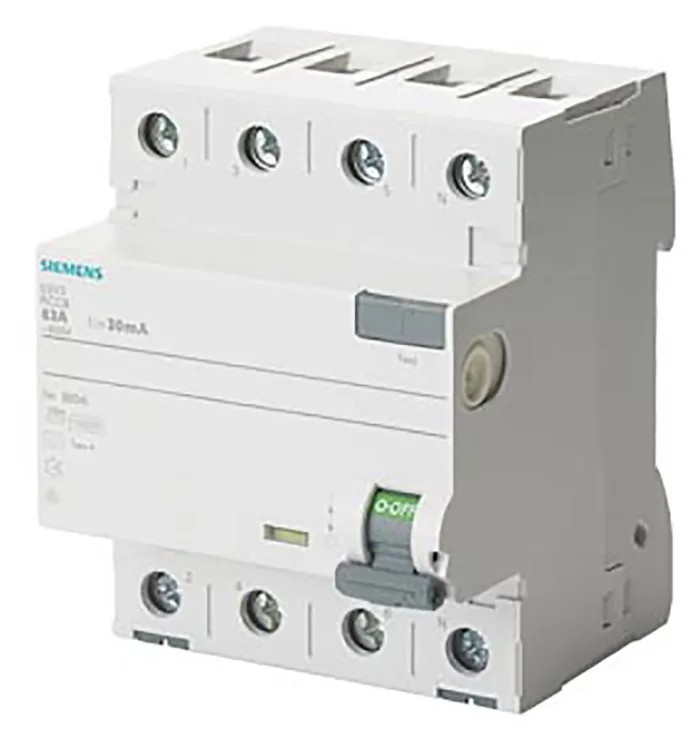

Siemens 5SV3 Series Residual Current Circuit Breaker 25A 4-Pole 300mA Type A 0.8kA 400V ac 5SV3642-6

Free Delivery in India | Lowest Global Shipping Charges

Siemens 5SV3 Series Residual Current Circuit Breaker 25A 4-Pole 300mA Type A 0.8kA 400V ac 5SV3642-6

Name: Siemens 5SV3 Series Residual Current Circuit Breaker 25A 4-Pole 300mA Type A 0.8kA 400V ac 5SV3642-6
Brand: Siemens
SKU: 196480
Price: 199.36 USD
Availability: InStock



Category Residual Current Circuit Breaker Brand Siemens Condition New

Specifications

Country of Origin	Germany
Range	SENTRON
Brand	Siemens
Height	90mm
Model	5SV3642-6
Depth	70mm
Enclosure	IP20
Width	72mm
Mount Type	DIN Rail
Current Rating	25A
Series	5SV3
Terminal type	Screw
Ambient Temperature	-25→+45 °C
Breaking Capacity	0.8kA
Number of Poles	4
Standards/Approvals	CCC, UKCA, CE, VDE, EAC
Rated AC Voltage	400V ac
Tripping Characteristics	Type A
Better World Claim	Extended Product Life
Tripping Mechanism	Electromagnetic
Reset Actuator Type	Toggle Switch
Trip Sensitivity	300mA
Break Time	Instantaneous
Earth Leakage Protection Type	Type A

Key Features

Rated current of 25 amperes suitable for a range of electrical circuits.
Four-pole configuration designed for three-phase electrical systems with neutral.
Type A tripping characteristic enables detection of both AC and pulsating DC residual currents.
Trip sensitivity of 300 mA ensures effective leakage current detection and protection.
Breaking capacity of 0.8kA supports reliable interruption during fault conditions.
Designed for DIN rail mounting facilitating easy installation in electrical panels.
Equipped with screw-type terminals for secure and reliable connections.
Rated AC voltage of 400V ac supports standard industrial voltages.

Product Description

Siemens 5SV3642-6 Residual Current Circuit Breaker (RCCB) from the 5SV3 series is engineered for personnel and fire protection in industrial, commercial, and residential electrical systems. Rated at 25A with a 4-pole design and 300 mA trip sensitivity, it effectively detects and interrupts earth leakage currents to prevent electrical hazards. This Type A RCCB is suitable for applications requiring detection of AC and pulsating DC leakage currents.

Mountable on standard DIN rails, the breaker features a robust screw terminal connection and instantaneous electromagnetic tripping mechanism for swift fault response. The device boasts a breaking capacity of 0.8kA and operates reliably at 400V AC, complying with multiple international standards including CCC, UKCA, CE, VDE, and EAC. Its compact dimensions (72mm width x 90mm height x 70mm depth) allow efficient use of panel space.

The 5SV3 series prioritizes sustainability with silicone-free components and a product life exceeding 10,000 switching cycles. Its IP20 enclosure rating and ambient operating temperature range from -25 to +45 °C ensure safe and durable operation in diverse environments.

This RCCB is ideally suited for industrial automation, manufacturing plants, residential safety systems, and commercial electrical installations requiring reliable earth leakage protection and compliance with safety regulations.

Rated current 25A and 4 poles for multi-phase systems. Type A tripping characteristic sensitive to AC and pulsating DC currents. Trip sensitivity of 300 mA and breaking capacity of 0.8kA. Instantaneous electromagnetic trip mechanism for rapid fault clearance.

DIN rail mountable with screw terminals for secure installation. Compliance with CCC, UKCA, CE, VDE, and EAC standards ensures quality and safety. Compact size with 72mm width, 90mm height, and 70mm depth. Operating ambient temperature from -25 to +45 degrees Celsius.

Enclosure protection rated IP20 for safe use in protected environments. Extended equipment lifespan over 10,000 switching cycles supports long-term reliability. Explore the Siemens range of residual current devices for superior electrical safety solutions at EnvMart.
